AMPSEAL 16 Connectors Backshells
- AMP
- AMPSEAL 16
Product Features
-
Number of Positions : 2 | 3 | 4 | 6 | 8 | 12
-
Primary Product Color : Black
-
Protection & Strain Relief Accessory Type : Backshell
-
Primary Product Material : PA 66/6
-
Cable Exit Angle (°): 90
At a Glance

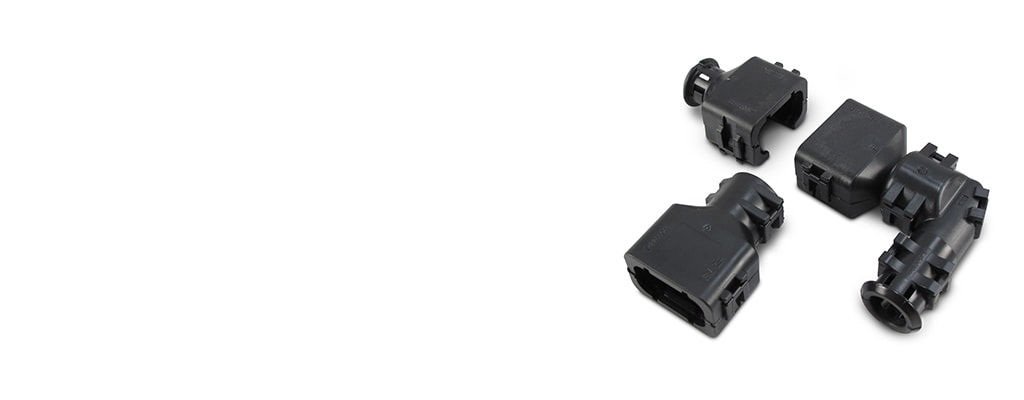

AMPSEAL 16 Connector Backshells
- Exit angles: 180° straight or 90° angled
- 90° style: elbow supports 360° rotation
- Exit styles: smooth wire exit with tie wrap slots or corrugated tubing exit for conduit routing
- Positions supported: 2, 3, 4, 6, 8, 12
- Material and safety: thermoplastic, UL 94 V-0
- Operating temperature range shown for this category: -40°C to 125°C
Key Benefits
AMPSEAL 16 Connector Backshells
- Better harness routing in tight packaging
The 90° backshell kit uses a rotating elbow so you can point the harness without forcing a sharp bend at the connector rear.
- Strain relief features at the rear wire exit
Smooth exit backshells include tie wrap slots that help stabilize the bundle near the connector.
- Conduit ready options for abrasion management
Corrugated tubing exit backshells accept a range of conduit sizes so conduit can nest into the backshell outlet.
- Options across the AMPSEAL 16 connector family
Backshell kits support common AMPSEAL 16 plug and cap arrangements in 2 to 12 positions.
- Simpler BOM control
The catalog highlights an Alias part numbering approach that helps identify plug or cap, position count, and conduit option.
Select a Backshell in 4 Steps
AMPSEAL 16 Connector Backshells
- Choose plug or cap backshell kit to match your connector half.
- Choose exit angle: 180° for straight routing, 90° for a turn in tight spaces.
- Choose exit style: smooth wire exit for tie wrap strain relief, or corrugated tubing exit for conduit based routing.
- Match positions and conduit size: 2 to 12 positions and NC or NW size based on your conduit.
Our backshells are available for all AMPSEAL 16 caps and plugs.
Request a Sample
AMPSEAL 16 Connector Backshells
Request Samples for Fit Checks
A sample backshell kit helps you confirm exit angle, clearance, conduit fit, and tie wrap placement before the harness is released to build. Select a part number, open the part detail page, and request samples when available.
Key Features
AMPSEAL 16 Connector Backshells
| Features | Details |
|---|---|
| Product | AMPSEAL 16 connector backshells |
| Exit angles | 180° straight and 90° angled options |
| 90° routing | 360° rotating elbow on the 90° design |
| Exit styles | Smooth wire exit with tie wrap slots or corrugated tubing exit |
| Connector compatibility | Plug and cap backshell kits; 2, 3, 4, 6, 8, 12 positions |
| Conduit sizes in Alias system | NC08/NW7.5, NC12/NW10, NC16/NW13, NC20/NW17 |
| Low profile option | Low profile 90° right angle backshell kit types listed in the catalog |
| Material and safety | Thermoplastic; UL 94 V-0 listed |
| Operating temperature | -40°C to 125°C [ -40 to 257 °F ] |
Real World Applications
AMPSEAL 16 Connector Backshells
Engine bay harness routing
Use angled or low profile backshell options when the harness needs an immediate turn and you want to reduce stress at the rear exit.
Frame rail and underbody junctions
Corrugated tubing exit backshells support conduit routing where splash, debris, and abrasion are common.
Transmission and hydraulic area harness nodes
Backshells can help stabilize wire bundles in high vibration areas where harness movement can load the rear exit.
Agriculture and construction equipment
Use backshell kits where washdown, dust, and vibration are part of daily duty cycle and cable routing needs to stay controlled.
Serviceable harness breakpoints
Smooth exit designs with tie wrap slots help keep bundles organized when connectors are unplugged and reconnected during service.
e
e
e
e
e
e
e
AMPSEAL 16 Connector with Coaxial Terminals
Frequently Asked Questions
AMPSEAL 16 Connector Backshells
Q: What is an AMPSEAL 16 connector backshell?
A: It is a snap on accessory that mounts to the rear of an AMPSEAL 16 connector and helps guide the harness exit. Smooth exit designs include tie wrap slots, and corrugated exits support conduit based routing.
Q: What is the difference between 180° and 90° backshell kits?
A: 180° kits route the harness straight out of the connector rear. 90° kits route the harness to the side and use an elbow design that supports 360° rotation.
Q: What does low profile mean for the 90° option?
A: The catalog lists a low profile right angle backshell kit type. Engineers typically use it when space around the connector is limited and the harness still needs a side exit.
Q: How do I choose smooth wire exit versus corrugated tubing exit?
A: Choose smooth wire exit when you are bundling wires with tie wraps near the connector. Choose corrugated tubing exit when the harness uses conduit for routing and abrasion management.
Q: What conduit sizes are supported?
A: The catalog Alias system lists NC08/NW7.5, NC12/NW10, NC16/NW13, and NC20/NW17 as conduit options. Match the backshell outlet to your conduit size.
Q: What temperature range applies to these backshells?
A: The TE category page lists an operating temperature range of -40°C to 125°C for this backshell family.
Q: Do backshells change ingress protection rating?
A: Backshells add rear side coverage and cable management features. Overall ingress protection depends on the full connector configuration and how rear protection is applied in the harness.
Q: How do I request samples for a backshell kit?
A: Select a backshell part number from the product list on this page. Open the part detail page and use the sample request option when it is available for that part.
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Protection & Strain Relief Accessory Type Backshell
Configuration Features
-
Number of Positions 2 | 3 | 4 | 6 | 8 | 12
Body Features
-
Primary Product Color Black
-
Primary Product Material PA 66/6
-
Cable Exit Angle (°) 90
Mechanical Attachment
-
Strain Relief Without
Usage Conditions
-
Operating Temperature (Max) 125 °C [ 257 °F ]
-
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Industry Standards
-
UL Flammability Rating UL 94V-0
Packaging Features
-
Packaging Method Package
