Flexible Power Cables: Smaller Bend Radius for High Performance in Tight Spots
Designed for routing in extremely tight areas with no wrinkling or cracking of the insulation, TE’s highly flexible, mechanically tough high voltage power cables can help you meet extreme application requirements and support a long life cycle in engine compartments.
High performance plus the ability to withstand extreme temperatures is a critical combination for high voltage power cables. TE’s highly flexible electrical wires provide an exceptional range of benefits, including helping ease stress on the contact and reducing the mating and de-mating forces normally associated with large-shell diameter circular connectors.
Featured High Power & High Voltage Cables

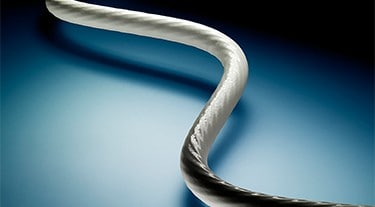

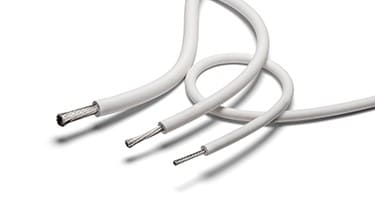

Raychem SHF260
SHF-260 highly flexible wire satisfies the need for high temperature and high performance in large-diameter power feeder applications where easy routing and durability are key.

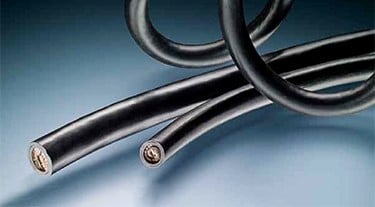

FDR25S
FDR25 is a flexible, diesel-resistant wire and cable jacket material, highly flame retardant and qualified to VG standards for superior performance in demanding environments.

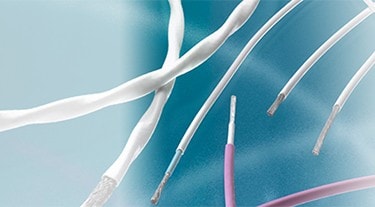

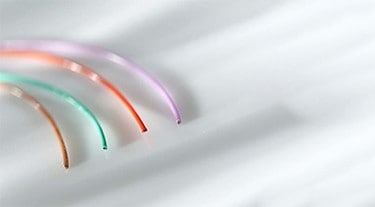

Hook Up Wires
TE hook up wires are lightweight, reliable, and abrasion-resistant. These are established and used extensively across harsh environment applications.

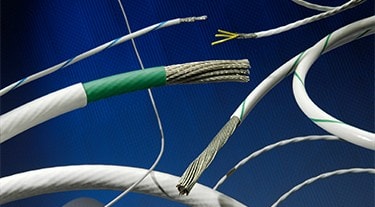

SPEC 80 FlexLine Wire
FlexLine wire (also known as SPEC 80) is insulated with a flexible modified radiation cross-linked ETFE polymer.FlexLine wire is used in a broad range of applications, from Hook-up wire to Power Cables.
SPEC 55 Wire
SPEC 55 wire is insulated with a modified radiation cross-linked ETFE polymer, offering resistance to electrical arc tracking in both wet and dry conditions and available in single or dual wall constructions for versatile applications.
SPEC 44 Wire
SPEC 44 wire has a dual wall construction which combines the outstanding physical and electrical characteristics of radiation crosslinked polyalkene with the excellent mechanical and chemical properties of radiation cross-linked PVDF.
Raychem SHF260 Highly Flexible Wire
Features
- Extruded fluoropolymer-based insulation rated to +260˚C
- Outstanding chemical and fluid resistance when tested to SAE-AS-22759/41
- Corona resistant when tested to ASTM D1868
- Arc track resistant to the current SAE-AS-22759 specification

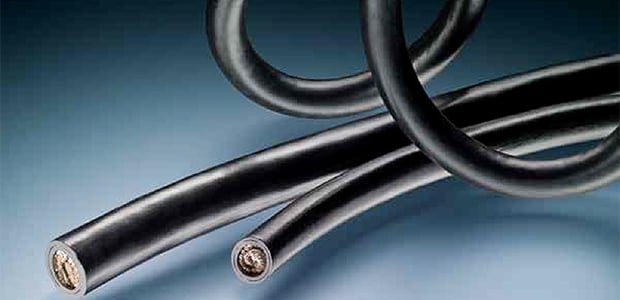

FDR25S Highly Flexible Wire
Features
- Small bend radius allows for tight-fit, complex routing
- Extruded polymer is notch and abrasion resistant for mechanical toughness
- Vibration stability helps support a long life cycle in engine compartments

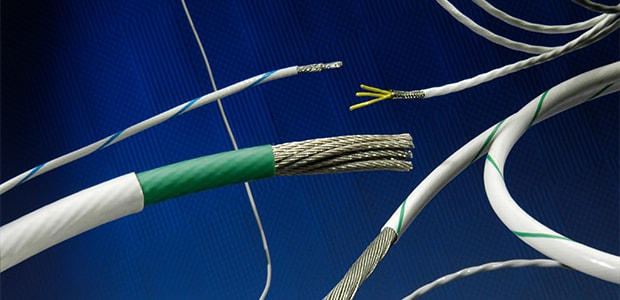

SPEC 80 FlexLine Wire
Features
- Broad range of conductor options, including tin, silver, or nickel plated copper and high-strength copper alloys, as well as aluminum for up to 40% weight savings
- Highly flexible cross-linked Ethylene Tetrafluoroethylene (ETFE) jackets for excellent thermal and environmental performance
