MCON 050

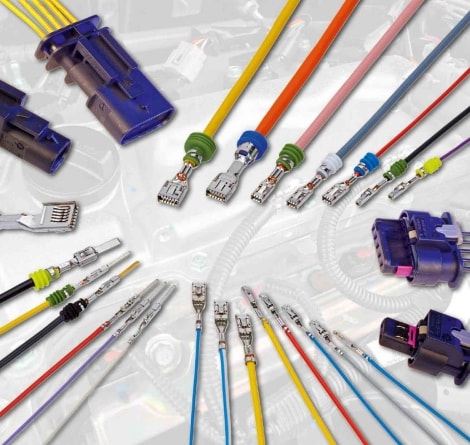

Automotive Connectors for Harsh and Exterior Applications

TE Connectivity (TE) manufactures the MCON Interconnection System for electrical and electronic applications in various harsh environment motor vehicle applications.

150°C

Up to 150°C for engine applications

48V

48V ready in the new generation of MCON connectors

IPx9k

Weather-proof rating for exterior applications

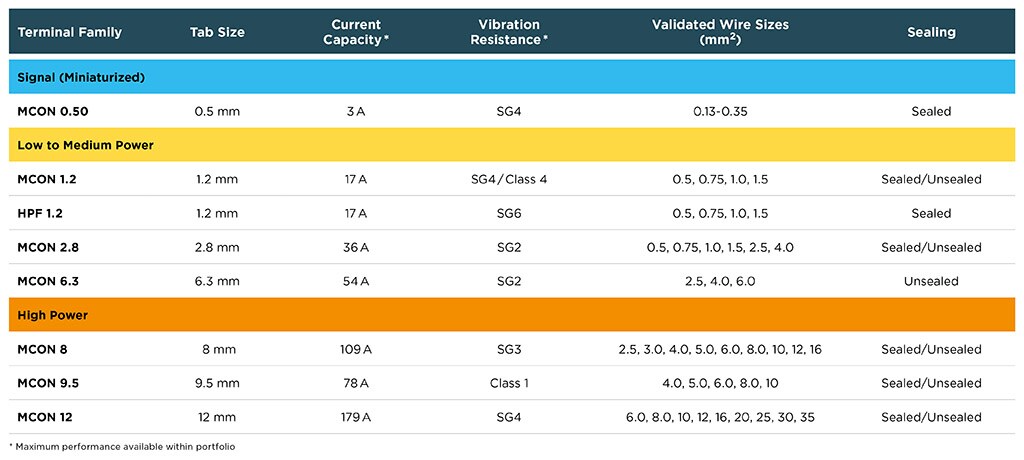

MCON automotive terminal family table

MCON Terminals

High Performance, High Reliability

MCON is a series of contact systems commonly used for electrical and electronic applications for passenger cars and commercial vehicles. The contact design meets standardized blade sizes and interface requirements of the automotive industry. Except the miniaturized MCON 0.50 contact system, all contacts follow the two-piece contact design strategy to separate the electrical from the mechanical performance.

The MCON contact series is available for sealed and unsealed applications. The new generation MCON connector system offers receptacle and tab housings with capability for waterproofing and resistance to conditions of extreme vibration. For a fast and economic termination process, TE Application Tooling offers a vast portfolio of application equipment.

Benefits

MCON Terminals
  • High performance copper alloy
  • Redundant contact point technology for higher reliability
  • High vibration level support to meet future requirements
  • Overstress protection of the contact springs
  • Contact box with polarization and secondary locking feature
  • Protected locking lance (Except MCON 0.50 – clean body version)
  • Sealed and unsealed version
  • -40°C up to 150°C temperature range
  • -40°C to 180°C with innovative surface technology available
  • Three directional secondary locking access
MCON 1.2 Clean Body Terminal
MCON 1.2 Clean Body Terminal
MCON 0.50 Terminal
MCON 0.50 Terminal

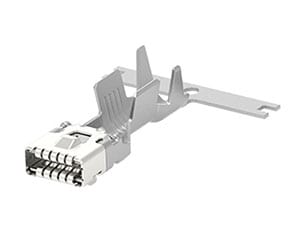

MCON 6.3 Clean Body Terminal
MCON 6.3 Clean Body Terminal

Find Receptacle and Tab Terminals

The MCON and HPF receptacle terminals and tabs are available in various sizes and configurations (clean body / locking lance).  Find the right size for your interconnection system needs.

Find Receptacle and Tab Terminals
orange bar

MCON Connectors

Designed to take on vibration and mechanical stress

The new generation MCON connector system offers receptacle and tab housings with capability for waterproofing and resistance to conditions of extreme vibration. The system is designed for electronic and electrical applications in motor vehicles, where vibrations and mechanical stress, in the long term, can affect the quality of the contact system.

Features

Housings and Connectors
  • CPA (Connector Position Assurance) capability
  • High reliability status - supported for long term use
  • High vibration level supported
  • Excellent design to avoid quality problems, while reducing manufacturing and service cost
  • Integrated secondary locking device delivered in pre-locked position
  • Wire-to-Wire sealed and unsealed connectors (SWS)
  • Polarization, several keyings
  • Modular housings possible due to same level of secondary lock
MCON 0.50 connector
MCON 0.50mm Connector
MCON 2 position automotive connector
MCON 2 Position Connector
MCON 1.2mm 2 row automotive connector
MCON 1.2mm 2-row Connector
1.2mm 3 position MCON connector
MCON 1.2mm 3 Position Connector

Find MCON Connectors and Housings

The MCON series of connectors are available in a variety of sizes and configurations.  Various configurations are available for temperatures up to 150°C.

Find MCON Connectors
orange bar
MCON Applications

Start Designing

Designing just got easier! Use the following link to access the product configurator to start designing connector systems such as the MCON series today.

The TE Product Configurator
  1. Configure Your Connectors Online (English)

Watch how TE's new interactive product configurator enables you to adapt and design products to your specifications as well as order samples directly.
