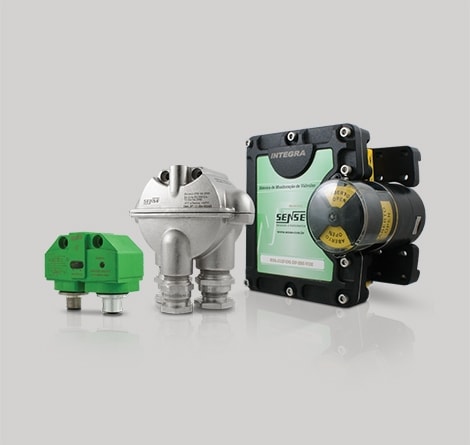

Rotary Valve Position Monitors
The monitoring system of rotary valves 90 degrees is designed for automating a mechanical device that allows local or remote signaling of the open or closed position of the valve.
The monitors were designed to signal and control rotating valves, which rotate 1/4 turn (90 °), basically consisting of two inductive or magnetic proximity sensors mounted on the same enclosure. For the monitor to be able to identify the open or closed position of the valve, we also provide a trigger, consisting of a flag that fits directly to the axis of the pneumatic actuator (NAMUR standard), and has two targets that actuate the monitor at both valve positions. The monitors are available in the conventional versions (point-to-point) or for industrial networks, AS-Interface, Devicenet or Profibus DP. A major advantage of the models for industrial networks is the possibility of the monitor transmitting a diagnosis, especially of short circuit or opening of the coil of the solenoid.
Product Features
Models
- Conventional or industrial network models
- General-purpose or explosive atmosphere applications
- Models certificates for gas or combustible dust atmosphere
Local signaling
- Signaling by color or open/closed write
- Incorporates metallic or magnetic activators
Contactless sensing
- High accuracy in position detection
- No moving parts
- Adjust without opening the housing
Connection box
- Easy connection of mains and solenoid cables
- Built-in internal derivator
- PG13.5 cable glands for network cables
- PG9 cable gland for solenoid cable
Solenoid valve
- General purpose os explosive atmosphere applications
- Attaches directly to the NAMUR standard actuator
- 1/4"BSP or 1/4"NPT pneumatic connection
Download our product guide covering the complete portfolio of valve monitoring and automation solutions. Includes rotary, linear, and diaphragm valve monitors, solenoid valves, digital and analog positioners, position transmitters, I/P converters, and pneumatic boosters with electrical configurations, Ex certifications, enclosure options, and ordering codes for every product family.
