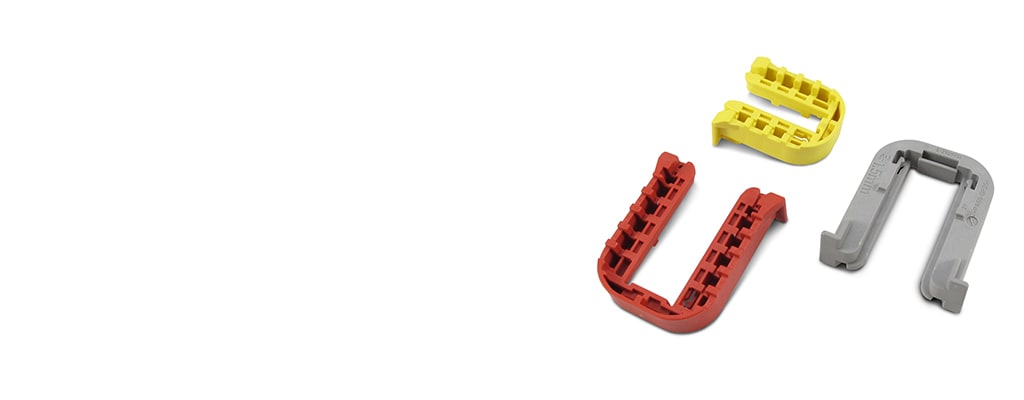

Heavy Duty Sealed Connector Series Fixing Slides
- AMP
- Heavy Duty Sealed Connector Series
Heavy Duty Sealed Connector Series fixing slides help mount connector housings fast and without extra hardware. The slides hold firmly on panels from 1.0 to 3.5 mm and come color-coded to simplify selection. Built from rugged, glass-filled thermoplastics, they handle –40 to 140 °C in tough vehicle environments. Use them across trucks, buses, construction, agriculture, marine, and more.
Product Features
-
Primary Product Color : Gray | Green | Natural | Orange | Red | Violet | Yellow
-
Primary Product Material : PA 6 GF | PBT GF | PBT GF20
-
Automotive Connector Accessory Type : Mounting Clip | Slide
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
Overview
Fast, secure panel mounting for commercial vehicles
Fixing Slides for Heavy Duty Sealed Connector Series
Electrical panels on trucks, buses, and off-highway machines face vibration, dust, and moisture. These connector fixing slides provide a tight, repeatable hold on the panel and keep the connector where it belongs. Color coding makes selection easier by panel thickness, and glass-filled thermoplastics support use in tough environments.
- Cuts install time: quick, tool-friendly mounting means fewer steps on the line.
- Holds under vibration: steady retention helps protect contacts and wiring.
- Easy selection: color coding maps to panel thickness to reduce errors.
- Flexible fit: compatible with multiple connector positions within the series.
- Serviceable: simple to swap when you need to service the harness.
- Built for harsh use: materials selected for vehicle heat, cold, and fluids.
Key Benefits
Heavy Duty Sealed Connector Series Fixing Slides
- Fast, tool-free mounting that helps reduce assembly time on the line.
- Consistent retention that supports stable connections in vibration and shock.
- Simple selection via color coding matched to panel thickness.
- Broad operating range (–40 to 140 °C) for harsh outdoor use.
- Flexible fit with connector families from 2 to 18 positions.
- Serviceable design for field replacement when needed.
Our Heavy Duty Sealed Connector Series Fixing Slides accommodate panel thicknesses from 1.0-3.5 mm.
Key Features
Heavy Duty Sealed Connector Series Fixing Slides
| Feature | Specification |
|---|---|
| Mounting Type |
Mounting Clip, Mounting Clips, Slide suitable for secure fixing. |
| Panel Thickness | 1.0–3.5 mm (color-coded options) |
| Material |
Constructed from PA6 GF, PBT GF, PBT GF20 for durability. |
| Color Options |
Available in Gray, Green, Natural, Orange, Red, Violet, and Yellow. |
| Operating Temperature |
Functional across a range of -40°C to 140°C (-40°F to 284°F). |
| Flammability Rating |
Meets UL 94V-0 standards for flammability resistance. |
| Panel Thickness |
Accommodates panel thicknesses from 1.0 mm to 3.5 mm, with future compatibility for JIS standard (1.6 mm). |
| Position Availability |
Compatible with 2, 3, 4, 6, 7, 8, 10, 12, 15, 16, and 18 position connectors. |
| Serviceable |
Yes |
Real World Applications
Heavy Duty Sealed Connector Series Fixing Slides
- Automotive Industry: Secures connectors in vehicle systems, helping maintain stable electrical connections under varying conditions.
- Industrial Machinery: Mounts connectors in heavy machinery, providing a reliable hold in environments subject to vibration and movement.
- Marine Equipment: Fixes connectors in boats and marine equipment, offering a secure attachment in moist and corrosive settings.
- Construction Equipment: Stabilizes connectors in construction machinery, protecting against dust, dirt, and mechanical stress.
- Agricultural Machinery: Provides secure mounting for connectors in agricultural equipment exposed to harsh outdoor environments.
- Mining Equipment: Used in mining machinery to secure connectors that are subject to rough handling and challenging conditions.
- Recreational Vehicles: Stabilizes connectors in ATVs and other recreational vehicles, enabling stable performance during off-road activities.
FAQ
Heavy Duty Sealed Connector Series Fixing Slides
Q: How do I choose the right fixing slide?
A: Match the slide color to your panel thickness (1.0–3.5 mm). The catalog lists options and part numbers by thickness (for example, 1.0 mm Natural; 1.6 mm Green; 3.0 mm Yellow).
Q: What temperatures can these fixing slides handle?
A: They operate from –40 to 140 °C, suitable for engine bays and exterior panels on heavy vehicles.
Q: Which connector sizes do they support?
A: They work with multiple 2–18 position housings within the Heavy Duty Sealed Connector Series.
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Automotive Connector Accessory Type Mounting Clip | Slide
Configuration Features
-
Number of Positions 2 | 3 | 4 | 6 | 7 | 8 | 10 | 12 | 15 | 16 | 18
Body Features
-
Primary Product Color Gray | Green | Natural | Orange | Red | Violet | Yellow
-
Primary Product Material PA 6 GF | PBT GF | PBT GF20
Usage Conditions
-
Compatible With Connector Style Housing For Male Terminals
-
Operating Temperature Range -40 – 140 °C [ -40 – 284 °F ]
Industry Standards
-
UL Flammability Rating UL 94V-0
Packaging Features
-
Packaging Quantity 1 | 400 | 1000 | 1200 | 1600
-
Packaging Method Bag | Box | Carton | Package
Other
-
Serviceable Yes
