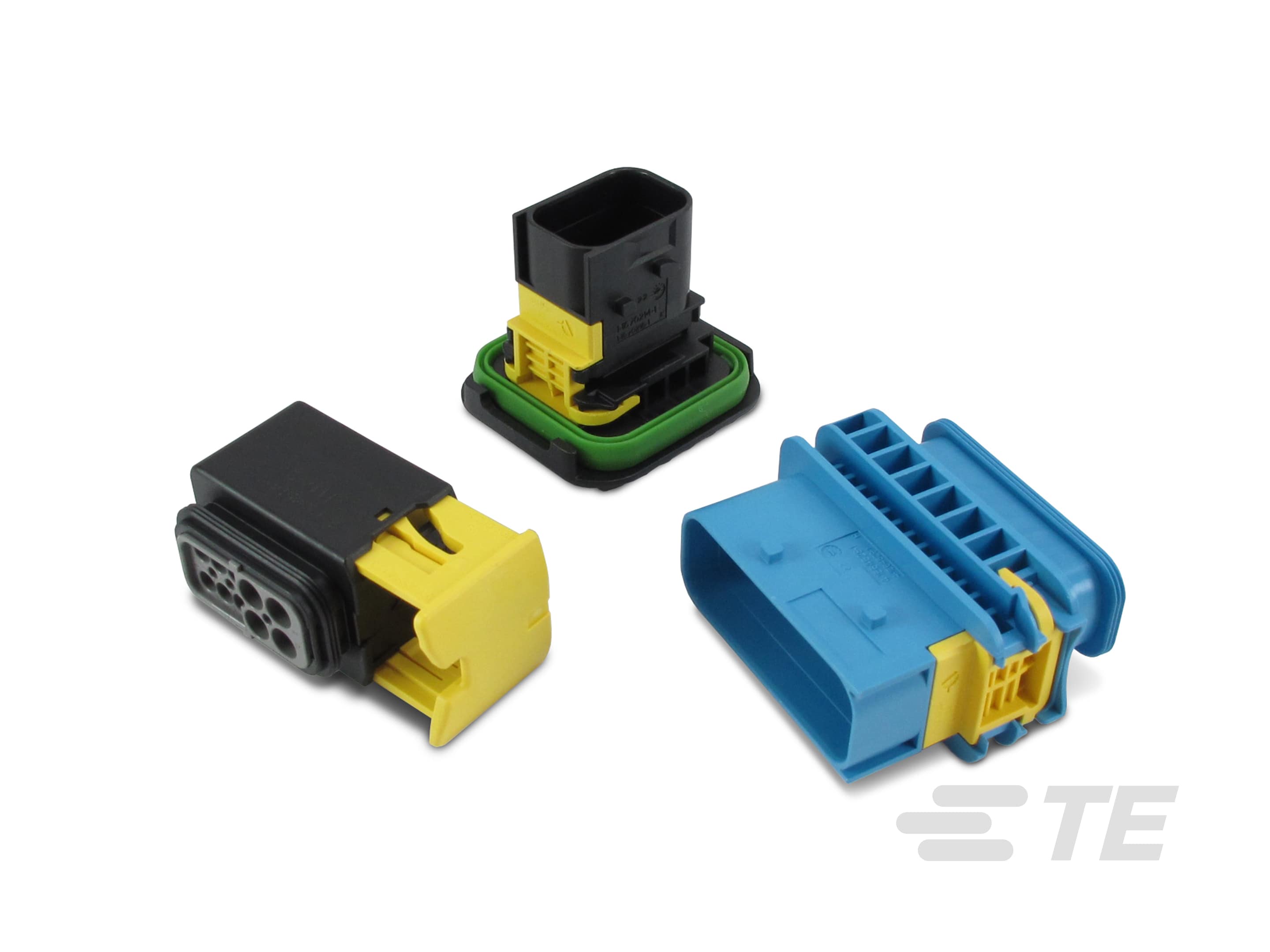

Heavy Duty Sealed Connector Series Housings

Heavy Duty Sealed Connector Series

Heavy Duty Sealed Connector Series Housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities. These wire to wire and wire to device connectors have a slide lock for mating. They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.

More Less

Product Features

Sealable: Yes

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Connector & Housing Type	Centerline (Pitch)	Mating Tab Width	Number of Rows	Primary Product Color	Connector & Contact Terminates To	Contact Current Rating (Max)	Circuit Application	Connector Mounting Type	Operating Temperature (Max)	Nominal Voltage Architecture	Connector Position Assurance Capable	Primary Locking Feature	Connector & Keying Code	Operating Temperature Range
18POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	3-1564412-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Male Terminals	4 mm	1.6 mm	2	Green	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
4POS,TAB 2.8X0.8,TAB HSG,ASSY,CODC Buy on te.com	3-1703808-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	6 mm	2.8 mm	2	Green	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
3POS,TAB 1.5X0.63,TAB HSG,ASSY Buy on te.com	4-1670730-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	4 mm	1.5 mm	1	Blue	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
3POS,TAB 1.5X0.63,TAB HSG,ASSY Buy on te.com	3-1670730-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	4 mm	1.5 mm	1	Green	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
2POS,TAB 2.8X0.8,TAB HSG,ASSY Buy on te.com	4-1703841-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	6 mm	2.8 mm	1	Blue	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
12POS,AMP MCP1.5K,REC HSG,ASSY,CODD Buy on te.com	4-1703639-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	4 mm	1.6 mm	2	Blue	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
12POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	2-1564414-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
4POS,TAB 2.8X0.8,TAB HSG,ASSY,CODB Buy on te.com	2-1703808-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	6 mm	2.8 mm	2	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
6POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	2-1703820-1	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
18POS,AMP MCP1.5K,REC HSG,ASSY Buy on te.com	3-1563759-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Female Terminals	4 mm	1.6 mm	2	Green	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
12POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	1-1564414-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4 mm	1.6 mm	2	Black	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
2POS,TAB 2.8X0.8,TAB HSG,ASSY Buy on te.com	2-1703841-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	6 mm	2.8 mm	1	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
6POS,AMP MCP2.8,REC HSG,ASSY,SEALED Buy on te.com	1-1418437-1	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	6 mm	2.8 mm	2	Black	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
16POS, MIXED,TAB HSG,ASSY Buy on te.com	2-1564407-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
8POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	2-1564416-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
8POS,AMP MCP1.5K,REC. HSG,CODB Buy on te.com	2-1418479-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
16POS, MIXED,TAB HSG,ASSY Buy on te.com	1-1564528-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
12POS,AMP MCP2.8,REC HSG,ASSY Buy on te.com	4-1670901-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	6 mm	2.8 mm	2	Blue	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
12POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	1-1564520-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4 mm	1.6 mm	2	Black	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
2POS,TAB 5.8X0.8,TAB HSG,ASSY Buy on te.com	1-1564544-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	9 mm	5.8 mm	1	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
12POS,AMP MCP1.5K,REC HSG,ASSY Buy on te.com	2-1703639-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
10POS, MIXED,TAB HSG,ASSY Buy on te.com	1-1564518-1	Product Drawing 3D PDF	Wire-to-Wire	10	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
7POS, MIXED,TAB HSG,ASSY,CODA Buy on te.com	1-1670214-1	3D PDF	Wire-to-Wire	7	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
18POS,AMP MCP1.5K,REC HSG,ASSY Buy on te.com	1-1563759-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Female Terminals	4 mm	1.6 mm	2	Black	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
3POS,TAB 1.6X0.6,TAB HSG,ASSY, Buy on te.com	4-1703843-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	4 mm	1.6 mm	1	Blue	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
3POS,TAB 1.5X0.63,TAB HSG,ASSY Buy on te.com	2-1670730-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	4 mm	1.5 mm	1	Gray	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
4POS,TAB 2.8X0.8,TAB HSG,ASSY, Buy on te.com	3-1703818-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	6 mm	2.8 mm	2	Green	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
18POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	1-1564526-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Male Terminals	4 mm	1.6 mm	2	Black	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
10POS, MIXED,REC HSG,ASSY Buy on te.com	1-1564514-1	Product Drawing 3D PDF	Wire-to-Wire	10	Housing for Female Terminals	4 mm, 6 mm	1.5 mm, 2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
6POS,AMP MCP1.5K,REC. HSG, COD Buy on te.com	2-1418469-1	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
10POS, MIXED,TAB HSG,ASSY Buy on te.com	1-1564516-1	Product Drawing 3D PDF	Wire-to-Wire	10	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
15POS, MIXED,REC HSG,SEALED,AS Buy on te.com	1-1563878-1	Product Drawing 3D PDF	Wire-to-Wire	15	Housing for Female Terminals	4 mm, 6 mm	1.5 mm, 2.8 mm	2	Black	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
2POS,TAB 2.8X0.8,TAB HSG,ASSY Buy on te.com	3-1703841-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	6 mm	2.8 mm	1	Green	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
15POS, MIXED,REC HSG,SEALED,ASSY Buy on te.com	2-1563878-1	Product Drawing 3D PDF	Wire-to-Wire	15	Housing for Female Terminals	4 mm, 6 mm	1.5 mm, 2.8 mm	2	Gray	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
8POS,TAB 2.8X0.8,TAB HSG,ASSY Buy on te.com	1-1564522-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	6 mm	2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
6POS,TAB 1.6X0.6,TAB HSG,ASSY, Buy on te.com	1-1703820-1	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	4 mm	1.6 mm	2	Black	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
12POS,AMP MCP1.5K,REC HSG,ASSY Buy on te.com	1-1703639-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	4 mm	1.5 mm	2	Black	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
2POS,TAB 2.8X0.8,TAB HSG,ASSY, Buy on te.com	1-1703841-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	6 mm	2.8 mm	1	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
16POS, MIXED,REC HSG,ASSY Buy on te.com	2-1564337-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Female Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Gray	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
4POS,TAB 5.8X0.8,TAB HSG,ASSY Buy on te.com	1-1564534-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	9 mm	5.8 mm	1	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
8POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	1-1564416-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4 mm	1.6 mm	2	Black	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
2POS,AMP MCP2.8,REC. HSG Buy on te.com	2-1418483-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	6 mm	2.8 mm	1	Gray	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
12POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	2-1564520-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
2POS,TAB 5.8X0.8,TAB HSG,ASSY Buy on te.com	1-1564546-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	9 mm	5.8 mm	1	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
16POS, MIXED,REC HSG,ASSY Buy on te.com	1-1564337-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Female Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Black	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
3POS MCP1.5k REC HSG CO MID POS CLOSED Buy on te.com	4-1418448-2	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4 mm	1.6 mm	1	Blue	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
6POS,AMP MCP1.5K,REC. HSG,CODC Buy on te.com	3-1418469-1	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4 mm	1.6 mm	2	Green	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
15POS, MIXED,TAB HSG,ASSY Buy on te.com	1-1564530-1	Product Drawing 3D PDF	Wire-to-Wire	15	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
18POS,AMP MCP1.5K,REC HSG,ASSY Buy on te.com	2-1563759-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Female Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
16POS, MIXED,REC HSG,ASSY Buy on te.com	4-1564337-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Female Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Blue	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
8POS,AMP MCP2.8,REC HSG,ASSY Buy on te.com	1-1670894-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	6 mm	2.8 mm	2	Black	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
4POS,TAB 2.8X0.8,TAB HSG,ASSY, Buy on te.com	1-1703818-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	6 mm	2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
4POS,TAB 2.8X0.8,TAB HSG,ASSY, Buy on te.com	1-1703808-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	6 mm	2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
16POS, MIXED,TAB HSG,ASSY,CODA Buy on te.com	1-1564407-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
2POS,AMP MCP6.3/4.8K,REC HSG,A Buy on te.com	2-1564542-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	9 mm	5.8 mm	1	Gray	-	40 A	Power	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
7 POS MIXED REC HSG CODA Buy on te.com	1-1418480-1	Product Drawing 3D PDF	Wire-to-Wire	7	Housing for Female Terminals	4 mm, 6 mm	1.5 mm, 2.8 mm	2	Black	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
4POS,TAB 2.8X0.8,TAB HSG,ASSY, Buy on te.com	2-1703818-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	6 mm	2.8 mm	2	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
18POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	2-1564526-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Male Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
2POS,AMP MCP6.3/4.8K,REC HSG,A Buy on te.com	1-1564542-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	9 mm	5.8 mm	1	Black	-	40 A	Power	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
2POS,AMP MCP2.8,REC. HSG Buy on te.com	3-1418483-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	6 mm	2.8 mm	1	Green	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
3POS AMP MCP1.5 REC. HSG COD D Buy on te.com	4-1418448-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4 mm	1.6 mm	1	Blue	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
3POS,TAB 1.6X0.6,TAB HSG,ASSY, Buy on te.com	1-1703843-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	4 mm	1.6 mm	1	Black	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
3POS,TAB 1.5X0.63,TAB HSG,ASSY Buy on te.com	1-1670730-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	4 mm	1.5 mm	1	Black	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
3 POS AMP MCP1.5k REC. HSG COD Buy on te.com	2-1418448-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4 mm	1.6 mm	1	Gray	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
3POS MCP1.5k REC HSG CO MID POS CLOSED Buy on te.com	2-1418448-2	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4 mm	1.6 mm	1	Gray	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
3POS,TAB 1.6X0.6,TAB HSG,ASSY, Buy on te.com	2-1703843-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	4 mm	1.6 mm	1	Gray	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
3 POS. AMP MCP1.5k REC.HSG CO Buy on te.com	1-1418448-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4 mm	1.6 mm	1	Black	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
2POS,AMP MCP2.8,REC. HSG,CODA Buy on te.com	1-1418483-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	6 mm	2.8 mm	1	Black	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
3POS MCP1.5k REC HSG CO MID POS CLOSED Buy on te.com	1-1418448-2	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4 mm	1.6 mm	1	Black	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
4POS,TAB5.8X0.8,TABHSG,ASSY,SLD Buy on te.com	1-1564536-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	9 mm	5.8 mm	1	Black	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	A	-40 – 140 °C
16POS, MIXED,TAB HSG,ASSY Buy on te.com	3-1564407-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Green	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
4POS,AMP MCP6.3/4.8K,REC HSG,ASSY Buy on te.com	2-1564330-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Female Terminals	9 mm	6.3 mm	1	Gray	-	40 A	Power	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
18POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	2-1564412-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Male Terminals	4 mm	1.6 mm	2	Gray	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
10POS, MIXED,REC HSG,ASSY Buy on te.com	2-1564514-1	Product Drawing 3D PDF	Wire-to-Wire	10	Housing for Female Terminals	4 mm, 6 mm	1.5 mm, 2.8 mm	2	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
10POS, MIXED,TAB HSG,ASSY Buy on te.com	2-1564518-1	Product Drawing 3D PDF	Wire-to-Wire	10	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
16POS, MIXED,TAB HSG,ASSY Buy on te.com	2-1564528-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
15POS, MIXED,TAB HSG,ASSY Buy on te.com	2-1564530-1	Product Drawing 3D PDF	Wire-to-Wire	15	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
4POS,TAB 5.8X0.8,TAB HSG,ASSY Buy on te.com	2-1564534-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	9 mm	5.8 mm	1	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
7POS, MIXED,TAB HSG,ASSY,CODB Buy on te.com	2-1670214-1	3D PDF	Wire-to-Wire	7	Housing for Male Terminals	4 mm, 6 mm	1.6 mm, 2.8 mm	2	Gray	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
3POS,TAB 1.6X0.6,TAB HSG,ASSY, Buy on te.com	2-1703843-2	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	4 mm	1.6 mm	1	Gray	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	B	-40 – 140 °C
3P CAN CONNECTOR, RECEPTACLE Buy on te.com	2278730-1	3D PDF	Wire-to-Wire	3	Housing for Male Terminals	4 mm	1.5 mm	2	Black	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V	No	On the Terminal	A-B-C	-40 – 140 °C
3POS MCP1.5k REC HSG CO MID POS CLOSED Buy on te.com	3-1418448-2	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4 mm	1.6 mm	1	Green	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
8POS,AMP MCP1.5K,REC. HSG Buy on te.com	3-1418479-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	4 mm	1.6 mm	2	Green	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
4POS,AMP MCP6.3/4.8K,REC HSG,ASSY Buy on te.com	3-1564330-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Female Terminals	9 mm	6.3 mm	1	Green	-	40 A	Power	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
8POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	3-1564416-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4 mm	1.6 mm	2	Green	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
2POS,AMP MCP6.3/4.8K,REC HSG,ASSY Buy on te.com	3-1564542-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	9 mm	5.8 mm	1	Green	-	40 A	Power	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
2POS,TAB 5.8X0.8,TAB HSG,ASSY Buy on te.com	3-1564544-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	9 mm	5.8 mm	1	Green	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
8POS,AMP MCP2.8,REC HSG,ASSY Buy on te.com	3-1670894-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	6 mm	2.8 mm	2	Green	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
12POS,AMP MCP2.8,REC HSG,ASSY Buy on te.com	3-1670901-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	6 mm	2.8 mm	2	Green	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
12POS,AMP MCP1.5K,REC HSG,ASSY,CODC Buy on te.com	3-1703639-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	4 mm	1.6 mm	2	Green	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
6POS,TAB 1.6X0.6,PIN HSG,ASSY Buy on te.com	3-1703773-1	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	4 mm	1.6 mm	2	Green	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
3POS,TAB 1.6X0.6,TAB HSG,ASSY, Buy on te.com	3-1703843-2	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	4 mm	1.6 mm	1	Green	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	C	-40 – 140 °C
8POS,MIXED,REC HSG,ASSY,SLD Buy on te.com	3-2299782-1	Product Drawing 3D PDF	Cable-to-Cable	8	Housing for Female Terminals	6 mm, 9 mm	2.8 mm, 6.3 mm	2	Green	Wire & Cable	-	Power & Signal	Cable Mount (Free-Hanging)	-	-	No	On the Terminal	C	-40 – 140 °C
6POS,AMP MCP1.5K,REC. HSG,CODD Buy on te.com	4-1418469-1	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4 mm	1.6 mm	2	Blue	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
8POS,AMP MCP1.5K,REC. HSG Buy on te.com	4-1418479-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	4 mm	1.6 mm	2	Blue	-	20 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
7 POS MIXED REC HSG CODD Buy on te.com	4-1418480-1	Product Drawing 3D PDF	Wire-to-Wire	7	Housing for Female Terminals	4 mm, 6 mm	1.5 mm, 2.8 mm	2	Blue	-	40 A	Signal	Cable Mount (Free-Hanging)	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
18POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	4-1564412-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Male Terminals	4 mm	1.6 mm	2	Blue	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
10POS, MIXED,REC HSG,ASSY Buy on te.com	4-1564514-1	Product Drawing 3D PDF	Wire-to-Wire	10	Housing for Female Terminals	4 mm, 6 mm	1.5 mm, 2.8 mm	2	Blue	-	40 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
12POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	4-1564520-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4 mm	1.6 mm	2	Blue	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C
18POS,TAB 1.6X0.6,TAB HSG,ASSY Buy on te.com	4-1564526-1	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Male Terminals	4 mm	1.6 mm	2	Blue	-	20 A	Signal	Panel Mount	70 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 130 °C, 140 °C	12 V, 24 V, 42 V, 60 V	No	On the Terminal	D	-40 – 140 °C

Overview

Heavy Duty Sealed Connector Series Housings have a poka-yoke feature, L-shaped seal, and four keying options.

Series Overview

Accepts contact sizes 6.3/4.8K (up to 40 amps), 2.8 (up to 40 amps), and 1.5K (up to 20 amps)
6.00-0.20 mm²
2, 3, 4, 6, 7, 8, 10, 12, 15, 16, and 18 cavity arrangements
In-line or flange mount
Rectangular, thermoplastic housing
Slide lock for mating
Integrated secondary lock confirms contact alignment and retention
Meet CAN Bus protocol specifications according to SAE J1939 standard
Available accessories: Backshells, fixing slides, protection caps, blind plugs and sealing plugs

Heavy Duty Sealed Connector Series

Discover the Heavy Duty Sealed Connector Series
Heavy Duty Sealed Connector Series are for critical applications and are designed to withstand the harshest and most challenging environments. These rugged, thermoplastic connectors have a secondary lock with poka-yoke feature and can be used for in-line or flange mount applications.

FAQ

Frequently Asked Questions

Q: What is an Heavy Duty Sealed Connector ?

A: Our Discover the Heavy Duty Sealed Connectors Series are environmentally sealed connectors are designed for wire-to-wire and wire-to-device applications. The Discover the Heavy Duty
Sealed Connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for the Heavy Duty Sealed Connector Series?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector Shape Rectangular
Connector System Cable-to-Cable, Wire-to-Wire
Connector & Housing Type Housing for Female Terminals, Housing for Male Terminals
Sealable Yes
Connector & Contact Terminates To Wire & Cable
Primary Locking Feature Clean Body, Locking Lance, On the Terminal
Mixed & Hybrid Connector No, Yes

Configuration Features

Number of Positions 2, 3, 4, 6, 7, 8, 10, 12, 13, 15, 16, 18
Number of Rows 1, 2
Blank Cavity Position 0, 2

Electrical Characteristics

Operating Voltage (VAC) 42
Operating Voltage (VDC) 42, 60
Nominal Voltage Architecture (V) 12, 24, 32, 42, 60

Body Features

Cable Exit Angle 180°, 90°
Primary Product Color Black, Blue, Gray, Green, Red, Violet
Connector & Keying Code A, A-B-C, B, C, D, E, F

Contact Features

Contact Type Receptacle, Tab
Contact Size 1.5K, 1.6mm, 2.8mm, 4.8K, 5.8mm, 6.3K, 6.3mm
Mating Tab Width (mm) 1.2, 1.5, 1.6, 2.8, 5.8, 6.3
Mating Tab Width (in) .047, .059, .06, .063, .11, .228, .248, .25
Contact Current Rating (Max) (A) 10, 16, 20, 40

Mechanical Attachment

Mating Alignment With
Mating Alignment Type Keyed
Strain Relief Add By Accessory, Without
Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount
Terminal Position Assurance No, Yes

Housing Features

Housing Material PBT GF
Centerline (Pitch) (mm) 2.5, 4, 5, 6, 7.5, 9, 10
Centerline (Pitch) (in) .098, .157, .236, .295, .354, .394

Dimensions

Row-to-Row Spacing (mm) 1.5, 12, 13.55, 2, 2.54, 3, 5.5, 5.6, 6, 6.2, 6.3, 6.45, 6.5, 6.8, 6.9, 7.25, 7.5, 7.55, 7.6, 7.7, 7.9, 8.6, 9, 9.5
Row-to-Row Spacing (in) .059, .079, .1, .118, .217, .22, .236, .244, .248, .254, .256, .268, .272, .285, .295, .297, .299, .303, .311, .339, .354, .374, .472, .533
Product Length (mm) 25.7, 25.9, 27.6, 29.1, 32.6, 36, 37.5, 40.6, 42.5, 43, 44, 50.5, 52.6, 54.1, 62.5, 67.2
Product Length (in) 1.01, 1.08, 1.087, 1.146, 1.283, 1.417, 1.476, 1.598, 1.673, 1.693, 1.732, 1.988, 2.071, 2.13, 2.46, 2.461, 2.646
Product Width (mm) 18.5, 25.7, 27, 31.25, 39.8, 46.7, 47.05, 47.1, 48.1, 50.6, 53.1
Product Width (in) .728, 1.011, 1.012, 1.063, 1.567, 1.852, 1.854, 1.89, 1.894, 1.99, 1.992, 2.09
Connector Height (mm) 19, 27, 29.8, 30.75, 31.25, 39.8, 42.4, 46.7, 47.05, 47.1, 48.1, 50.6, 67.2
Connector Height (in) .748, 1.062, 1.063, 1.173, 1.211, 1.23, 1.56, 1.567, 1.66, 1.839, 1.852, 1.854, 1.894, 1.992

Usage Conditions

Operating Temperature (Max) (°C) 70, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140
Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284
Operating Temperature Range (°C) -40 – 140
Operating Temperature Range (°F) -104 – 284, -40 - 284, -40 – 284

Operation/Application

Circuit Application Power, Power & Signal, Signal

Industry Standards

UL Flammability Rating UL 94V-0
Compatible With Agency/Standards Products DIN IEC 512
Degree of Protection IP67, IP69K, IP6K7

Packaging Features

Packaging Method Box, Carton, Package
Packaging Quantity 1, 72, 80, 84, 105, 120, 128, 140, 144, 150, 168, 200, 210, 220, 230, 240, 250, 280, 300, 320, 380, 396, 400, 450, 600, 700

Other

Connector Position Assurance Capable No, Yes
Serviceable No, Yes

Reference Number

TE Internal Number CAT-H3399-CH8172

Related Materials

Catalog

Heavy Duty Sealed Connector Series (English) Heavy Duty Sealed Connector Series is designed to meet the rigorous demands of the commercial vehicle industry and off-road applications that require the highest standards of performance. English

Product Specifications

Heavy Duty Sealed Connector Series Specifications (English) This specification covers performance tests and quality requirements for Heavy Duty Sealed Connector Series.

Application Specifications

Heavy Duty Sealed Connector Series Application Specifications (English) This specification covers the requirements for the application of the Heavy Duty Sealed Connector Series.

Connector Selector

Connector Selector (English) The Connector Selector is a reference guide to TE Connectivity's (TE) Industrial & Commercial Transportation electrical connectors.

Flipbook Catalog

Industrial & Commercial Transportation - Terminals and Connectors (English) TE's Industrial & Commercial Transportation Terminals and Connectors flipbook catalog features AMPSEAL, AMPSEAL 16, Circular DIN, DEUTSCH, Heavy Duty Sealed Connector Series, LEAVYSEAL, and Superseal 1.0 connectors, contacts, tools, and accessories.

Heavy Duty Sealed Connector Series Housings

Product Features

Sealable: Yes

Overview

Series Overview

Heavy Duty Sealed Connector Series

FAQ

Frequently Asked Questions

Features

Product Type Features

Connector Shape Rectangular

Connector System Cable-to-Cable, Wire-to-Wire

Connector & Housing Type Housing for Female Terminals, Housing for Male Terminals

Sealable Yes

Connector & Contact Terminates To Wire & Cable

Primary Locking Feature Clean Body, Locking Lance, On the Terminal

Mixed & Hybrid Connector No, Yes

Configuration Features

Number of Positions 2, 3, 4, 6, 7, 8, 10, 12, 13, 15, 16, 18

Number of Rows 1, 2

Blank Cavity Position 0, 2

Electrical Characteristics

Operating Voltage (VAC) 42

Operating Voltage (VDC) 42, 60

Nominal Voltage Architecture (V) 12, 24, 32, 42, 60

Body Features

Cable Exit Angle 180°, 90°

Primary Product Color Black, Blue, Gray, Green, Red, Violet

Connector & Keying Code A, A-B-C, B, C, D, E, F

Contact Features

Contact Type Receptacle, Tab

Contact Size 1.5K, 1.6mm, 2.8mm, 4.8K, 5.8mm, 6.3K, 6.3mm

Mating Tab Width (mm) 1.2, 1.5, 1.6, 2.8, 5.8, 6.3

Mating Tab Width (in) .047, .059, .06, .063, .11, .228, .248, .25

Contact Current Rating (Max) (A) 10, 16, 20, 40

Mechanical Attachment

Mating Alignment With

Mating Alignment Type Keyed

Strain Relief Add By Accessory, Without

Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount

Terminal Position Assurance No, Yes

Housing Features

Housing Material PBT GF

Centerline (Pitch) (mm) 2.5, 4, 5, 6, 7.5, 9, 10

Centerline (Pitch) (in) .098, .157, .236, .295, .354, .394

Dimensions

Row-to-Row Spacing (mm) 1.5, 12, 13.55, 2, 2.54, 3, 5.5, 5.6, 6, 6.2, 6.3, 6.45, 6.5, 6.8, 6.9, 7.25, 7.5, 7.55, 7.6, 7.7, 7.9, 8.6, 9, 9.5

Row-to-Row Spacing (in) .059, .079, .1, .118, .217, .22, .236, .244, .248, .254, .256, .268, .272, .285, .295, .297, .299, .303, .311, .339, .354, .374, .472, .533

Product Length (mm) 25.7, 25.9, 27.6, 29.1, 32.6, 36, 37.5, 40.6, 42.5, 43, 44, 50.5, 52.6, 54.1, 62.5, 67.2

Product Length (in) 1.01, 1.08, 1.087, 1.146, 1.283, 1.417, 1.476, 1.598, 1.673, 1.693, 1.732, 1.988, 2.071, 2.13, 2.46, 2.461, 2.646

Product Width (mm) 18.5, 25.7, 27, 31.25, 39.8, 46.7, 47.05, 47.1, 48.1, 50.6, 53.1

Product Width (in) .728, 1.011, 1.012, 1.063, 1.567, 1.852, 1.854, 1.89, 1.894, 1.99, 1.992, 2.09

Connector Height (mm) 19, 27, 29.8, 30.75, 31.25, 39.8, 42.4, 46.7, 47.05, 47.1, 48.1, 50.6, 67.2

Connector Height (in) .748, 1.062, 1.063, 1.173, 1.211, 1.23, 1.56, 1.567, 1.66, 1.839, 1.852, 1.854, 1.894, 1.992

Usage Conditions

Operating Temperature (Max) (°C) 70, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140

Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284

Operating Temperature Range (°C) -40 – 140

Operating Temperature Range (°F) -104 – 284, -40 - 284, -40 – 284

Operation/Application

Circuit Application Power, Power & Signal, Signal

Industry Standards

UL Flammability Rating UL 94V-0

Compatible With Agency/Standards Products DIN IEC 512

Degree of Protection IP67, IP69K, IP6K7

Packaging Features

Packaging Method Box, Carton, Package

Packaging Quantity 1, 72, 80, 84, 105, 120, 128, 140, 144, 150, 168, 200, 210, 220, 230, 240, 250, 280, 300, 320, 380, 396, 400, 450, 600, 700

Other

Connector Position Assurance Capable No, Yes

Serviceable No, Yes
