Application
BATTERY SYSTEMS
Connectivity solutions that make EV batteries and fuel cells safer, more efficient, and longer-lasting.
Designing connectors for batteries and fuel cells requires a balance between mechanical, electrical, and thermal properties. Automakers and battery pack manufacturers need to find low-profile connectors that meet stringent requirements, with low resistance at the individual contact points to reduce power loss and heat.
TE Connectivity (TE) offers a full catalog of high-voltage cell and module connectivity, switching, and battery management system connector innovations that improve power-to-weight ratios, enhance safety, and enable overall state-of-health monitoring over the course of the car's lifetime.
PicoMQS Miniaturized Automotive Connector System
TE Connectivity’s (TE) automotive-grade PicoMQS miniaturized automotive connector system is the newest addition and solution to the successful NanoMQS and MQS product families, making it best-in-class for space constrained signal interfaces requiring optimized performance, minimized packaging and ease of manufacturing.
NanoMQS Miniaturized Automotive Connector System
Based on TE Connectivity’s (TE) highly successful MQS connector system, the NanoMQS connector system offers a pin pitch of 1.8mm enabling a PCB footprint reduction by up to 50%.

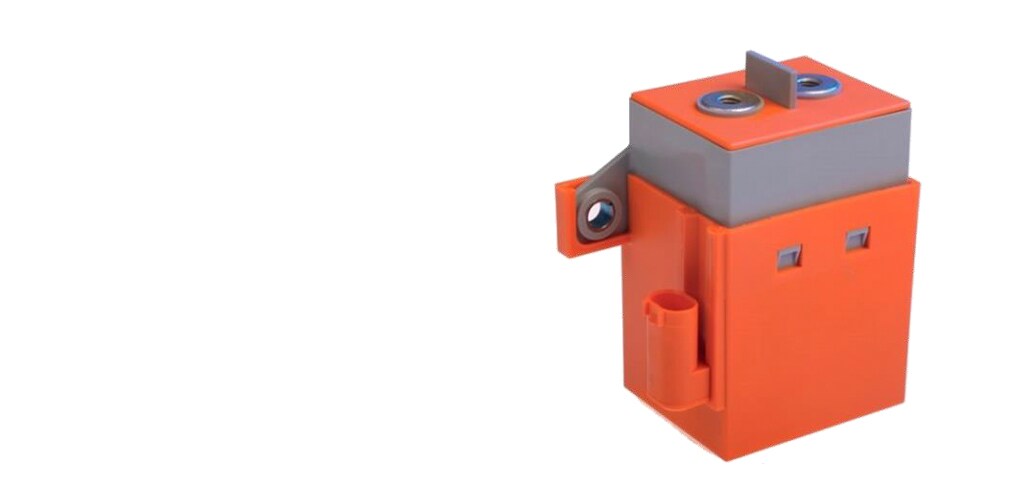

EVC 250 Contactor
Safe contactors for brighter future mobility. Our EVC 250 main contactor is designed for use in hybrid, full-electric and fuel-cell vehicles, and on-board charging systems. Not only does the EVC 250 work without pressurized contact chambers, but it also features larger contact gaps, optimized switching dynamics, high-performance arc suppressing magnets and other measures to effectively control the switching arc.

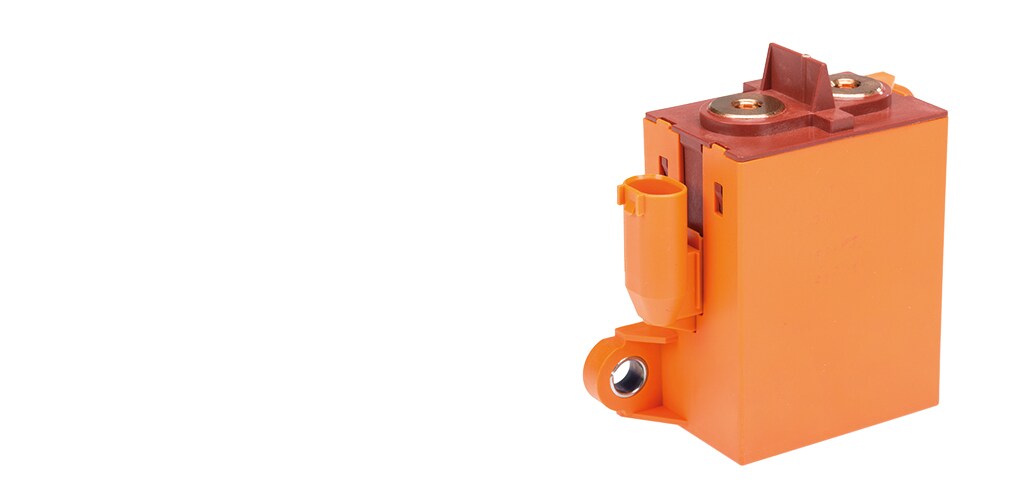

EVC 175 Contactor
Based on the proven technology of TE’s EVC 250 contactor, the EVC 175 contactor features a continuous current of 175A and a short circuit capability of 5kA, meeting medium power requirements. The EVC 175 is ideal for applications on hybrid vehicles, full-battery electric vehicles, fuel-cell cars and DC battery charging systems.
MQS High Voltage Sensing Detector
Used as a high voltage detection triggered by low voltage measurements in the battery disconnect unit.
ERNI MicroBridge Connectors
With a compact pitch of 1.27 mm, the MicroBridge product family is extremely robust and resists the vibrations in vehicles thanks to double-sided interlocking. The compact design is excellent for use in compact installation spaces.
