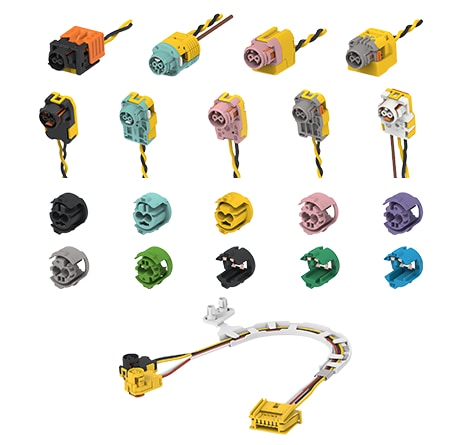

Automotive Squib Connectors for Reliable Safety Solutions
TE Connectivity's (TE) offers reliable retainer, pigtail, and cable assembly solutions designed for all interfaces, mating preferences, and features
TE delivers cost-effective and reliable solutions for major vehicle platforms, ensuring exceptional performance across diverse automotive applications. Our squib connector system has been extensively proven in the market, offering high durability to withstand challenging conditions such as vibration, heat, and assembly stress. Engineered to excel in harsh environments, TE’s products are built to meet high standards of reliability and performance. By combining system expertise with cutting-edge technology, TE provides top-tier SRS interconnect solutions that set the benchmark for safety and quality in the automotive industry.
APPLICATIONS
- Driver Airbag
- Passenger Airbag
- Hood Lifter
- Battery-Cut or Close
- Belt Pretensioner (Rear)
- Side Airbag (Rear)
- Side Airbag (Front)
- Knee Airbag
- Center Airbag
- Curtain Airbag
PRODUCT BENEFITS
- High-quality products are warranted by a fully automated production process
- Reliable availability supported by a global manufacturing footprint
- One-stop-shop solution offering tailored products, from components and pigtails to complete cable assemblies
- Extensive portfolio covering all industry interfaces, mating preferences, and features, providing customers with a wide range of options
MARKET COMPATIBILITY
- Fully compatible with the market AK-2 and AK-2 ESD interface
- Fully compatible with the market USCAR interface
Squib connectors are engineered with compact packaging to optimise space within vehicle assemblies, without compromising safety. With a focus on demanding safety requirements, exceptional reliability, and long-lasting durability, these solutions perform under the most rigorous conditions.
TE PRODUCT
|
INTERFACE
|
CODINGS
|
CROSS SECTION
|
MAIN FEATURES
|
AK2 |
I, II, III |
0.35mm2, 0.5mm2 |
CPA-controlled electrical monitoring. |
|
AK2 |
I, II, III |
0.35mm2, 0.5mm2 |
CPA-controlled electrical monitoring. |
|
AK2 |
I, II, III |
0.35mm2, 0.5mm2 |
Enhanced connection and monitoring with Squiblok mating. |
|
AK2 |
I, II, III |
0.35mm2, 0.5mm2 |
Enhanced connection and monitoring with Squiblok mating. |
|
USCAR |
W, X, Y, Z |
0.35mm2, 0.5mm2 |
CPA-controlled electrical monitoring as an option. |
|
USCAR |
W, X, Y, Z |
0.35mm2, 0.5mm2 |
CPA-controlled electrical monitoring as an option. |
|
USCAR |
W, X, Y, Z |
0.35mm2, 0.5mm2 |
Enhanced connection and monitoring with Squiblok |
|
USCAR |
W, X, Y, Z |
0.35mm2, 0.5mm2 |
Enhanced connection and monitoring with Squiblok |
|
AK-2 ESD |
IV, V |
0.35mm2, 0.5mm2 |
Integrated grounding. |
AK-2 CPA 90
AK-2 CPA 180
AK-2 Squiblok 90
AK-2 Squiblok 180
USCAR CPA 90
USCAR CPA 180
USCAR Squiblok 90
USCAR Squiblok 180
AK-2 ESD CPA 90This product table can only be viewed on desktop.
TE PRODUCT
|
INTERFACE
|
CODINGS
|
MAIN FEATURES
|
AK-2 |
I, II, III |
Available with and without shorting bar. |
|
USCAR |
W, X, Y, Z |
Interface without shorting bar. |
|
AK-1 |
A, B, C |
Available with and without shorting bar. |
Retainer AK-2
Retainer USCAR
Retainer AKIThis product table can only be viewed on desktop.
