Variable Speed Drives

TE’s robust connector family supports power lines for both wire-to-board and wire-to-wire applications.

Dynamic Series D-2970 is a compact 5-mm pitch wire-to-board PCB connector with field-installable, time-saving push-in clamp termination.

Eurostyle terminal block connectors feature various wire termination methods, including rising cage clamp, wire protector, spring, IDC, and crimp snap.

TE offers the most extensive line of Europa products in five pitches: 8 mm (.315”), 10 mm (.394”), 12 mm (.472”), 13.5 mm (.531”), and 14.5 mm (.571”). Two connection styles are available.

MicroSpeed power module is a 5-pin connector system with a contact pitch of 2.0 millimeters. The connector system is the complementary power component to the signal connectors of the MicroSpeed Connectors. It delivers high current-carrying capacity despite its small dimensions. These power modules are good choices for providing the power supply to such high-performing, compact elements as processors, LCD displays and drives.

AMPMODU interconnect system is a comprehensive family of modular signal interconnects for board-to-board, wire-to-board and wire-to-wire applications from 1.0mm (0.039″) to 3.96mm (0.156″) centerlines that are widely used across nearly all industrial applications requiring printed circuit boards (PCBs).

Small multiple connectors (SMCs) have a grid of 1.27mm and are available with pin counts of 12 to 80 for reliable and compact connections. Various shapes, such as straight or angled male and female terminal strips, helps enable different mating configurations.

Our Micro-MaTch wire-to-board and board-to-board ribbon cable connectors provide a safer and reliable connection. The unique contact-spring system helps prevent fretting corrosion by absorbing movements between male and female contacts.

The MicroCon connector series expands the portfolio of robust and compact SMD connectors. These miniaturized, double-row, fine-pitch connectors have a grid dimension of 0.8mm and are available with different numbers of poles from 12 to 100.

With hermaphroditic MicroStac connectors, the plug and mating plug are identical. The connectors are available in single-row and double-row variants, and they offer an economical solution for connectors with high current ratings and low connecting frequencies.

A floating mechanism can absorb slippage of connector positioning between units of the separator mechanism of the receptacle. These connectors can provide ± 0.3 mm float in the x and y directions at mating to provide reliable mating, easing the restraints of board design and mounting.

ERNI power taps in grids of 2.54 mm are developed especially for the power supply on the PCB and backplane. They are available in various designs with 6 or 10 connection pins and as dip solder or press-fit variants.

Board-in PCB Mount IDC Connector and RJ45 Connectors.

Our Industrial Mini I/O connectors portfolio consists of various board and cable connectors: R/A, straight board connectors, and solder and piercing cable connectors for harness makers. For field installation, there are IDC-based cable connectors with automatic wire cut-off for tool-less installation in under a minute while maintaining a high-quality connection.

These connectors are specifically designed to terminate Ethernet cables and connect into computers, routers, LANs and other types of data communication equipment. These twisted-pair connectors are engineered with eight positions and eight contacts (8P8C). Our portfolio features RJ45 connectors manufactured in multiple-port and single-port configurations with jack and plug modular connector styles.

Our broad range of industrial USB connectors includes the IP20 series, which features an integrated locking mechanism with audible and tactile feedback to create an excellent interconnect solution for internal USB cable routing without having to worry about the plug coming loose during transit and use. A highly reliable sealed version (IP65/IP67) for rugged and harsh environments is also available.

TE offers standardized and customer-specific solutions with full engineering support to help meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.

Our large portfolio of power relays includes miniature, PCB and industrial power relays. Power relays offer virtually seamless power flow by using an electromagnetic coil to open or close a circuit.

The T9G relay series is a 30-amp power PCB relay engineered for HVAC, appliances, and industrial control applications. It is the smallest relay in its class with the standard footprint, help in allowing manufacturers to add more components to PCBs without having to compromise on relay performance.

Two-pole power relays with 30A/40A/50A switching capabilities designed to control compressor loads to 3.5 tons, 110LRA/25.3FLA.

Our offering of cement-housed power resistors combines reliable, high-performance operation with cost efficiency, extensive size and style options, and generous tolerance ranges.

These cost-effective, reliable, high-performance solutions are designed to withstand extreme shock, vibration, temperature and altitude. Browse our portfolio to find wide range of electrical switches and switch accessories.

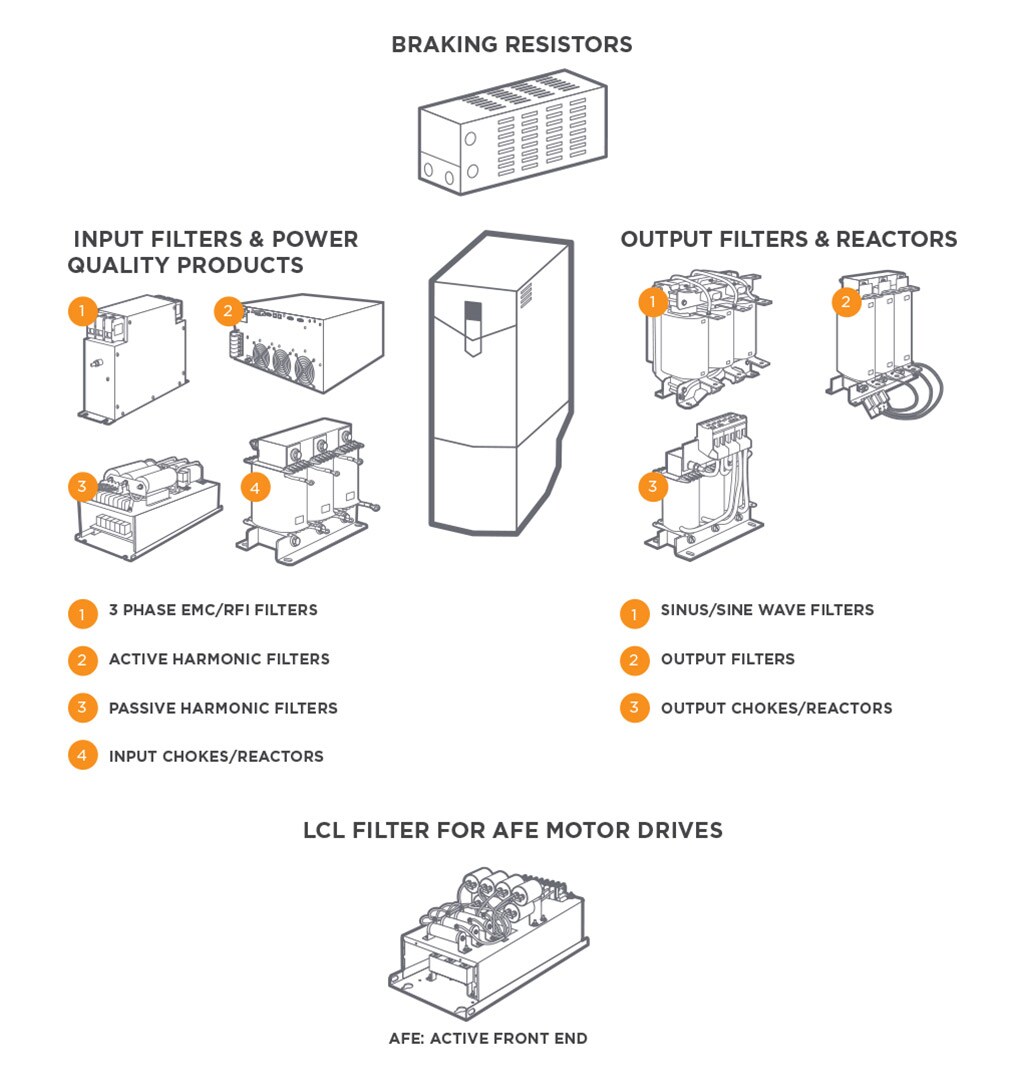

3-Phase with neutral line filters are a compact solution for interference suppression on the mains input of cabinets and control units of industrial equipment like variable speed drives.

Active harmonic filters are suitable for mixed load installations and applications with dynamic load and are commonly used as a central solution at the Point of Common Coupling (PCC).

ECOsine Active Sync harmonic filters provide a reliable solution for harmonic mitigation, power factor correction, and load balancing in real time. The modular concept offers one of the highest flexibilities for customization, redundancy, retrofitting, and combination with passive harmonic mitigation components.

Passive harmonic filters help obtain compliance with international standards, e.g., IEEE 519 or IEC/EN 61000 3 12, and with local utility codes. They reduce electrical and thermal stress upon the electrical infrastructure, significantly reduce the risk of harmonics-related reliability problems, and support long-term energy efficiency and cost savings. ECOsine passive harmonic filters are the industry standard for 6-pulse rectifiers and non-regenerative motor drives to achieve the often-specified level of THDi <5%.

A range of options to mitigate EMI and help reduce main disturbances in a variety of industrial applications. TE input chokes and reactors help ensure improved power quality and enhanced equipment protection.

Reactors help protect motors from the spikes of the inverter. They are used in motor drives and various adjustable-speed drive systems for HVAC, robots, machinery, and process automation equipment.

LCL filters are used in active front-end motor drives and active infeed converters. They help protect the grid from disturbances induced during energy regeneration from the active front end. Custom specific adaptations are available.

Our chassis mount resistors can be attached to heat sinks and dissipate heat, increasing the capacity of the resistor. With 10 different power ratings, ranging from 5W to 300 W, these are engineered to work well in shunt and current monitoring circuits.

These resistors improve power handling and offer up to 25 kW dissipation capability. They offer high power and high temperature tolerance, with different housing and mounting styles available to support compact and ergonomic system design.

Industrial connectors that are designed to transmit power, data, and signals in the toughest of conditions.

These connectors offer a reliable and easy-to-install solution, whether you need to connect power, signal or data — or all three. INTERCONTEC Connectors provide a customized solution for your application, helping to reduce downtime and increase productivity.

Our M8 and M12 connector systems provide a full solution that includes connectors, IO modules, and cable assemblies.

Whether you are designing a new system or retrofitting an existing system, TE has reliable connectors and electronic components for your motion and drives solutions.

Motors today are becoming increasingly compact but are housing an ever-greater range of functions, making it essential to have reliable connections that operate at the highest possible speeds.

Smart conveyors use precision motion and advanced technologies to enhance and improve industrial production operations, making them a growing choice across many applications and industries. Increased demand for mass customization and personalization in consumer-packaged goods has led to next-generation motion control technology.
