Field installable M8/M12 Ethernet for reliable communication

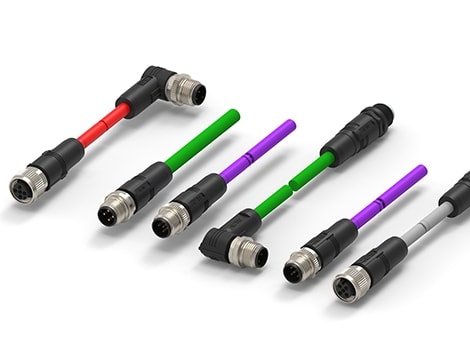

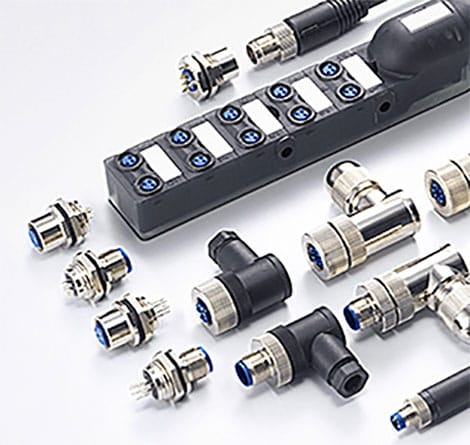

Our M8 connector system and M12 connector system provide a full solution that includes connectors, IO modules, and cable assemblies. Decrease installation and tooling costs with TE's field installable connectors.
Product Benefits
M8/M12 connectors
• Reduce downtime with a reliable industry-standard solution, including quick-turn prototype cable assemblies.
• Extend equipment life with reliable M8/M12 connectors in various applications.
• Supports up to 10 Gb/s bandwidth needs.
• Full solution offering, including customized and general market cable assemblies, enables one-stop shopping and reduced total cost of ownership (TCO).
Device
-

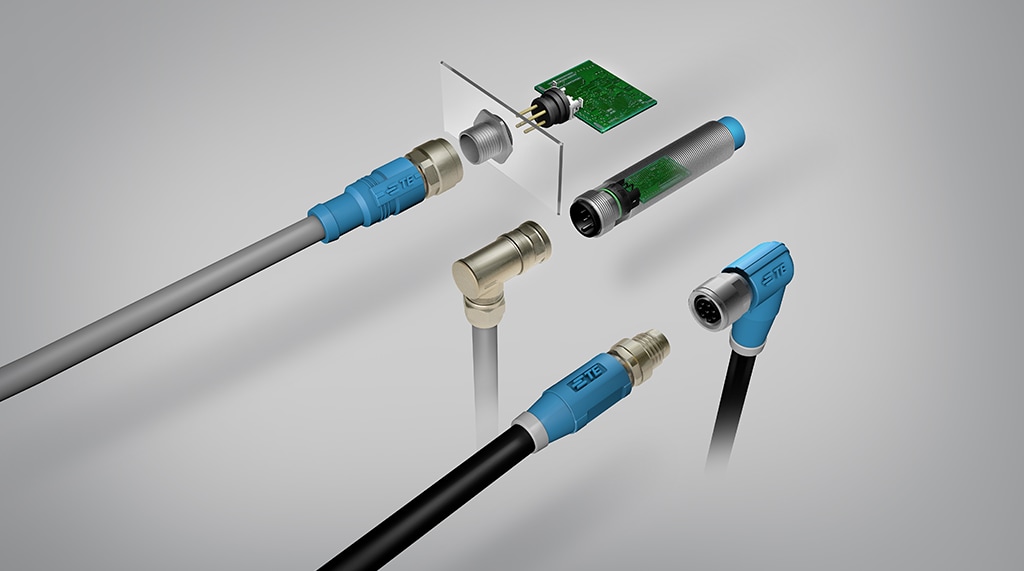

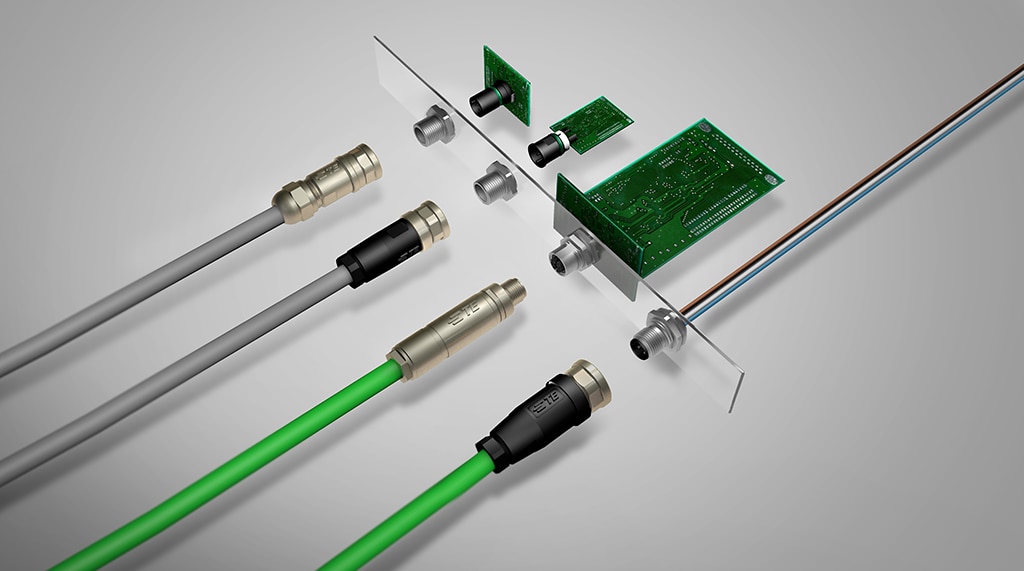

Panel mounted Connector with wires
A connector receptacle is mounted on the housing wall and wired to a PCB via an additional board connector. This allows for front loading of the receptacle, compensation of mechanical tolerances and housing flexibility with a standardized PCB
-
Panel and PCB mounted Connector
A complete PCB receptacle is soldered to the PCB and then mounted onto the housing wall. This method reduced manual labor compared to a connector with wires
-
PCB Insert
A PCB receptable without M12 treat is soldered to a PCB. The M12 treat is integral part of the housing. Depending on the housing concept this method can be more cost efficient in high volumes
Cable
-
Field Installable Connector
A field installable connector allows for flexible cable length and wiring cables through narrow space
-
Wiring Accessories
Distribution boxes and splitters are used to manage wiring efficiently
-
Components
Housing parts and contacts allow for specialized harness making in house.
Resources
TE Connectivity’s M8/M12 Connector System for machine industrial automation and control applications provides a solution that safely and reliably ensures the communication in industrial environments. Our product expert Tom Wess explains the key benefits.
