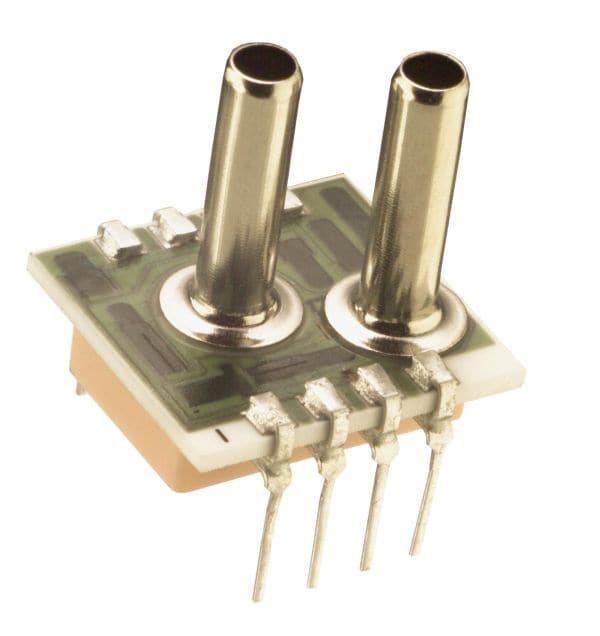

Board Mount Pressure Sensors
A board mount pressure sensor is typically mounted on a printed circuit board (PCB) and used to measure the pressure of gases or liquids. At TE Connectivity, we offer PCB mountable pressure sensors that are used in a wide range of applications from disposable medical sensors for medical equipment, to industrial pressure sensors for condition monitoring and HVAC equipment. Our sensors can be optimized for your design requirements.
Capabilities of TE's Board Mountable Pressure Sensor Portfolio
- Small size and low weight
- mV, amplified analog, or digital outputs
- Digital I²C and SPI formats supported
- Supply voltages from 1.5 to 5.0 VDC
- Uncompensated or compensated
- MEMS-based sense element
- Through-hole or surface mount
- Ideal for dry, non-corrosive gasses
- Gel-coated versions for harsh environments
- Various configurations available with temperature outputs
Learn how TE Connectivity (TE) can help with selecting the right board mount pressure sensor for your next design.
With the growing use of Bluetooth and IoT technology, sensors play a crucial role in meeting tomorrow's expectations. From factory floors to fitness trackers, from drones to thermostats, both industrial and consumer devices depend on sensors to deliver and perform.
Selecting the right board mount pressure sensor for your design is not always easy. Factors like environment, precision, power consumption and size come into play. With so many board mount pressure sensors available, where do you begin?
TE Connectivity offers a full line of printed circuit board mount pressure sensors for a wide range of applications and industries. Our sensors are compact, lightweight, and cost-effective. Choose the best solution for your needs from our selection of digital and analog PCB mountable pressure sensors, available in through-hole and surface mount configurations.
Engineered with leading MEMS technology TE pressure sensors provide superior performance, durability, and long-term stability.
Our board level pressure sensors include gage, absolute, differential, and compound pressure types (ranging from 0-2 to 30 inches of water and 0-1 to 500 psi).
Analog sensors output signal options include uncompensated mV, compensated mV, and amplified & compensated analog voltage.
Digital output signal options include I²C and SPI formats while operating at standard digital voltages that range from 1.5 to 5.0 VDC. Digital resolutions can be either 14 bit or 24 bit. Our digital sensors also contain a temperature sensor.
Use TE’s innovative board mount sensors to enhance your product’s performance.
Whatever your industry challenge, TE has the solution.
Learn more at TE.com/boardpressure
This selection guide can help you to choose the best solution for your application from our broad selection of digital and analog PCB mountable pressure sensors, available in both through-hole and surface mount configurations.
Personal IoT Sensors
TE Connectivity (TE) manufactures sensors for IoT applications from personal devices to the connected home and connected cars. With various analog and digital output signals as well as multi-sensor readings from a single device, TE sensors are enabling increases in personal efficiency and improvement.
