DEUTSCH DRB Connector Overview & Assembly Instructions (English)

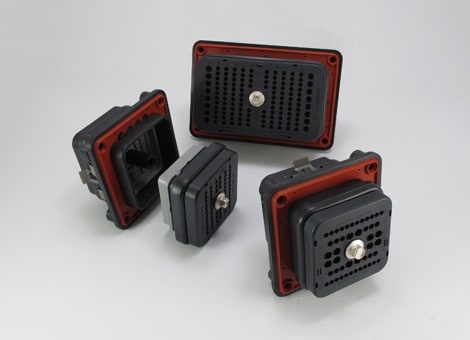

Learn about our high-pin count DEUTSCH DRB connectors that are designed for bulkhead applications. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.

Contact Insertion

  1. Hold the connector with the rear grommet/wire router cap facing you.
  2. Push contact straight into the contact cavity until a click is heard/ felt. A slight tug will ensure the contact is inserted correctly.
  3. Once all contacts are in place, insert a wedge lock lining up the keyway. The wedge lock will press into place.

Contact Removal

  1. Remove the wedge lock using a screwdriver. Pull the wedge lock straight out.
  2. To remove contacts, gently pull the wire backward, while at the same time releasing the locking finger by moving it away from the contact with a screwdriver.
  1. DEUTSCH Contact Crimping Instructions (English)

Learn how to crimp our DEUTSCH contacts. Watch this video for step-by-step instructions on crimping the contacts using hand tools.

How-to instruction video for the TE DEUTSCH Contact Crimping.
VIEW ALL DEUTSCH DRB CONNECTORS

View all DEUTSCH DRB connectors

Our DEUTSCH DRB connectors accommodate multiple wire gauges and feature high pin counts, including 48, 60, 102, and 128 cavities.
DEUTSCH solid contacts for sealed transportation connectors, sizes 4–22 AWG

DEUTSCH Connector Solid Contacts

Solid contacts for sealed DEUTSCH connectors used in industrial and commercial vehicles.

DEUTSCH Connector Stamped & Formed Contacts - Reel

Stamped and formed crimp terminals for 10–22 AWG wires, designed for durable electrical connections in harsh environments.
