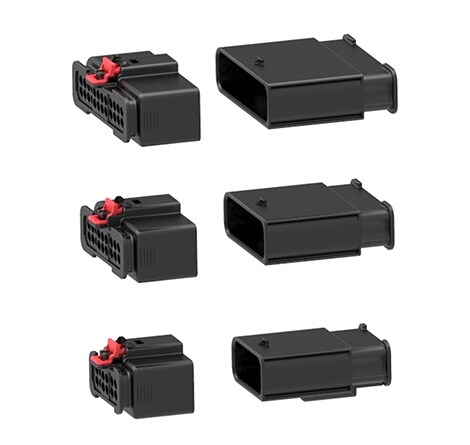

MCON 1.2 2-row 12, 18 and 24P Sealed Inline Connector
The MCON 2-row sealed inline connector family offers the broadest and most complete portfolio in the 1.2mm space to now include 12, 18 and 24 circuit connectors for various low voltage inline connector applications, including the primary body harness, rear axle harness, interior lighting harness, door harness and headlight cable harnesses. Combined with TE’s BluSurf plating technology, the MCON 1.2 2-row provides the highest pin count inline connector without a mate-assist.
The MCON 1.2, 2-row sealed connector variant extends the MCON 1.2 range offering a highly compact connector housing, with 12, 18 and 24 circuit counts in its standard connector series. Combined with TE’s innovative BluSurf plating technology, this new inline connector family enables the highest pin-count solution for inline connectivity without any mate-assist. Up to 40% reduced mating force (based on MCON 1.2 clean body testing results) combined with BluSurf plating technology (vs. standard silver plating), this product family is not only highly robust but also cost effective, offering greater design flexibility and durability to support any low power and signal application within the vehicle.
BluSurf
Plating technology for low insertion force Ag finish for improved performance
20%
Additional circuits without mating assist
40%
Up to 40% reduced mating force
Product Features
- BluSurf Plating Technology
- Circuit count – 12P, 18P and 24P without a mechanical assist
- VDA 1.2mm 2-row sealed interface compatibility
- Wire-to-wire sealed and unsealed connectors (SWS)
- Single Wire Seal (SWS) Cavity Plug
- 1.2mm clean body mono terminal design
- Integrated Secondary Locking (ISL) for both connector halves

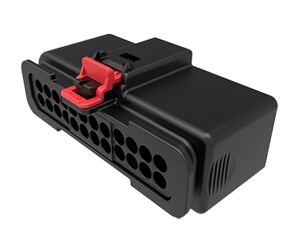

- CPA and barcode reveal
- Connector locking latch
- Validated to USCAR T3/V3/S3
- Wire dress provisions
- Wire range 0.35mm2– 0.1mm2
- USCAR EWCAP Clip slots

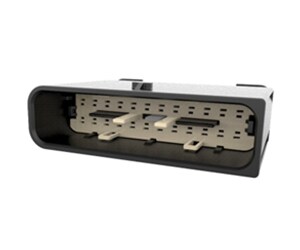

- Optional male side pin protection plate – retractable
- 1 key tooled (protected for 4 keys)
- Colored outer housings (optional)
BENEFITS
- 20% additional circuits (without a mate-assist lever) than current count available in the market (24P vs 20P).
- BluSurf plating technology for harsh environments providing automotive manufacturers reduced mating force ( up to 40% lower than standard terminals), design flexibility, durability, and improved mating without deviating from manufacturing ergonomic requirements for high circuit count connections. Passes USCAR mating force (75N) at 24P.
- Increased safety and quicker assembly by eliminating the need for additional components, such as a hand mate lever, helping reduce operator injury as well as a 30% reduction in assembly time - reducing the overall system cost and cycle times.
- Three mating/locking assurances – pin protection plate on the male side helping with anti-stubbing, a TE patented CPA barcode reveal feature ensuring the vehicle connections are properly mated after they leave the assembly.
- Proper sealing for added level of security with a single wire seal and cavity plug ensuring the positive locking for harsh automotive environments.

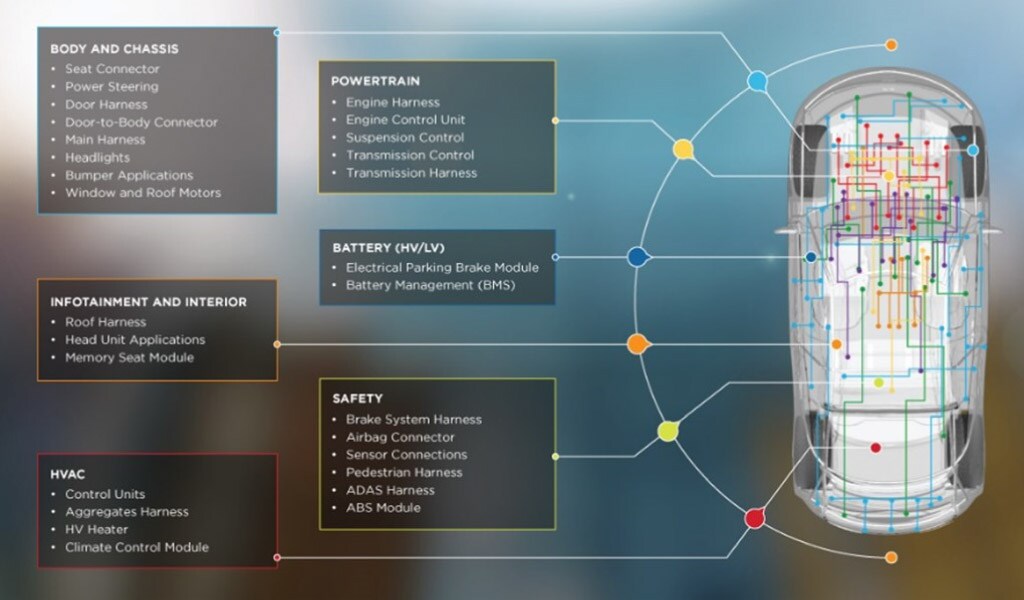

MCON 1.2 2-row Sealed Inline Connector Automotive Applications
