PEDESTRIAN IMPACT ACCELEROMETER

PEDESTRIAN IMPACT ACCELEROMETER-CAT-PPA0122
  • MEAS

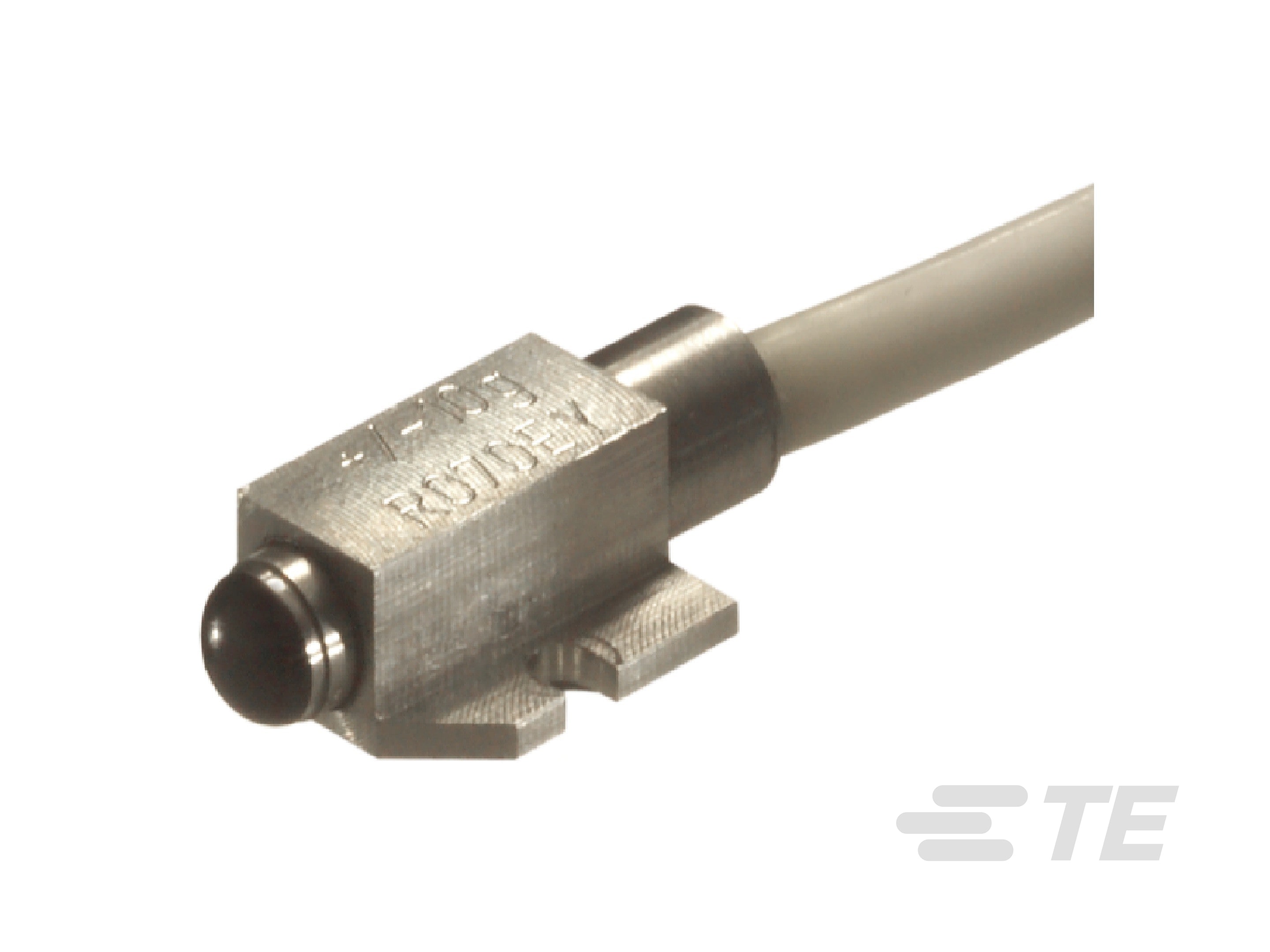

The Model EGAS-S398C NCAP pedestrian impact test sensor is a critically fluid damped accelerometer designed specifically for ATD pedestrian impact and head form testing.
More Less
Connect with Us

Product Features

  • Accelerometer Type : MEMS DC

  • Vibration Sensor Product Type : MEMS Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 0-1900

  • Full Scale Output Voltage (VDC): ±.25

Available from

LADD Inc
Overview
The NCAP pedestrian impact test sensor is a critically fluid damped accelerometer designed specifically for ATD pedestrian impact and head form testing.

The accelerometer has been certified by Euro NCAP for dummy impact and head form test applications and is available in ranges from ±50g to ±2000g. It features silicon semiconductor strain gages in a half-bridge configuration with a nominal 1500Ω impedance. The design also incorporates integral mechanical over-range stops for high-g protection. The model EGAS-S398C accelerometer is temperature compensated for low drift performance. The thermal compensation circuit is installed in an in-line cable module.

Benefits

  • Standard <10mV ZMO
  • Linearity <1%
  • Transverse Sensitivity <1%
  • 2-10Vdc Excitation
  • 0.7 Critical Damping Ratio
  • Flexible, Low Noise Cable

Applications

  • Pedestrian Impact Testing
  • ATD Head Form Test
  • Shock and Impact Testing
  • Transient Drop Testing
  • Helmet Impact Testing
orange bar

Other Auto Safety Sensors



40a pedestrian impact test sensor

40A Series

SAE J211/J2570 Pedestrian Impact Test Sensor

The Model 40A pedestrian impact test sensor is a small piezoresistive accelerometer designed to be compliant with the latest SAE J211/J2570 (AUG2009) specifications.
52M30 side impact accelerometer

52M30 Series

Side Impact Accelerometer

The Model 52M30 side impact crash test accelerometer has an advanced piezoresistive MEMS sensing element and features a flat amplitude response to 7000Hz.
64x accelerometer

64X Series

Anthropomorphic Dummy Accelerometer

The Model 64X Accelerometer is the next generation crash accelerometer for anthropomorphic dummy instrumentation featuring a full bridge output configuration with an advanced damping for excellent shock survivability and flat frequency response to 7kHz.
64b accelerometer

64B Series

SAE J211 ATD Dummy Accelerometer Sensor

The Model 64B Accelerometer is based on an advanced piezoresistive MEMS sensing element which offers exceptional dynamic range and stability.
52f crash test accelerometer

52F Series

Crash Test Accelerometer

The Model 52F ISO-6487 / SAE-J211/J2570 compliant side impact accelerometer has recently been upgraded to incorporate the one of the most advanced piezoresistive MEMS sensors on the market featuring an outstanding shock survivability, flat amplitude, and phase response up to 8000Hz.
603 high impact testing small analog gyroscope

603 Series

Small Analog Gyro for High Impact Testing

The Model 603 analog gyroscope is a small, lightweight triaxial rate sensor designed for high impact testing.
el20 seat belt load cell sensor

EL20 Series

Seat Belt Load Cell

The EL20-S458 seat belt load cell sensor provides a super low mass titanium structure to minimize F=MA errors during the crash event.
610 small analog gyroscope

610 Series

Small Analog Gyroscope

The Model 610 angular rate sensor is a small analog gyroscope designed specifically for automotive safety testing and other system designs requiring accurate measurement of angular velocity.
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  MEMS DC

  • Vibration Sensor Product Type  MEMS Accelerometer

Configuration Features

  • Electrical Connection  Integral Cable

Electrical Characteristics

  • Excitation Voltage Range (VDC) 2 – 10

  • Zero Acceleration Output (mV) ±10

  • Full Scale Output Voltage (VDC) ±.25

Signal Characteristics

  • Frequency Response (Hz) 0-1900

Body Features

  • Primary Product Material  Anodized Aluminum

  • Product Weight  1 g [ .035 oz ]

  • Number of Sensing Axes  Uniaxial

Mechanical Attachment

  • Sensor Mount Type  Screw Mount

Usage Conditions

  • Operating Temperature Range  -40 – 120 °C [ -40 – 248 °F ]

Operation/Application

  • Output Current Type  DC

Industry Standards

  • IP Rating  IP62

Other

  • Non-Linearity (FSO) (%) ±.7

  • Acceleration Range (±) (g) 500 | 2000

  • Sensitivity (mV/g) .2
