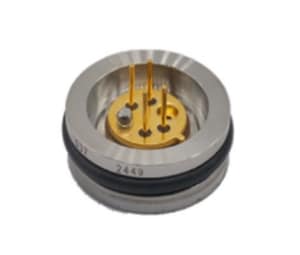

13mm High Accuracy Pressure Capsule | 85H Model
- 8XH
Part of the 8XH series, the 85H model high-accuracy pressure capsule features a 13mm diameter module and a standard recessed diaphragm with a weldable mount.
Product Features
-
Pressure (bar): 1.034 | 3.447 | 6.895 | 20.684 | 34.474 | 68.947
-
Pressure (psi): 15 | 50 | 100 | 300 | 500 | 1000
-
Pressure Sensor Type : Analog Pressure Sensor Modules | Digital Pressure Sensor
-
Pressure Type : Absolute | Gauge
-
Output Signal Details : 0.5 – 4.5 VDC | 24 bit I2C
-
Supply Voltage Range (V): 2.7 – 3.6 | 4.75 – 5.25
Overview
Features
- Weldable mount
- 316L stainless steel
- -20°C to +85°C compensated temperature range
- ±0.1%FS pressure accuracy
- ±0.3%FS Total Error Band
- Low power consumption
- ISO packages, factory calibrated
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Pressure Sensor Type Analog Pressure Sensor Modules | Digital Pressure Sensor
-
Pressure Type Absolute | Gauge
-
Sensor Package Weldable
Configuration Features
-
Electrical Connection 6" Ribbon Cable | Header 4 Pin
Electrical Characteristics
-
Supply Voltage Range (V) 2.7 – 3.6 | 4.75 – 5.25
Dimensions
-
Product Diameter (in) .623
-
Product Height (in) .49 | .59
Usage Conditions
-
Total Error Band ± (%) .3
-
Pressure (bar) 1.034 | 3.447 | 6.895 | 20.684 | 34.474 | 68.947
-
Pressure (psi) 15 | 50 | 100 | 300 | 500 | 1000
-
Operating Temperature Range (°C) -40 – 125 | -20 – 105
-
Operating Temperature Range (°F) -40 – 257 | -4 – 221
Operation/Application
-
Proof Pressure Range 3X Rated
-
Output Interface Analog Voltage | I²C
-
Pressure Accuracy ± (%) .1
-
Output Signal Details 0.5 – 4.5 VDC | 24 bit I2C
Other
-
Sensor Options 316L Stainless Steel
-
Non-Linearity ± (%) .1
-
Port Fitting Weldable (No Thread)
