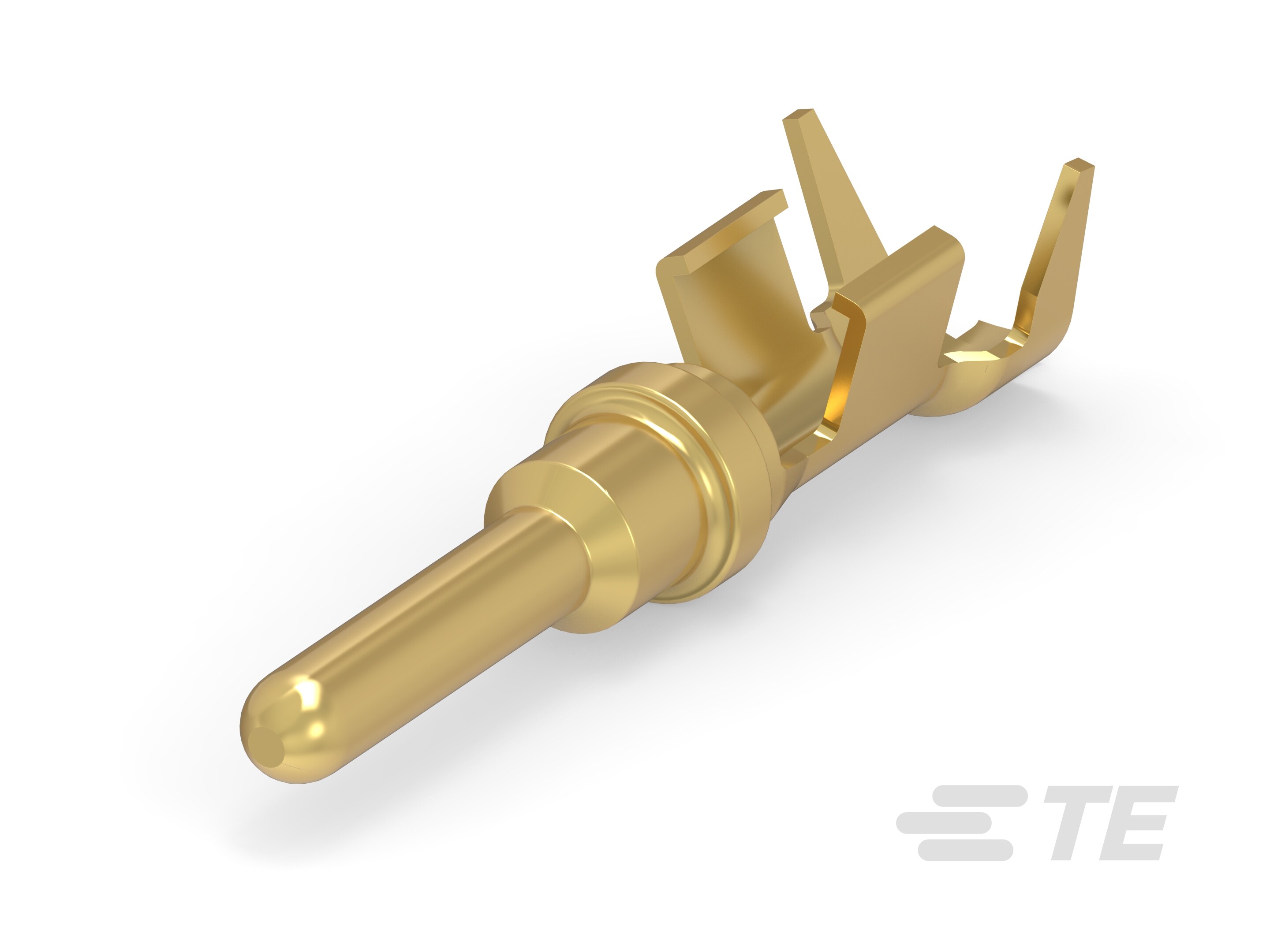

DEUTSCH Stamped Formed Contacts 100PC

Product Features

Terminal Type : Pin, Socket
Wire Size (AWG): 10, 14 – 12, 16 – 12, 16 – 14, 18 – 14, 20 – 16, 22 – 16
Wire Size (mm²): .35 – 1.5, .5 – 1, .75 – 2, .823 – 2.08, 1. – 2.5, 2 – 4, 4 – 6
Interface Plating : Nickel (Ni), Tin (Sn)
Primary Locking Feature : Integrated in Housing, On the Terminal

Available from

Product	TE Part #	Documents	Terminal Type	Wire Size	Wire Size	Interface Plating	Primary Locking Feature	Mating Pin Diameter	Terminal Transmits	Terminal Seal Type	Wire Size Search	Wire Size Search
SOC, SF, SIZE 16, 14-18, NI/SN, 100 PC	1062-16-0722-PS	Product Drawing 3D PDF	Socket	.75 – 2 mm²	18 – 14 AWG	Nickel (Ni)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.75 mm², 1 mm², 1.5 mm², 2 mm²	14 AWG, 16 AWG, 18 AWG
SOC, SF, SIZE 16, 16-20, AU/SN, 100 PC	1062-16-0644-PS	Product Drawing 3D PDF	Socket	.5 – 1 mm²	20 – 16 AWG	Tin (Sn)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.5 mm², .75 mm², 1 mm²	16 AWG, 18 AWG, 20 AWG
PIN, SF, SIZE 20, 16-22, AU/SN, 100 PC	1060-20-0144-PS	Product Drawing 3D PDF	Pin	.35 – 1.5 mm²	22 – 16 AWG	Tin (Sn)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
SOC, SF,SIZE20,16-22,SLVLES,AU/SN,100 PC	1062-20-0344-PS	Product Drawing 3D PDF	Socket	.35 – 1.5 mm²	22 – 16 AWG	Tin (Sn)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
PIN, SF, SIZE 16, 16-20, AU/SN, 100 PC	1060-16-0644-PS	Product Drawing 3D PDF	Pin	.5 – 1 mm²	20 – 16 AWG	Tin (Sn)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.5 mm², .75 mm², 1 mm²	16 AWG, 18 AWG, 20 AWG
SOC, SF, SIZE 20, 16-22, AU/SN, 100 PC	1062-20-0244-PS	Product Drawing 3D PDF	Socket	.35 – 1.5 mm²	22 – 16 AWG	Tin (Sn)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
PIN, SF, SIZE 20, 16-22, NI/NI, 100 PC	1060-20-0222-PS	Product Drawing 3D PDF	Pin	.35 – 1.5 mm²	22 – 16 AWG	Nickel (Ni)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
SOC, SF, SIZE 20, 16-22, AU/SN, 100 PC	1062-20-0144-PS	Product Drawing 3D PDF	Socket	.35 – 1.5 mm²	22 – 16 AWG	Tin (Sn)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
SOC, SF, SIZE 20, 16-22, NI/NI, 100 PC	1062-20-0122-PS	Product Drawing 3D PDF	Socket	.35 – 1.5 mm²	22 – 16 AWG	Nickel (Ni)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
SOC, SF, SIZE 12, 12-14, AU/SN, 100 PC	1062-12-0144-PS	Product Drawing 3D PDF	Socket	2 – 4 mm²	14 – 12 AWG	Tin (Sn)	On the Terminal	2.39 mm	25 – 40 A (Power)	Family Seal or Unsealed	2 mm², 3 mm², 4 mm²	12 AWG, 14 AWG
SOC, SF, SIZE 16, 14-18, NI/SN, 100 PC	1062-16-0122-PS	Product Drawing 3D PDF	Socket	.75 – 2 mm²	18 – 14 AWG	Nickel (Ni)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.75 mm², 1 mm², 1.5 mm², 2 mm²	14 AWG, 16 AWG, 18 AWG
PIN, SF, SIZE 12, 12-14, NI/SN, 100 PC	1060-12-0166-PS	Product Drawing 3D PDF	Pin	2 – 4 mm²	14 – 12 AWG	Nickel (Ni)	On the Terminal	2.39 mm	25 – 40 A (Power)	Family Seal or Unsealed	2 mm², 3 mm², 4 mm²	12 AWG, 14 AWG
PIN, SF, SIZE 20, 16-22, AU/SN, 100 PC	1060-20-0244-PS	Product Drawing 3D PDF	Pin	.35 – 1.5 mm²	22 – 16 AWG	Tin (Sn)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
SOC, SF, SIZE 16, 14-18, NI/SN, 100 PC	1062-14-0122-PS	Product Drawing 3D PDF	Socket	.75 – 2 mm²	18 – 14 AWG	Nickel (Ni)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.75 mm², 1 mm², 1.5 mm², 2 mm²	14 AWG, 16 AWG, 18 AWG
SOC, SF, SIZE 20, 16-22, NI/NI, 100 PC	1062-20-0222-PS	Product Drawing 3D PDF	Socket	.35 – 1.5 mm²	22 – 16 AWG	Nickel (Ni)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
PIN, SF, SIZE 16, 12-16, NI/SN, 100 PC	1060-16-1222-PS	Product Drawing 3D PDF	Pin	1. – 2.5 mm²	16 – 12 AWG	Nickel (Ni)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	1 mm², 1.5 mm², 2.5 mm²	12 AWG, 14 AWG, 16 AWG
SOC, SF, SIZE 12, 10, NI/NI, 100 PC	1062-12-0222-PS	Product Drawing 3D PDF	Socket	4 – 6 mm²	10 AWG	Nickel (Ni)	On the Terminal	2.39 mm	25 – 40 A (Power)	Family Seal or Unsealed	4 mm², 5 mm², 6 mm²	10 AWG
PIN, SF, SIZE 12, 12-14, AU/SN, 100 PC	1060-12-0144-PS	Product Drawing 3D PDF	Pin	2 – 4 mm²	14 – 12 AWG	Tin (Sn)	On the Terminal	2.39 mm	25 – 40 A (Power)	Family Seal or Unsealed	2 mm², 3 mm², 4 mm²	12 AWG, 14 AWG
SOC, SF, SIZE 16, 14-18, AU/SN, 100 PC	1062-14-0144-PS	Product Drawing 3D PDF	Socket	.75 – 2 mm²	18 – 14 AWG	Tin (Sn)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.75 mm², 1 mm², 1.5 mm², 2 mm²	14 AWG, 16 AWG, 18 AWG
SOC, SF,SIZE20,16-22,SLVLES,NI/NI,100 PC	1062-20-0322-PS	Product Drawing 3D PDF	Socket	.35 – 1.5 mm²	22 – 16 AWG	Nickel (Ni)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
PIN, SF, SIZE 16, 14-18, AU/SN, 100 PC	1060-14-0144-PS	Product Drawing 3D PDF	Pin	.75 – 2 mm²	18 – 14 AWG	Tin (Sn)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.75 mm², 1 mm², 1.5 mm², 2 mm²	14 AWG, 16 AWG, 18 AWG
PIN, SF, SIZE 16, 14-18, AU/SN, 100 PC	1060-16-0144-PS	Product Drawing 3D PDF	Pin	.75 – 2 mm²	18 – 14 AWG	Tin (Sn)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.75 mm², 1 mm², 1.5 mm², 2 mm²	14 AWG, 16 AWG, 18 AWG
PIN, SF, SIZE 16, 14-18, NI/SN, 100 PC	1060-16-0122-PS	Product Drawing 3D PDF	Pin	.75 – 2 mm²	18 – 14 AWG	Nickel (Ni)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.75 mm², 1 mm², 1.5 mm², 2 mm²	14 AWG, 16 AWG, 18 AWG
PIN, SF, SIZE 20, 16-22, NI/NI, 100 PC	1060-20-0122-PS	Product Drawing 3D PDF	Pin	.35 – 1.5 mm²	22 – 16 AWG	Nickel (Ni)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
SOC, SF, SIZE 16, 12-16, NI/SN, 100 PC	1062-16-1222-PS	Product Drawing 3D PDF	Socket	1. – 2.5 mm²	16 – 12 AWG	Nickel (Ni)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	1 mm², 1.5 mm², 2.5 mm²	12 AWG, 14 AWG, 16 AWG
PIN, SF, SIZE 12, 10, NI/NI, 100 PC	1060-12-0222-PS	Product Drawing 3D PDF	Pin	4 – 6 mm²	10 AWG	Nickel (Ni)	On the Terminal	2.39 mm	25 – 40 A (Power)	Family Seal or Unsealed	4 mm², 5 mm², 6 mm²	10 AWG
SOC, SF, SIZE 16, 14-18, AU/SN, 100 PC	1062-16-0144-PS	Product Drawing 3D PDF	Socket	.75 – 2 mm²	18 – 14 AWG	Tin (Sn)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.75 mm², 1 mm², 1.5 mm², 2 mm²	14 AWG, 16 AWG, 18 AWG
PIN, SF, SIZE 20, 16-22, SN/SN, 100 PC	Y-1060-20-0277-PTS	Product Drawing 3D PDF	Pin	.35 – 1.5 mm²	22 – 16 AWG	Tin (Sn)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.35 mm², .5 mm², .6 mm², .75 mm², 1 mm², 1.5 mm²	16 AWG, 18 AWG, 20 AWG, 22 AWG
SOC, SF, SIZE 20, 14-16, NI/NI, 100 PC	Y-1062-20-0622-PTS	Product Drawing 3D PDF	Socket	1. – 2.5 mm²	16 – 14 AWG	Nickel (Ni)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	1 mm², 1.5 mm², 2.5 mm²	14 AWG, 16 AWG
SOC, SF, SIZE 16, 14-18, SN/SN, 100 PC	Y-1062-16-0177-PTS	Product Drawing 3D PDF	Socket	.823 – 2.08 mm²	18 – 14 AWG	Nickel (Ni)	Integrated in Housing	1.5 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	.75 mm², 1 mm², 1.5 mm², 2 mm²	14 AWG, 16 AWG, 18 AWG
PIN, SF, SIZE 20, 14-16, NI/NI, 100 PC	Y-1060-20-0622-PTS	Product Drawing 3D PDF	Pin	1. – 2.5 mm²	16 – 14 AWG	Nickel (Ni)	On the Terminal	1.02 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	1 mm², 1.5 mm², 2.5 mm²	14 AWG, 16 AWG
SOC, SF, SIZE 16, 12-16, AU/SN, 100 PC	Y-1062-16-1244-PTS	Product Drawing 3D PDF	Socket	1. – 2.5 mm²	16 – 12 AWG	Tin (Sn)	On the Terminal	1.59 mm	0 – 24 A (Low Power)	Family Seal or Unsealed	1 mm², 1.5 mm², 2.5 mm²	12 AWG, 14 AWG, 16 AWG

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Receptacle Style 180°
Primary Locking Feature Integrated in Housing, On the Terminal
Sealable No

Configuration Features

Compatible With Wire & Cable Type Discrete Wire

Body Features

Terminal Seal Type Family Seal or Unsealed

Contact Features

Contact Fabrication Stamped & Formed
Contact Size Size 12, Size 16, Size 20
Typical Current Rating (A) 7.5, 13, 25
Crimp Type F-Crimp
Wire Contact Termination Area Plating Material Nickel, Tin
Terminal Type Pin, Socket
Interface Plating Nickel (Ni), Tin (Sn)
Mating Pin Diameter (mm) 1.02, 1.5, 1.59, 2.39
Mating Pin Diameter (in) .04, .06, .063, .094

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire & Cable

Dimensions

Compatible Insulation Diameter Range (mm) 1.3 – 2.16, 1.4 – 2.54, 1.9 – 3.55, 1.9 – 3.56, 1.91 – 3.18, 2.41 – 3.81, 2.87 – 4.47, 3.56 – 5.18
Compatible Insulation Diameter Range (in) .051 – .085, .055 – .1, .075 – .14, .075 – .125, .095 – .15, .113 – .176, .14 – .204
Wire Size (AWG) 10, 14 – 12, 16 – 12, 16 – 14, 18 – 14, 20 – 16, 22 – 16
Wire Size (mm²) .35 – 1.5, .5 – 1, .75 – 2, .823 – 2.08, 1. – 2.5, 2 – 4, 4 – 6
Wire Size Search (mm²) .35, .5, .6, .75, 1, 1.5, 2, 2.5, 3, 4, 5, 6
Wire Size Search (AWG) 10, 12, 14, 16, 18, 20, 22

Usage Conditions

Insulation Option Uninsulated
Operating Temperature (Max) 125 °C [ 257 °F ]
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Compatible With Wire Base Material Copper
Conforms to Automation Guideline Yes, KOMAX Guideline for automatic component insertion for electrical connections, Version 5.0 (March 2018)

Packaging Features

Packaging Method Bag, Package
Packaging Quantity 1, 100

Other

Customer Preferred Contact Yes
Terminal Transmits 0 – 24 A (Low Power), 25 – 40 A (Power)

Reference Number

TE Internal Number CAT-J67-DSFC100
