DEUTSCH Wildcat Connectors for High Performance
Save weight and integrate more into increasingly confined spaces with smaller, higher-density connectors. Capable of withstanding harsh environmental conditions such as vibration, high/low temperature and exposure to aggressive fluids, Wildcat connectors are designed for applications within the aerospace, defense, transportation markets. With a new black zinc nickel plating, these connectors are recommended for UAV systems.
Explore Sections
Featured DEUTSCH Wildcat Series Connectors

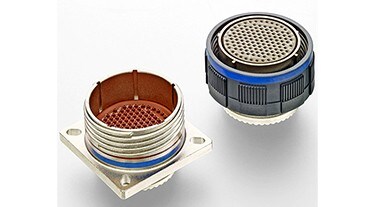

Wildcat 38999 Connectors
MIL-DTL-D38999 is a popular and widely used subminiature circular connectors for military and aerospace applications.

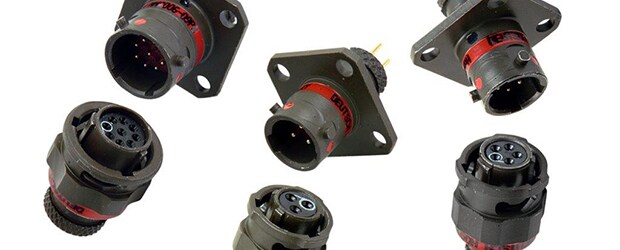

Wildcat Micro Connectors
Wildcat Micro connectors are extremely compact and available in two housing sizes with four contact layouts with 3, 5, or 9 contacts.

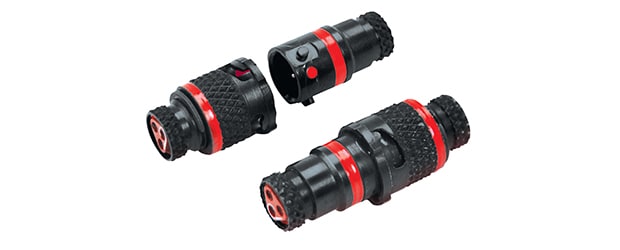

Wildcat UAV Connectors
TE Connectivity (TE) with its Wildcat UAV connection systems offers expertise in the design and manufacture of interconnection solutions for harsh environments.
APPLICATIONS
Wildcat 38999 Connectors
Product Features:

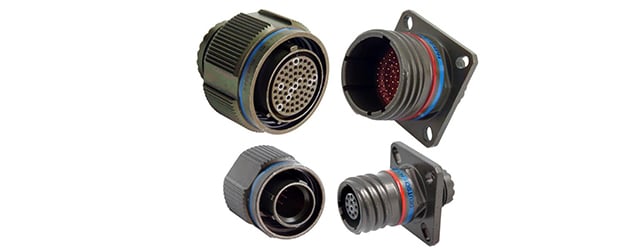

Wildcat 38999 Connector
- Based on MIL-DTL-38999 Series 3 technology
- Available in four housing sizes with between 11 and 64 contacts which provide almost double the contact density of MIL-DTL-38999 connectors.
- Triple-start threaded interface provides a robust and high-reliability coupling mechanism with a high level of resistance to shock and vibration.
- Mounting and rear accessory options available enabling either backshell or cable braid and boot termination.
- As with the Micro series, the connectors are fully sealed with rear removable contacts and available in various plating and material finishes.
Rugged Reliability
- Lightweight materials
- Scoop-proof interface
- Aggressive fluid resistance and dust ingress prevention·
- Fully sealed cable and mating interface
Feature Rich
- EMI screening as per MIL-DTL-38999 Series III
- RFI mating interface band
- 7 keying options including "Universal"
- Rear-removable crimp and PCB contacts (consult TE for PCB details)
Wildcat Micro Connectors
Product Features:

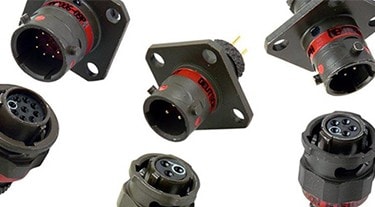

Wildcat Micro Series
- Extremely compact connectors based on the proven HDJ / JN1003 range
- Available in two housing sizes with four contact layouts with between 3 and 9 contacts
- Robust bayonet mechanism enabling quick and positive coupling with an anti-vibration triple-start threaded option also available.
- Various mounting options available and the rear accessory feature provides for cable braid and boot termination.
Rugged Reliability
- High-density contact spacing and lightweight materials
- Extreme temperature, vibration and corrosion resistance
- Aggressive fluid resistance and dust ingress prevention
- Fully sealed cable and mating interface with IP67 rating
Feature Rich
- Scalloped/knurled coupling ring for easy gripping
- Scoop-proof interface
- Rear removable crimp and PCB contacts
- 7 keying options including "Universal"
- Suitable for both signal and low power applications
- MIL-STD-1553 protocol compatible
Wildcat UAV Connectors
Product Features:

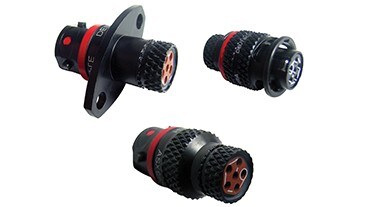

Wildcat UAV Connector Portfolio
Specialized Design
- Compact, ultra lightweight design for minimal space envelope
- Reliable in high-vibration applications
- Resistant to fuels, oils, cleaning, and other liquids in harsh
Feature Rich
- Interfacial & wire sealing
- PCB option
- Universal option available (not UAV Composite)
- Standard crimp tooling
- Suitable for blind mating
- Scoop-proof interface
- Shell-to-shell grounding (not UAV Composite)
- Positive locking coupling mechanism
- No need for backshells or boot termination
