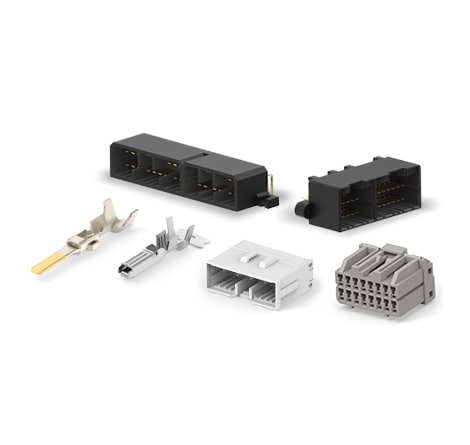

MULTILOCK Connectors
TE Connectivity’s MULTILOCK connector systems offer compact, flexible, and high-performance connectivity solutions tailored for a variety of automotive and industrial applications. Designed for both signal and power needs, these connectors feature a high-density layout ideal for space-constrained environments, a double-lock mechanism for secure terminal retention, and are available in wire-to-wire and wire-to-board formats. Their flexible mixed signal and power configurations, service-friendly design, and adherence to global standards make MULTILOCK connectors a reliable and versatile choice for ensuring durable and secure engagement across diverse systems.
SMALL
High-density layout for space-constrained applications
LOCK
Plug housing provides double-lock mechanism
MIXED
Mixed connectors with signal and power circuits available
MULTILOCK Features
- High-density layout for space-constrained applications
- Double-lock mechanism ensures secure terminal retention
- Available in wire-to-wire and wire-to-board formats
- Supports current ranges from 3-15 Amps
- Contact point protected with box structure design
- Engineered for high-temperature applications
- Flexible mixed signal and power connector configurations
- Service-friendly and globally standardized
- Enables design flexibility with vertical, horizontal, and SMT options
- Designed for pin counts up to 200
- Unsealed applications
Explore all MULTILOCK Solutions

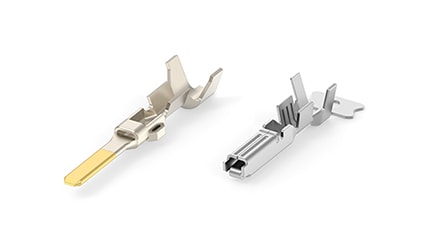

MULTILOCK Terminals
MULTILOCK Terminals are precision-engineered contacts designed for use within TE's MULTILOCK connector housings. These terminals ensure high mechanical retention, stable electrical conductivity, and long-term durability under demanding conditions typical of automotive and industrial environment.
Features
- Both clean body and lance terminal options available
- Pre- and post plating, Sn or Au for most series
- Base material of receptacle is copper alloy, tab brass and gold plated 1.0, 1.8 and 2.3mm terminal options
- Current range from 3-15 Amps
- Option for high-current applications
- Box structure for protecting the contact point 0.3 – 0.5mm2 wire size (AWG 22-20)

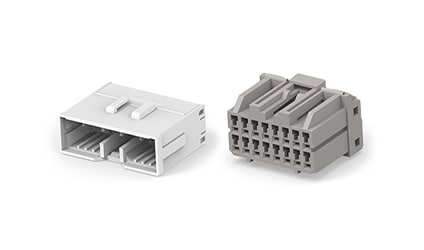

MULTILOCK Connectors
TE’s MULTILOCK Connector System offers the versatile .040 and 1.8 series. Available in vertical, horizontal, and SMT styles, it supports unsealed designs, high-temp materials, downsized terminals, and lever-assist for low mating force—ideal for dense, high-performance automotive modules.
1.0 MULTILOCK Connector System
Ideal for mid-range signal and power needs for automotive systems.
- 2.5mm compact pitch
- Double-lock terminal retention ensuring complete contact insertions into housings
- Flexible housing for mixed signal and power circuits
- Wire-to-Wire and Wire-to-Board
- Horizontal and vertical mounting PCB mountings
- 2 to 64 positions
- Applications: Body Electronics, Infotainment and Instrument Clusters
1.8 MULTILOCK Connector System
High-density, miniaturized connector for modern automotive designs.
- Smaller footprint for tight spaces
- Secure locking in high-vibration environments
- Adopting housing lances for Wire-to-Wire and Wire-to-Board
- Applications: ADAS, BCMs, Sensor Networks
2.3 MULTILOCK Connector System
- 090 III MULTILOCK Connector
- 090/250(SPT) Hybrid Connector
- 025/090/110 Hybrid
- 090 III LIF Connector
- 0.25/0.090 are also available
- Applications: I/P BOX, CE Box, InPanel to Body harness
MULTILOCK Mixed Signal and Power Connector Configurations
- Space-optimized layout
- Reduces harness complexity
- Hinge lock or side lock available preventing incomplete insertions of contacts
- 24 – 76 positions
- Applications: Power Distribution Unit (PDU), Control Modules, EV applications

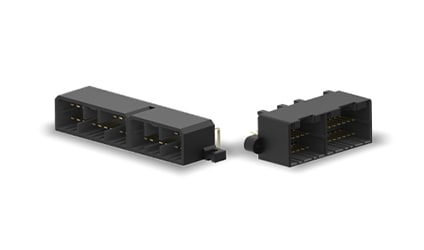

MULTILOCK Headers
MULTILOCK headers are part of TE Connectivity’s automotive connector systems, designed for signal and power interconnection. They are known for their secure engagement, high-density layout, and versatile configurations.
Features
- Pitch is 2.5mm
- Wide range from 2Pos to 147
- PosVertical and Horizontal headers
- Through Hole solderable and Pressfit
- Hybrid Headers
- Sealed and Unsealed Headers
Applications
- ECU (Engine Control Units)
- Headlamp and rear lamps
- Powertrain and Chassis
- Dashboard and Infotainment
- Sensor and Actuators
- Household appliances
- Industrial and Commercial Vehicles
- Relay connections
- Industrial machinery and equipment
- Transportation and heavy equipment
- Computer equipment
- Communication products
- Security products Cable assembly and wiring
