M3021-000005-100PG

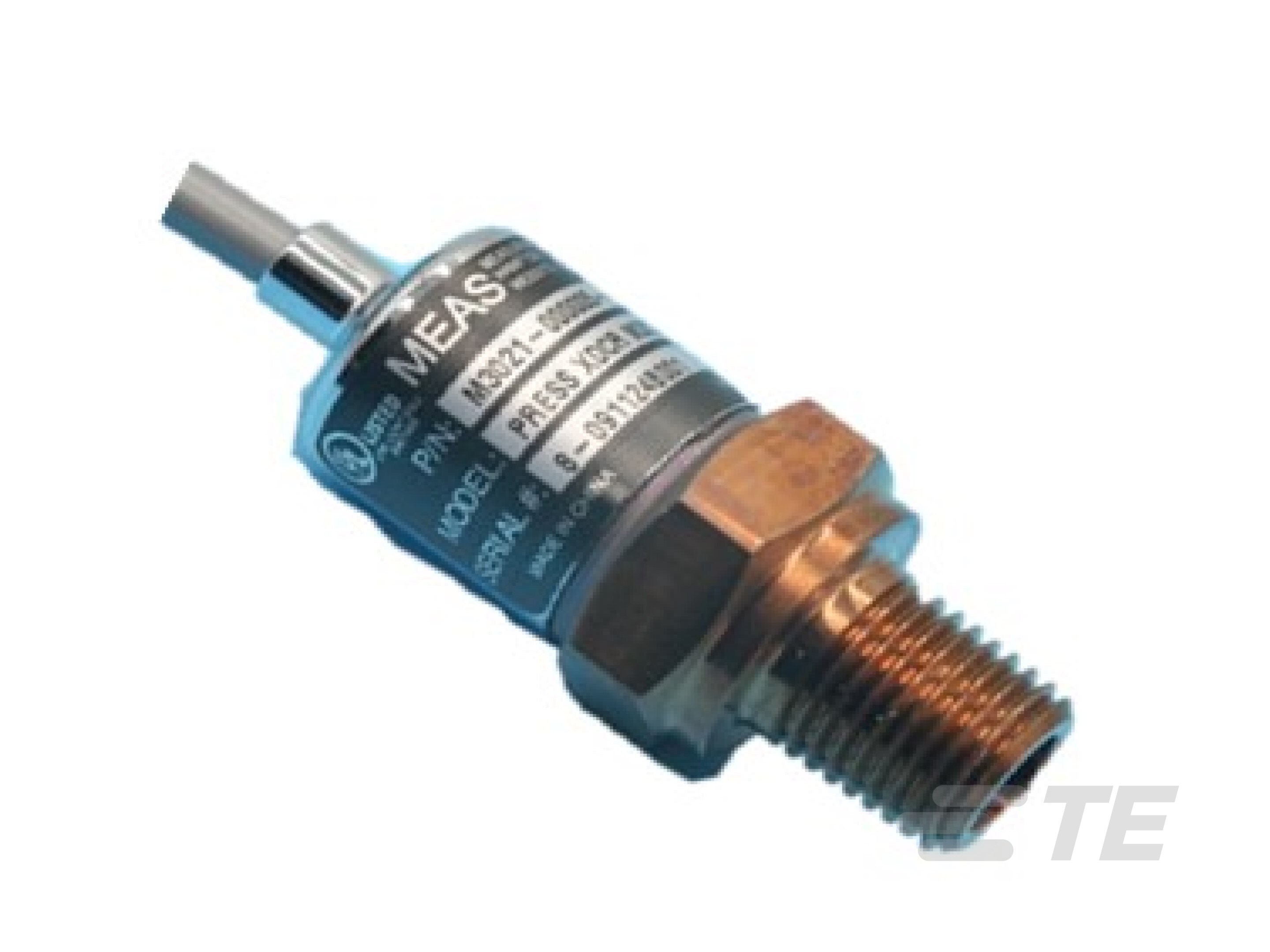

Industrial Pressure Transducer, Gauge, 0 – 100 mV Output Signal, 2X Rated Proof Pressure Range, MEAS MSP300
M3021-000005-100PG
Industrial Pressure Transducer, Gauge, 0 – 100 mV Output Signal, 2X Rated Proof Pressure Range, MEAS MSP300
-
- MEAS
- MEAS MSP300
- TE Internal #: M3021-000005-100PG
- TE Internal Description: PRESS XDCR M3021-000005-100PG
-
Pressure Sensor Type : Industrial Pressure Transducer
-
Pressure : 6.89 bar [ 100 psi ]
-
Pressure Type : Gauge
-
Supply Voltage Range (V): 5
-
Output Signal Type : 0 – 100 mV
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_M3021-000005-100PG_H.pdf 3D
- Customer View Model ENG_CVM_CVM_M3021-000005-100PG_H.2d_dxf.zip English
- ENG_CVM_CVM_M3021-000005-100PG_H.3d_igs.zip English
- ENG_CVM_CVM_M3021-000005-100PG_H.3d_stp.zip English
Datasheets & Catalog Pages
- MSP300 ENG_DS_MSP300_B2.pdf English
