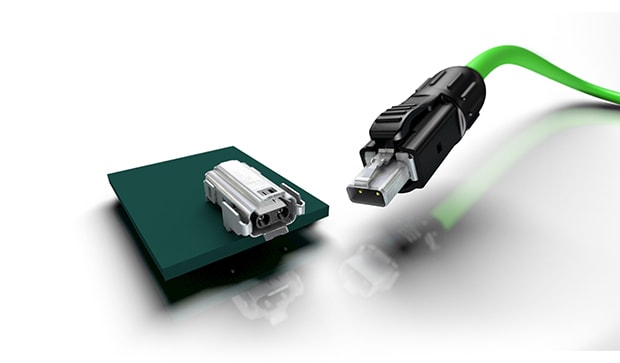

Single Pair Ethernet (SPE) IP20 Connector

Single Pair Ethernet (SPE) IP20 Connector-CAT-Z16-RSTMCA5001
Single Pair Ethernet (SPE) uses one pair of copper wires for transmission, simplifying connectivity while enabling Power over Data Line (PoDL) for device powering. It includes reliable connectors, smaller and flexible cables which are cost-effective in installation. SPE supports communication speeds up to 1 Gb/s and adheres to the IEC63171-6 standard. This innovation maybe ideal for next-gen applications in various industries.
More Less

Product Features

  • Modular Jacks & Plugs Products : SPE T1 Industrial

  • Connector Contact Density : Standard

  • Modular Connector Style : Jack, Plug

  • Shielded : Yes

  • Performance Category : SPE (Single Pair Ethernet)

Available from

LADD Inc
Overview
  1. SPE T1 INDUSTRIAL CONNECTORS IP20

Unlike traditional Ethernet, which relies on two or four pairs of copper wires for data transmission, SPE simplifies the process by using just one pair. This streamlined approach not only enhances efficiency but also opens the door to new applications. We'll also explore Power over Data Line (PoDL), a groundbreaking technology that allows devices to be powered through the same pair of wires used for data transmission. This dual functionality makes SPE ideal for various industries, from automotive to industrial automation.

Single Pair Ethernet (SPE)
Datasheet (English)
SPE T1 INDUSTRIAL CONNECTORS IP20

Instead of transmitting Ethernet over two pairs (for Fast Ethernet (100Mb/s)) or four pairs (for Gigabit Ethernet), Single Pair Ethernet (SPE) specifies Ethernet transmission over only one pair of copper wires. PoDL (Power over Data Line) enables powering the remote device via the same pair of wires. Download the datasheet to learn more.

Flyer (English)
Higher Power Levels for Single Pair Ethernet
Brochure (English)
SINGLE PAIR ETHERNET (SPE) TECHNOLOGY
Infographic
SINGLE PAIR ETHERNET

Single-Pair Ethernet

Trend Insight

Single Pair Ethernet

Reduce complexity, costs and enables you to go beyond existing borders.

Application

Controls for next-generation industrial automation

Learn how we are helping customers design next-gen industrial automation systems, with a broad range of solutions for programmable logic controllers (PLC), human machine interfaces (HMI), and I/O modules to increase productivity and safety across the factory floor.
Single Pair Ethernet, industrial ethernet, industrial single pair ethernet

Explore the Potential of SPE

TE’s SPE connectivity solutions help you bring better transparency to your industrial Ethernet infrastructure.

realpars courses, spe, single pair ethernet

Redeem your Special Discount for RealPars Exclusive Courses

Upgrade Your Skills with TE Connectivity and RealPars. Redeem your Special Discount for RealPars Exclusive Courses​.

Application

Industrial Ethernet

TE's innovative Industrial Ethernet communication solutions give reliable connectivity in industrial environments.
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Connector Assembly

  • Modular Jacks & Plugs Products  SPE T1 Industrial

  • Modular Connector Style  Jack, Plug

  • Connector System  Cable-to-Board

  • Connector & Contact Terminates To  Printed Circuit Board, Wire & Cable

Configuration Features

  • Port Matrix Configuration  1 x 1

  • Number of Positions  2

  • Connector Contact Density  Standard

  • PCB Mount Orientation  Right Angle

  • Number of Loaded Positions  2

Signal Characteristics

  • Data Rate (Mb/s) 1000

Body Features

  • Shield Material  Stainless Steel

  • Shield Plating Material  Tin over Nickel

Contact Features

  • Contact Mating Area Plating Material  Gold Flash over Palladium Nickel

  • Contact Underplating Material  Nickel

  • Contact Base Material  Copper Alloy

  • Contact Current Rating (Max) (A) 4

Termination Features

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • PCB Mount Retention Type  Solder Tail

  • Mating Alignment  With

  • Panel Mount Feature  Without

  • Mating Alignment Type  Latch

  • Connector Mounting Type  Board Mount, Cable Mount (Free-Hanging)

Housing Features

  • Housing Color  Black

  • Centerline (Pitch)  2.8 mm [ .11 in ]

  • Housing Material  PA

Usage Conditions

  • Operating Temperature Range  -40 – 80 °C [ -40 – 176 °F ]

Operation/Application

  • Circuit Application  Power & Signal

  • Shielded  Yes

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Performance Category  SPE (Single Pair Ethernet)

Packaging Features

  • Packaging Quantity  100, 800

  • Packaging Method  Loose Piece - Bag, Reel & Box

Other

  • Field Serviceable  No

Reference Number

  • TE Internal Number CAT-Z16-RSTMCA5001
