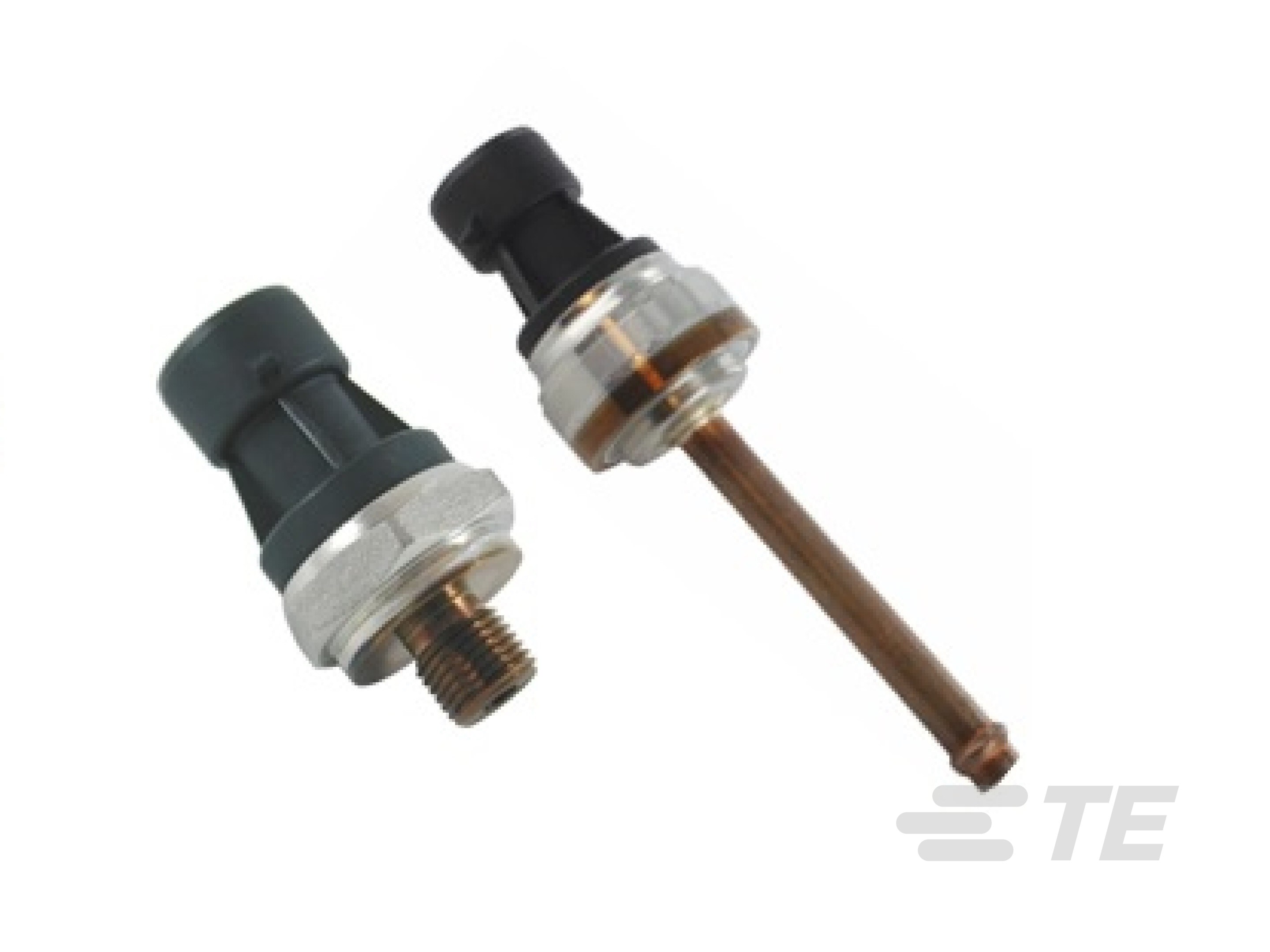

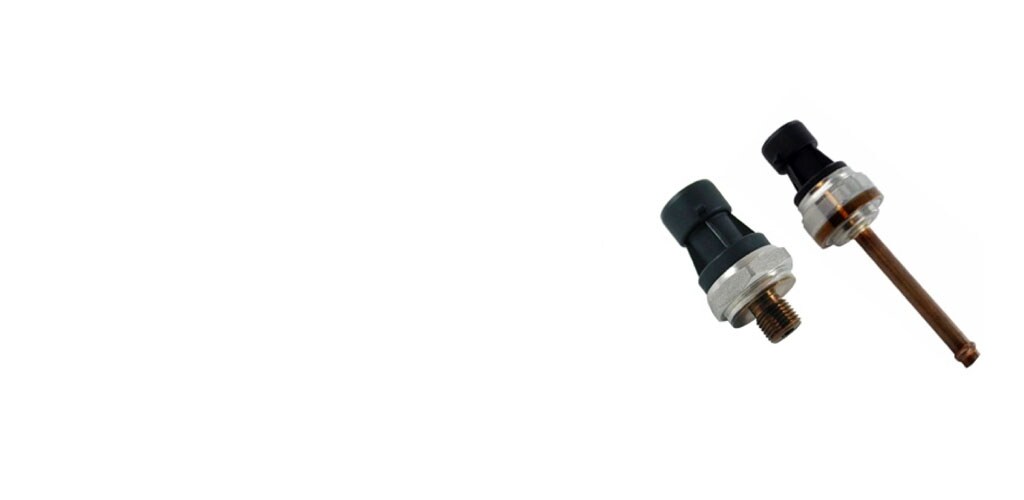

Industrial Pressure Transducer
- MEAS
- MEAS M7100
Product Features
-
Pressure Sensor Type : Industrial Pressure Transducer
-
Pressure (bar): 10 | 14 | 20 | 30 | 35 | 50 | 70 | 100 | 200 | 350 | 500 | 700
-
Pressure (psi): 150 | 200 | 300 | 500 | 750 | 1000 | 1500 | 3000 | 5000 | 7500 | 10000
-
Pressure Type : Gauge
-
Supply Voltage Range (V): 4.75 – 5.25 | 8 – 32
-
Output Signal Type : .5 – 4.5 V Ratiometric | 1 – 5 V
The M7100 series industrial pressure transducer sets a new price performance standard for demanding engine and vehicle, HVACR, and industrial applications.
This industrial pressure transducer is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam and corrosive fluids. The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4 NPT pipe thread allowing a leak-proof, all metal sealed system. There are no o-rings or organics exposed to the pressure media and the durability is excellent. This automotive grade pressure transducer with stainless steel hermetic pressure ports and integral electrical connector can boast up to 10,000psi (700Bar). The M7100 industrial pressure transducer is UL certified and exceeds the latest industrial CE requirements including surge protection and is overvoltage protected in both positive and reverse polarity.
Benefits
- Hermetic Pressure Ports
- Integral Electrical Connector
- Survives High Vibration
- ±0.25% Accuracy
- Water Resistant 1M Immersion
- Performance standard on and off highway engine and vehicle OEMs
- Rugged for heavy equipment and outdoor use
- Designed specifically for high volume applications
- Stainless steel wetted surfaces
- Medium to high pressures
- UL Certified
- Gage
Applications
- On and Off Highway Engines and Vehicles
- HVAC Refrigeration Controls
- Compressors
- Hydraulics
- Energy and Water Management
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Pressure Sensor Type Industrial Pressure Transducer
-
Pressure Type Gauge
Configuration Features
-
Electrical Connection Amp070 | Cable 10 ft | Cable 10 m | Cable 1 m | Cable 2 ft | Cable 2 m | Cable 4 ft | Cable 5 m | Packard | Sumitomo
Electrical Characteristics
-
Supply Voltage Range (V) 4.75 – 5.25 | 8 – 32
Body Features
-
Port Material 17-4PH | Copper,C12200
Usage Conditions
-
Pressure (bar) 10 | 14 | 20 | 30 | 35 | 50 | 70 | 100 | 200 | 350 | 500 | 700
-
Pressure (psi) 150 | 200 | 300 | 500 | 750 | 1000 | 1500 | 3000 | 5000 | 7500 | 10000
-
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Operation/Application
-
Output Signal Type .5 – 4.5 V Ratiometric | 1 – 5 V
-
Proof Pressure Range 2X Rated
-
Pressure Accuracy ±0.25% FSO
Other
-
Sensor Options IP67 Protection
-
Port Fitting 1/4 Flare Gasket | 1/4 MNPT | 1/4 OD Copper Tube | 1/8 MNPT | 7/16-20 UNF Female with Integral Valve | 7/16-20 UNF Male Buna-N | G1/4 BS5380 Female | G1/4 BS5380 Male | G1/4 DIN3852 Gasket Male | M10x1 Male | M12x1.5 Male | M14x1.5 Male | R1/4 Male
Reference Number
-
TE Internal Number CAT-PTT0014
Datasheets & Catalog Pages
- M7100 English
