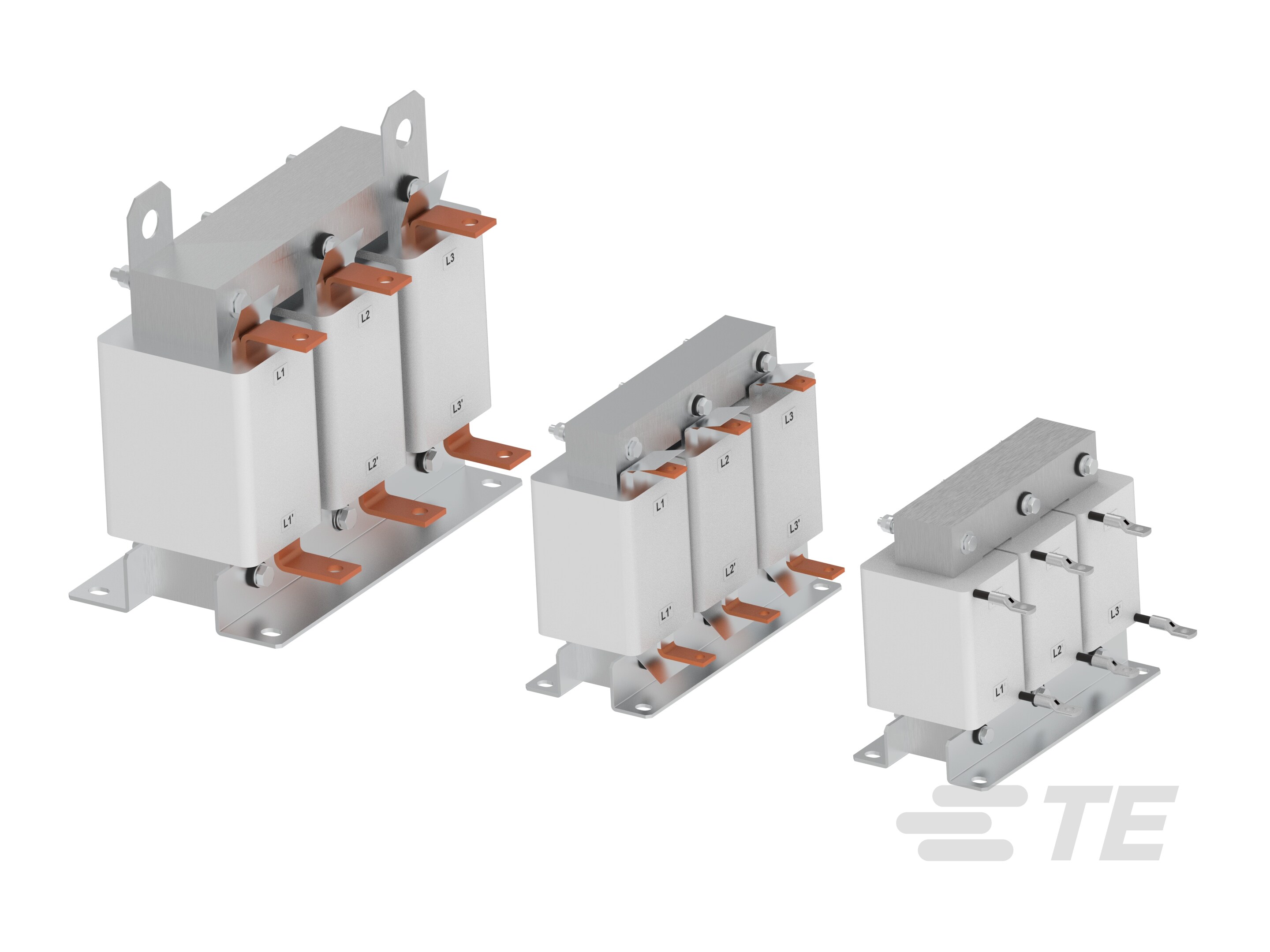

RWK3044 3-Phase Line Reactor – Effective Reduction of Mains Disturbances at 400 V

RWK3044 3-Phase Line Reactor – Effective Reduction of Mains Disturbances at 400 V-CAT-PE4-R3044
The RWK3044 is a 4% 3-phase line reactor designed for 400 V networks, offering a reliable and cost-effective solution to minimize mains disturbances. It helps reduce harmonics on the mains side, mitigates commutation notches, and limits inrush current, ensuring improved power quality and enhanced equipment protection.
More Less

Product Features

  • Wiring Configuration : DELTA (3 wire + ground)

  • Current Rating (A): 2, 3.5, 6.5, 9, 12, 18, 24, 30, 35, 48, 59, 72, 88, 120, 140, 180, 210, 260, 320, 400, 510, 570, 640, 800, 1000

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  Busbar, Ring Terminal, Terminal Block

  • Output Termination Type  Busbar, Ring Terminal, Terminal Block

Configuration Features

  • Wiring Configuration  DELTA (3 wire + ground)

Electrical Characteristics

  • Operating Voltage (VAC) 480

  • Power Rating (kW) 1.1, 2.2, 3, 4, 5, 5.5, 7.5, 11, 15, 18.5, 19, 22, 30, 37, 45, 55, 75, 90, 110, 132, 160, 200, 250, 315, 355, 400, 450, 500, 550, 630, 750

  • Current Rating (A) 2, 3.5, 6.5, 9, 12, 18, 24, 30, 35, 48, 59, 72, 88, 120, 140, 180, 210, 260, 320, 400, 510, 570, 640, 800, 1000

Mechanical Attachment

  • Product Mount Type  Wall Mount

Reference Number

  • TE Internal Number CAT-PE4-R3044
