Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Output Filter Type

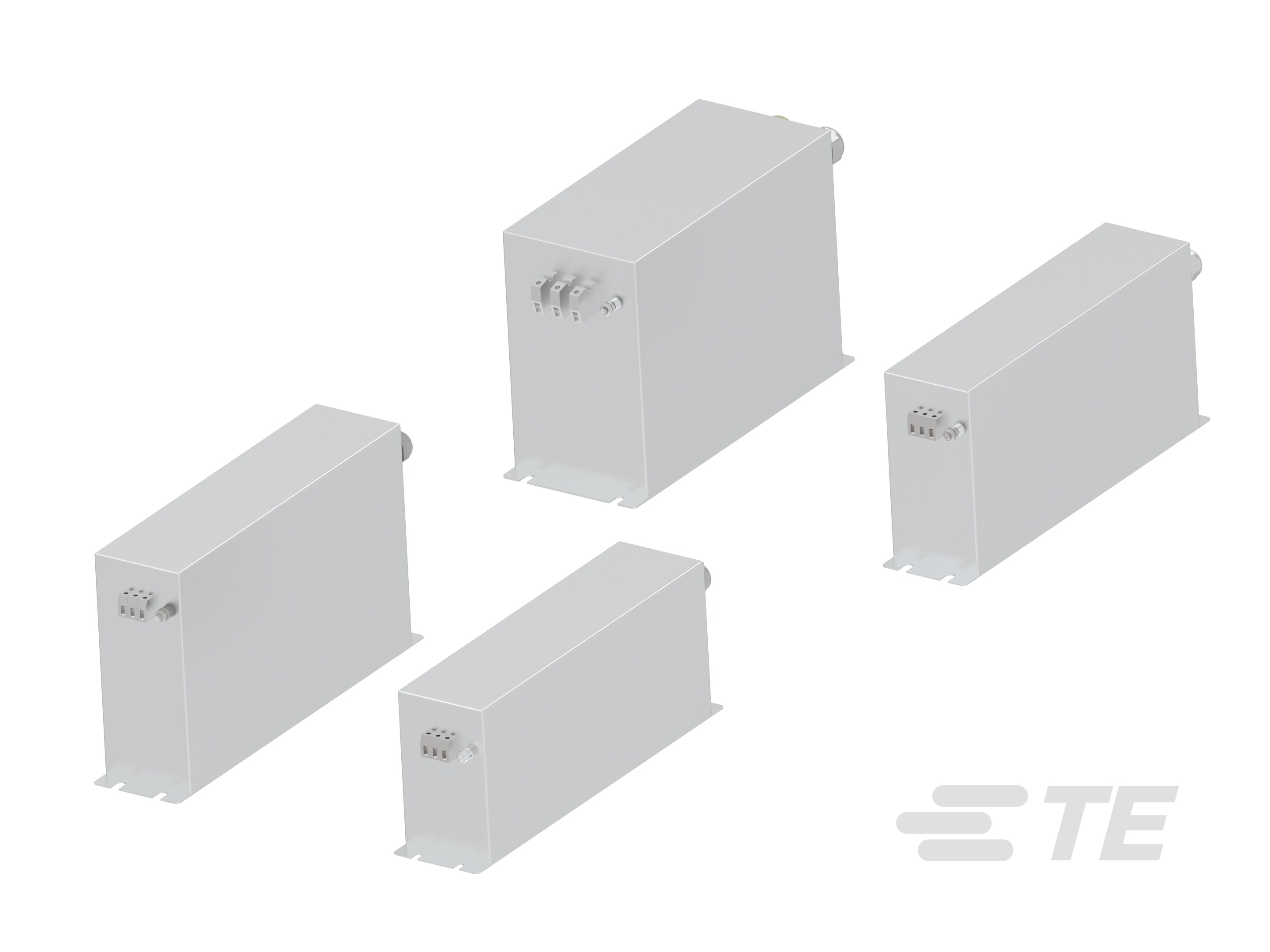

Sine Wave Filter
Electrical Characteristics
-
Short Circuit Current Rating (kA)
100
-
Typical Power Loss (W)
15 | 33 | 37 | 50
-
Operating Voltage (Max) (VAC)
690
-
Current Rating (Max) (A)
4 | 8 | 12 | 16
Body Features
-
Product Weight (kg)
11.5 | 15 | 18.5 | 21
-
Product Weight (lb)
25.353 | 33.069 | 40.785 | 46.297
Mechanical Attachment
-
Product Mount Type
Wall Mount
Dimensions
-
Product Width (mm)
90 | 140
-
Product Width (in)
3.54 | 5.51
-
Product Length (mm)
350 | 390
-
Product Length (in)
13.77 | 15.35
-
Product Height (mm)
150 | 180 | 215 | 230
-
Product Height (in)
5.9 | 7.08 | 8.46 | 9.05
Usage Conditions
-
Motor Cable Length (Max) (m)
500 | 1000
-
Motor Cable Length (Max) (ft)
1640.42 | 3280.84
Operation/Application
-
Operating Altitude (Max) (m)
2000
-
Level of Output Filtering
Differential & Common Mode Filtering
-
Motor Frequency (Hz)
200
Industry Standards
-
Certified To
CSA 22.2 No. 8 1986 | IEC/EN 60939 | UL 1283
-
Pollution Degree
PD3
-
IP Rating
IP20
-
UL Flammability Rating
UL 94V-2
Reference Number
-
TE Internal Number
CAT-PE4-F530
