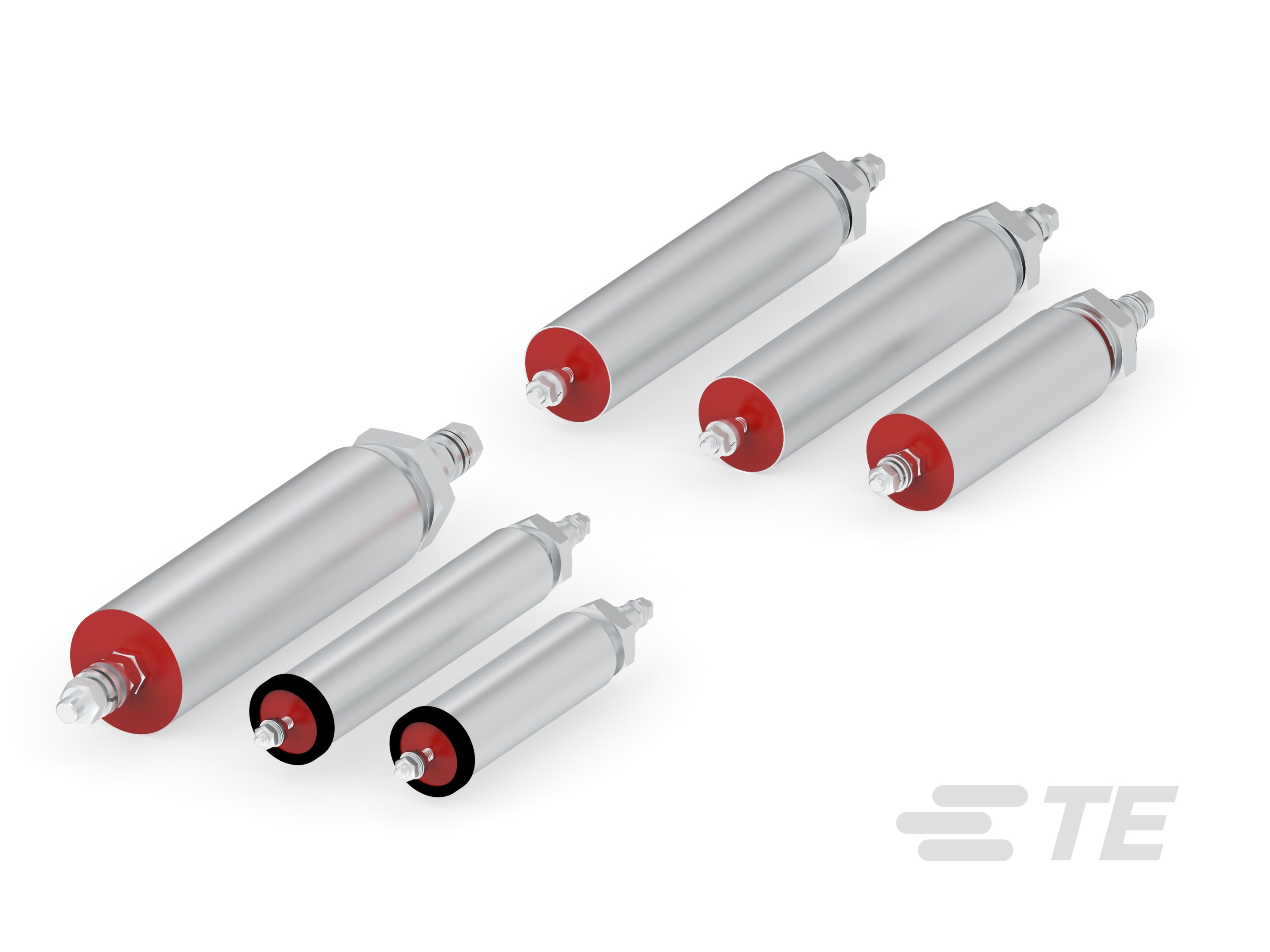

FN761

Please review product documents or contact us for the latest agency approval information.

• Input Termination Type  Threaded Stud

• Output Termination Type  Threaded Stud

• Operating Voltage (Max) (VDC) 1000

• Current Rating (Max) (A) 10, 16, 32, 63

• Leakage Current (Max) (250VAC, 50Hz) (mA) 1.89, 4.15, 8.86, 18.85, 28.3

• Product Weight (g) 55, 70, 80, 90, 250

• Product Weight (oz) 1.94, 2.46, 2.82, 3.17, 8.81

• Product Width (mm) 20, 25, 32

• Product Width (in) .78, .98, 1.25

• Product Length (mm) 107, 116, 140, 148, 173

• Product Length (in) 4.21, 4.56, 5.51, 5.82, 6.81

• Product Height (mm) 20, 25, 32

• Product Height (in) .78, .98, 1.25

• Operating Temperature Range  -40 – 100 °C [ -40 – 212 °F ]

• Cooling Method  Natural Convection

• IP Rating  IP00

• UL Flammability Rating  UL 94V-0

• Capacitor Class  Y2
