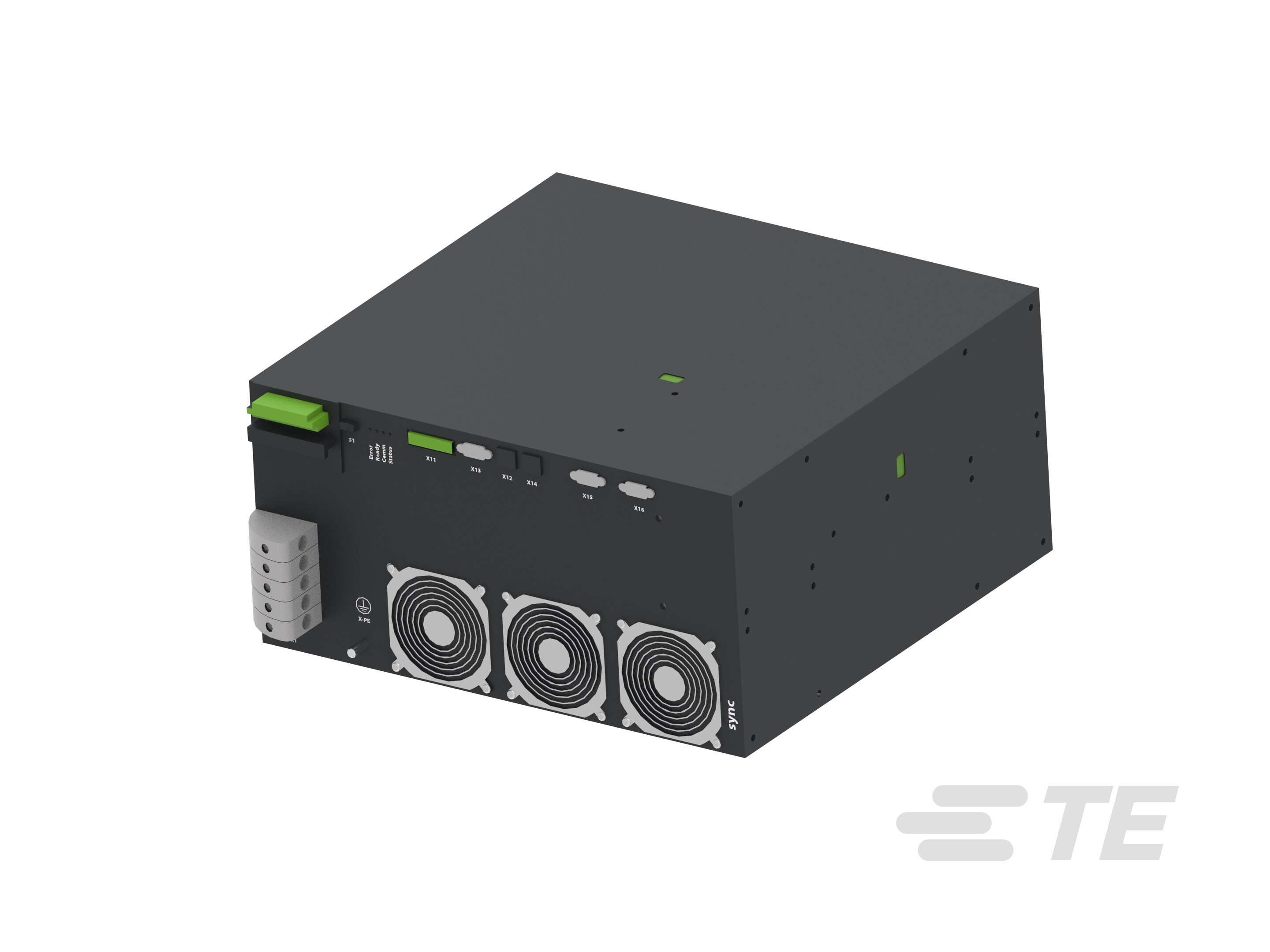

Ecosine Active Sync Double Power Pack & Power Module: 3-Phase 3-Wire Harmonic Filters

Ecosine Active Sync Double Power Pack & Power Module: 3-Phase 3-Wire Harmonic Filters-CAT-P99-F253
Compact, standalone Active Harmonic Filter solution for 3-wire systems, supporting mains voltages from 200–480 VAC with harmonic mitigation up to 60 A. Includes CT module for direct sensor connection. Modular and future-proof—expandable with additional Power or Sync Modules to meet growing capacity needs. IP20 is rated for safe operation; flexible mounting options include a wall (book/flat) or a rack (slide-in cabinet).
More Less

Product Features

  • Operating Voltage (Max) (VAC): 480

  • Mitigation Current (A): 60, 120

  • Wiring Configuration : DELTA (3 wire + ground)

  • IP Rating : IP20

  • Pollution Degree : PD2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  Ring Terminal

  • Output Termination Type  Ring Terminal

Configuration Features

  • Wiring Configuration  DELTA (3 wire + ground)

Electrical Characteristics

  • Operating Voltage (Max) (VAC) 480

  • Mitigation Current (A) 60, 120

Body Features

  • Product Weight (g) 44000, 89000

  • Product Weight (oz) 1552.05, 3139.38

Mechanical Attachment

  • Product Mount Type  Wall Mount

Dimensions

  • Product Width (mm) 420, 840

  • Product Width (in) 16.535, 33.071

  • Product Length  440 mm [ 17.323 in ]

  • Product Height  222 mm [ 8.74 in ]

Usage Conditions

  • Operating Temperature Range  0 – 50 °C [ 32 – 122 °F ]

Operation/Application

  • Product Options  Fuse

  • Cooling Method  Active Air Cooling

  • Operating Altitude (Max) (m) 1000

Industry Standards

  • IP Rating  IP20

  • Pollution Degree  PD2

Reference Number

  • TE Internal Number CAT-P99-F253
