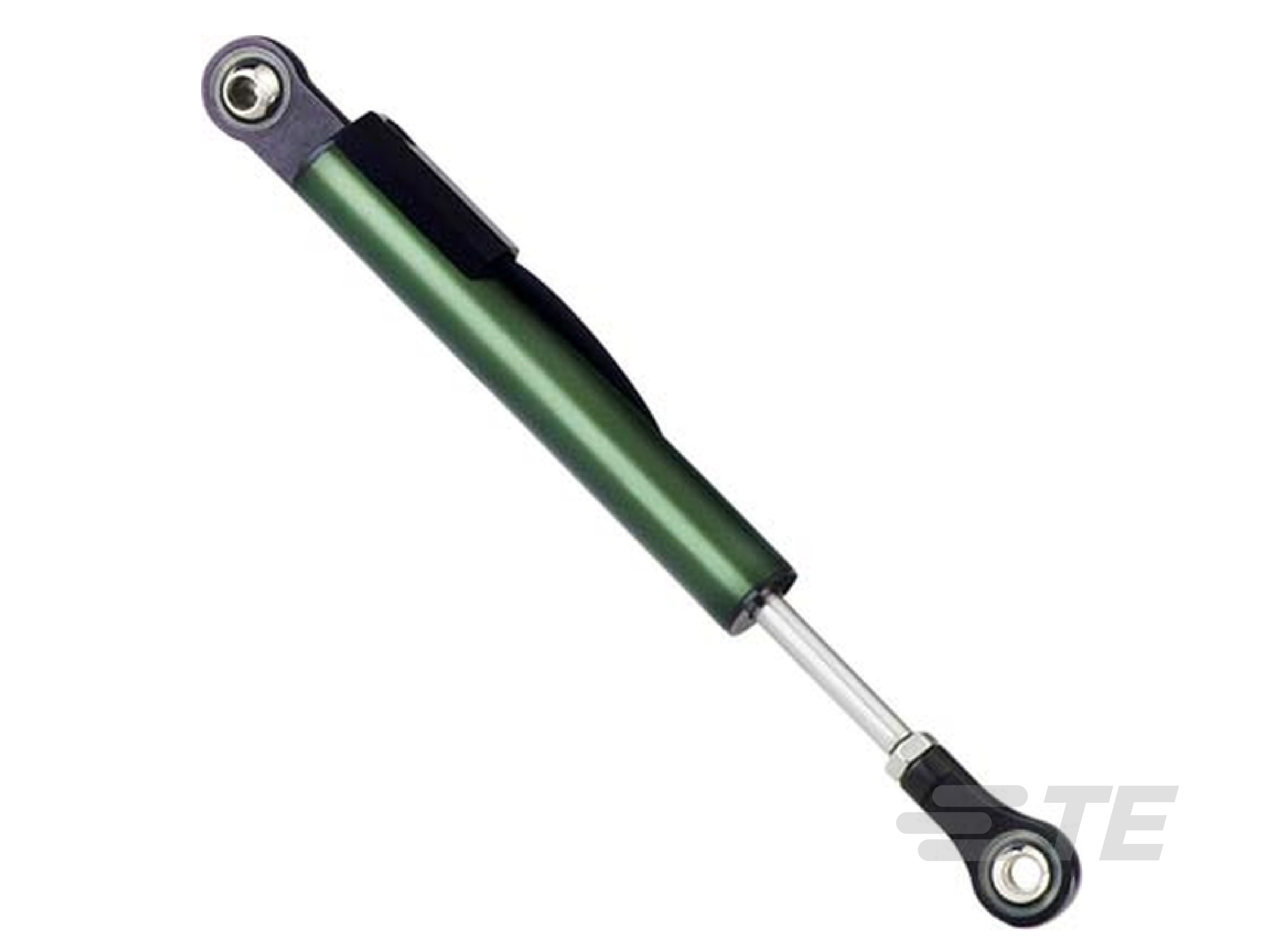

MINIATURE LINEAR POTENTIOMETER

MINIATURE LINEAR POTENTIOMETER-CAT-LDP0003
  • MEAS
|
  • MEAS MLP
Our miniature MLP series linear potentiometers offer unrivaled performance in an amazingly small size.
More Less
Connect with Us

Product Features

  • Product Diameter (in): .37

  • Full Stroke Range (mm): 12.5 | 25 | 50 | 75 | 100 | 125 | 150

  • Full Stroke Range (in): .5 | 1 | 2 | 3 | 4 | 5 | 6

  • Resistance Value (Ω): 1.25K | 2.5K | 5K | 7.5K | 10K

  • Linearity (%): .5 | 1

  • Product Weight (g): 24 | 26 | 29 | 33 | 37 | 43 | 46

Available from

LADD Inc
Overview

Though small, the MLP is environmentally robust (IP67), operates over a broad temperature range (-22° to 300°F) and is long lasting (>25 million cycles). These features make our miniature MLP linear potentiometer the perfect solution for many applications including industrial, medical, automotive, and motion control.

BENEFITS

  • Absolute Linear Position to 6 inches (150 mm)
  • 1.25K - 10K ohms
  • High Cycle, Industrial Automation, Test and Robotics Applications
  • IP67 Protection
  • Extended Temperature Range
  1. Formula E Position Sensor (English)

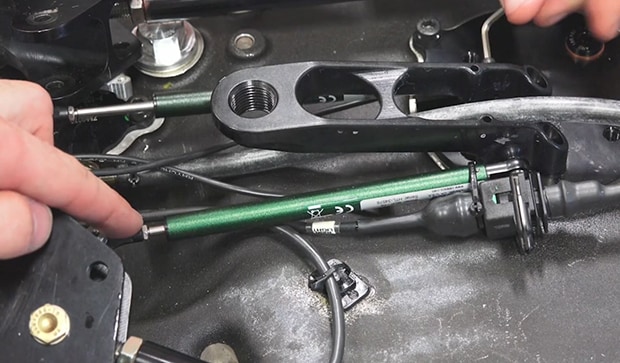

TE Connectivity's (TE) partnership with Andretti Technologies goes beyond the logo on a car. Learn from the Andretti team how the MLP series miniature linear potentiometer is used within the vehicle on the rear suspension.

formula e position sensor video
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Product Shape  Cylindrical

Electrical Characteristics

  • Resistance Value (Ω) 1.25K | 2.5K | 5K | 7.5K | 10K

  • Input Voltage (Max) (VDC) 42

  • Operating Wiper Current (max) (mA) 10

Body Features

  • Case Material  AL

  • Product Weight (g) 24 | 26 | 29 | 33 | 37 | 43 | 46

Dimensions

  • Product Diameter (in) .37

  • Repeatability (mm) .01

  • Full Stroke Range (mm) 12.5 | 25 | 50 | 75 | 100 | 125 | 150

  • Full Stroke Range (in) .5 | 1 | 2 | 3 | 4 | 5 | 6

Usage Conditions

  • Operating Temperature Range  -30 – 150 °C [ -22 – 302 °F ]

Operation/Application

  • Operating Speed (in/sec) 400

  • Vibration Resistance  10G's, 10 – 2000Hz

Industry Standards

  • IP Rating  IP67

Other

  • Linearity (%) .5 | 1

  • Life Expectancy (Cycles) 25000000

Reference Number

  • TE Internal Number CAT-LDP0003
