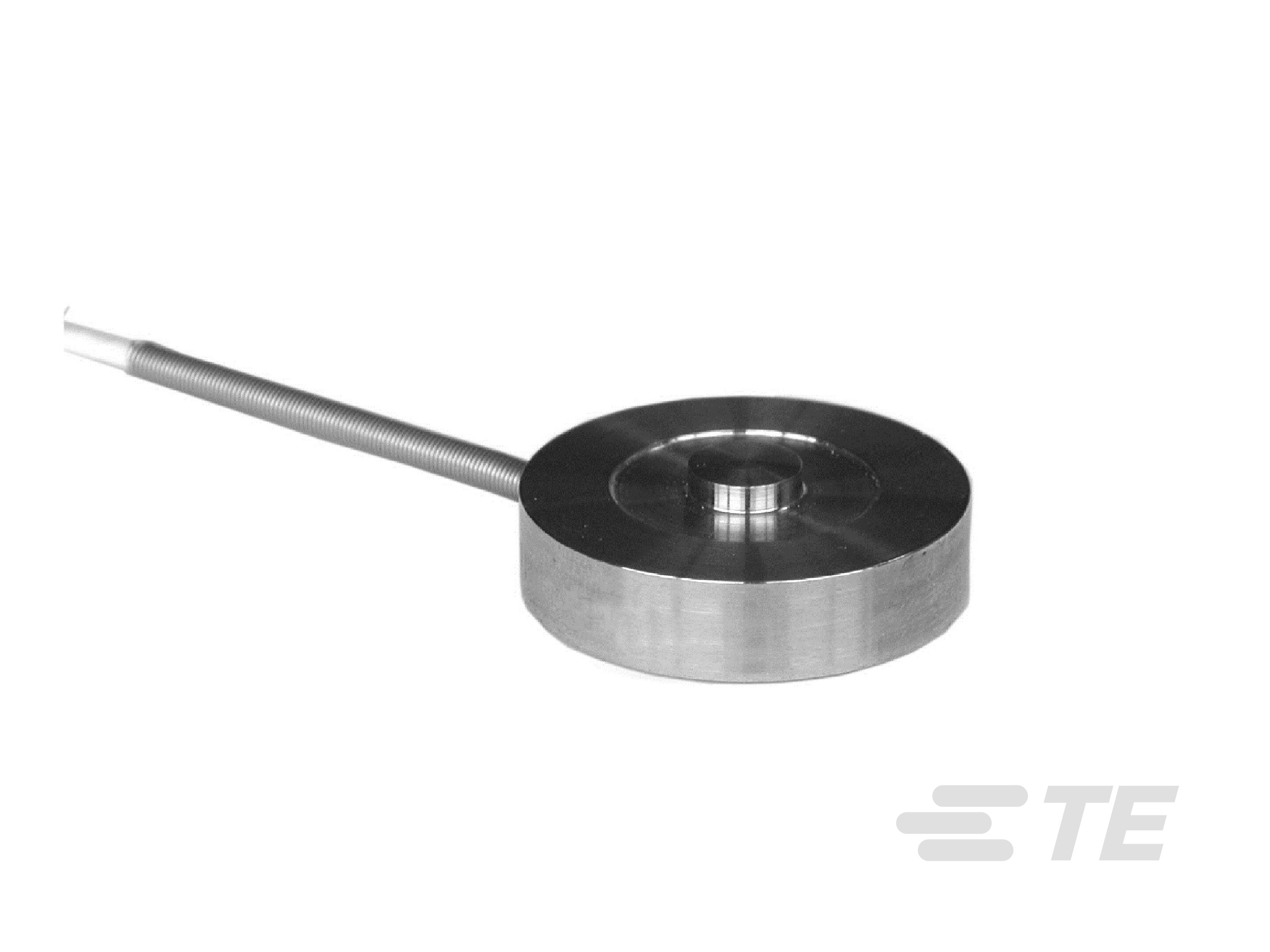

COMPACT COMPESSION LOAD CELL

COMPACT COMPESSION LOAD CELL-CAT-FLS0007
  • MEAS
More Less
Connect with Us

Product Features

  • Force Sensor Type : Force Load Cells

  • Force Direction : Compression

  • Full Scale Range (Newton): 0 – 25000 | 0 – 10000

  • Full Scale Range (lbf): 0 – 5600 | 0 – 22500

  • Operating Temperature Range : -20 – 80 °C [ -4 – 176 °F ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Force Sensor Type  Force Load Cells

Electrical Characteristics

  • Full Scale Range (Newton) 0 – 25000 | 0 – 10000

  • Full Scale Range (lbf) 0 – 5600 | 0 – 22500

  • Supply Voltage Range (VDC) 10

Usage Conditions

  • Operating Temperature Range  -20 – 80 °C [ -4 – 176 °F ]

  • Accuracy (% of FS) ±1

Operation/Application

  • Output Signal Type  1.5 mV/V | 1 mV/V

Industry Standards

  • IP Rating  IP50

Other

  • Force Direction  Compression

  • Zero Shift in CTR (%FS/°C) ±.5/60

  • Sensitivity Shift (%FS/°C) ±1.8/60
