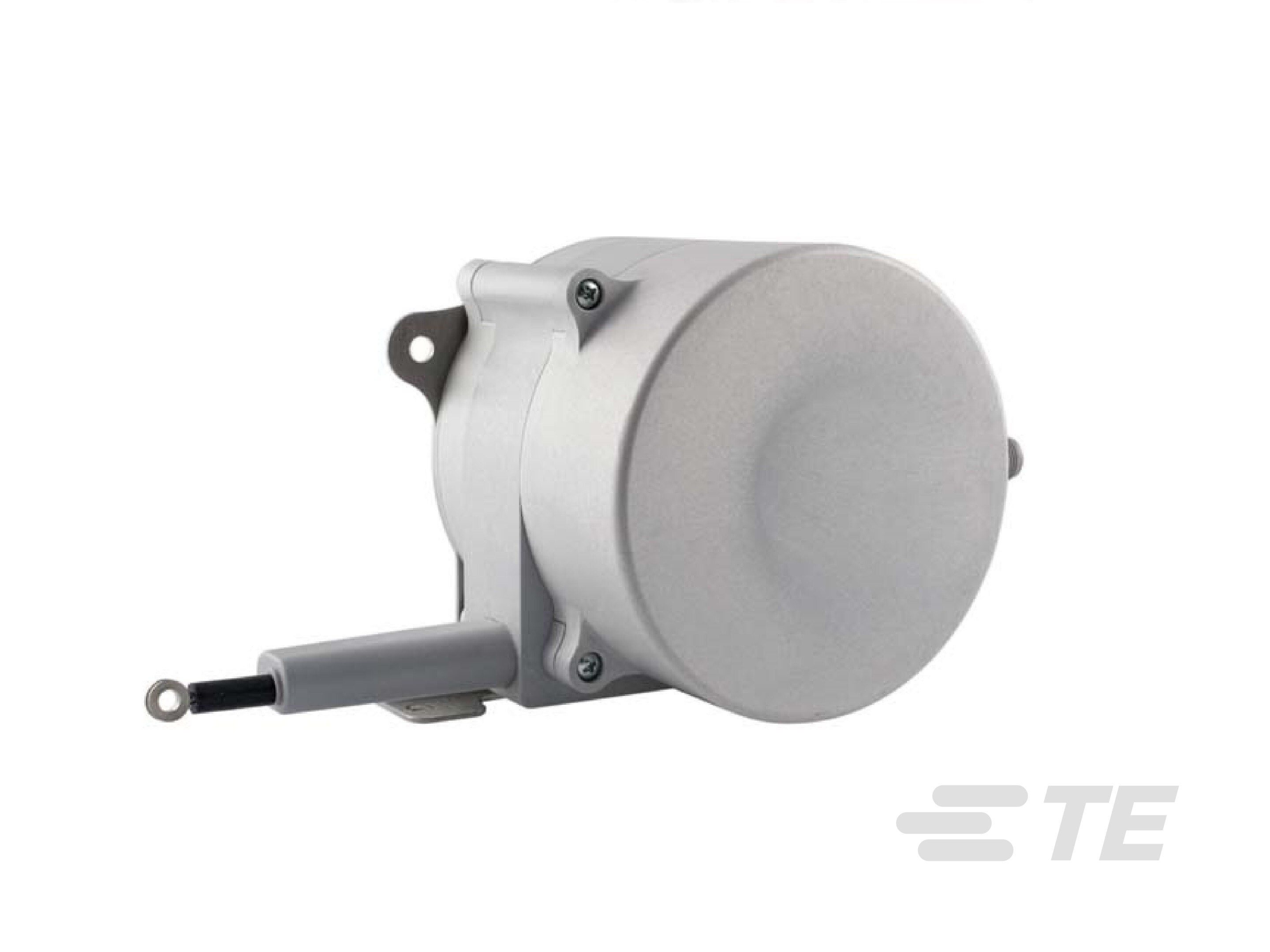

IP67 String Pots, VDC Output, SR1V

IP67 String Pots, VDC Output, SR1V-CAT-CAPS0073
  • MEAS
|
  • MEAS SR
The SR1V series user scalable VDC output string pot is a rugged, low-cost, high performance string pot built for wet environments and outdoor applications.
More Less

Product Features

  • Position Sensor Product Type : SR Series, IP67 String Pots

  • Full Stroke Range (mm): 3175, 4445

  • Full Stroke Range (in): 125, 175

  • Output Signal Type : 0 – 10 VDC

  • Accuracy (% of FS): ±.5

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview

Designed for the rigors of outdoor construction equipment or the demands of a factory floor, the SR1V string pot is the perfect low-cost solution for OEM and stocking distributors. What sets this sensor apart from other string pots, is the internal programmable digital circuitry that gives the customer a one-size-fits-all approach for many applications. The SR1V ships factory calibrated to the full stroke range but the output signal can be easily re-scaled to match any stroke down to 1 inch (25 mm).

Benefits

  • Signal user adjustable stroke range to 175 inches (3 meters)
  • User selectable 0–5, 0–10, –5–+5, –10–+10 VDC output
  • Designed for outdoor & IP67 environments
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  SR Series, IP67 String Pots

Body Features

  • Case Material  Polycarbonate + Stainless Mounting Bracket

Dimensions

  • Full Stroke Range (mm) 3175, 4445

  • Full Stroke Range (in) 125, 175

Usage Conditions

  • Accuracy (% of FS) ±.5

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

  • Digital Resolution (bit) 16

  • Output Signal Type  0 – 10 VDC

Industry Standards

  • IP Rating  IP67

Other

  • Repeatability (% of FS) .02

  • Encoder Drive  No

  • Measuring Cable  Nylon-Coated Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0073
