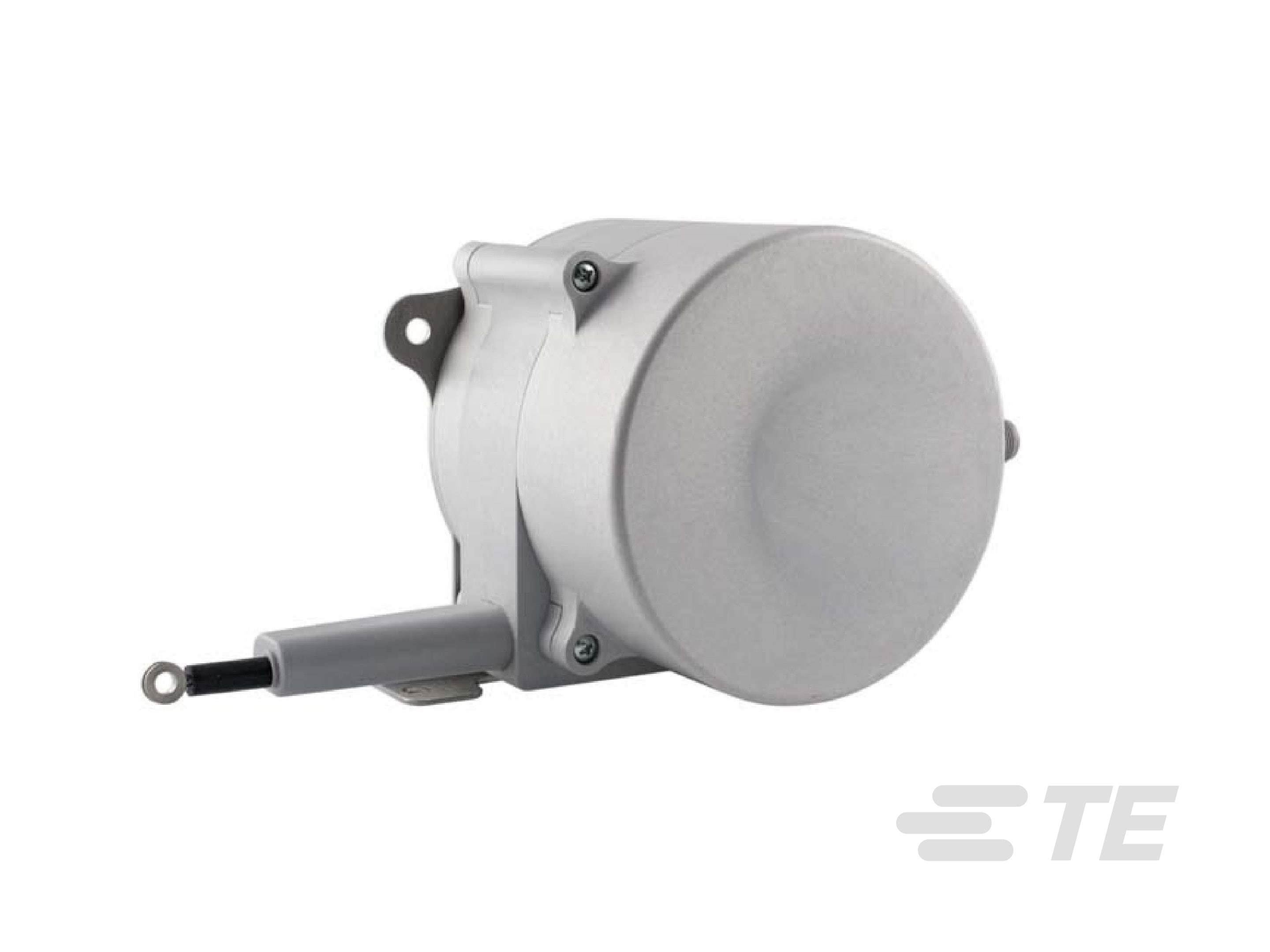

Industrial Voltage Divider String Pot

Industrial Voltage Divider String Pot-CAT-CAPS0072
  • MEAS
|
  • MEAS SR
The SR1A model industrial voltage divider string pot is designed for wet environments and outdoor applications. The SR1A is constructed of a rugged polycarbonate enclosure designed to withstand impact from harsh environments and rugged conditions. Mounting bracket and field installable mating connector included.
More Less

Product Features

  • Position Sensor Product Type: SR Series, IP67 String Pots

  • Output Signal Type: Voltage Divider (Potentiometric)

  • Accuracy(% of FS): ±.5

  • Repeatability(% of FS): .02

  • Case Material: Polycarbonate + Stainless Mounting Bracket

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  SR Series, IP67 String Pots

Body Features

  • Case Material  Polycarbonate + Stainless Mounting Bracket

Dimensions

  • Full Stroke Range (mm) 1587.5, 3175, 4445

  • Full Stroke Range (in) 62.5, 125, 175

Usage Conditions

  • Accuracy (% of FS) ±.5

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

  • Output Signal Type  Voltage Divider (Potentiometric)

Industry Standards

  • IP Rating  IP67

  • Hazardous Area Approval  No

Other

  • Repeatability (% of FS) .02

  • Encoder Drive  No

  • Measuring Cable  Nylon-Coated Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0072
