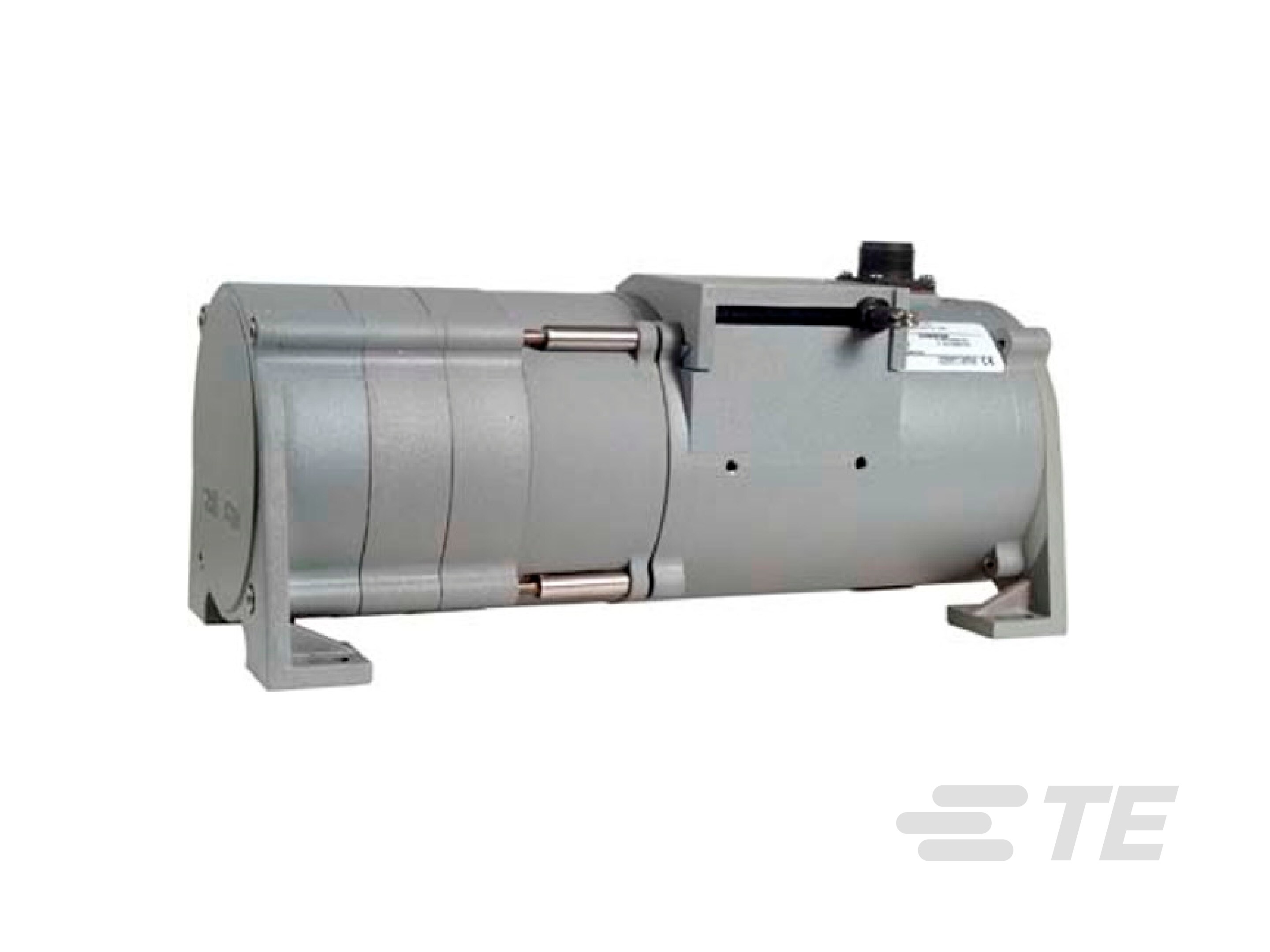

PT9EXT, HARSH-ENVIRONMENT SERIES

PT9EXT, HARSH-ENVIRONMENT SERIES-CAT-CAPS0049
  • MEAS
|
  • MEAS PT9301
The PT9301 Series Extended Range Velocity and Position Sensor is a combination position and velocity transducer for demanding long-range applications requiring a linear position measurements in ranges up to 1700”.
More Less
Connect with Us

Product Features

  • Position Sensor Product Type : Industrial String Potentiometer

  • Full Stroke Range : 38100 mm [ 1200 in ]

  • Output Signal Type : Voltage Divider (Potentiometric)

  • Accuracy (% of Full Scale): ±.1

  • Repeatability (% of Full Scale): .02

Available from

LADD Inc
Overview
The PT9301 Series Extended Range Velocity and Position Sensor is a combination position and velocity transducer for demanding long-range applications requiring a linear position measurements in ranges up to 1700”.

A precision plastic-hybrid potentiometer provides accurate position feedback while a self generating DC tachometer provides a velocity signal that is proportional to the speed of the traveling stainless-steel measuring cable.  As a member of our family of NEMA-4 rated cable-extension transducers, the PT9301 series extended range velocity and position sensor offers numerous benefits. It installs in minutes, functions properly without perfectly parallel alignment, and when its cable is retracted, it measures only 6”.

Benefits

  • Linear Position/Velocity to 1700 inches (4300 cm)
  • Stroke Range Options: 0-600 to 0-1700 inches
  • VLS Option to Prevent Free-Release Damage
  • IP68 / NEMA 6 Protection
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  Industrial String Potentiometer

Body Features

  • Case Material  Aluminum

Dimensions

  • Full Stroke Range  38100 mm [ 1200 in ]

Usage Conditions

  • Accuracy (% of Full Scale) ±.1

  • Operating Temperature Range  -40 – 90 °C [ -40 – 194 °F ]

Operation/Application

  • Output Signal Type  Voltage Divider (Potentiometric)

Industry Standards

  • IP Rating  IP67

Other

  • Encoder Drive  No

  • Repeatability (% of Full Scale) .02

  • Measuring Cable  .034 Inch Dia Nylon-Coated Stainless Steel
