PT9EXT, HARSH-ENVIRONMENT SERIES

PT9EXT, HARSH-ENVIRONMENT SERIES-CAT-CAPS0045
  • MEAS
|
  • MEAS PT9101

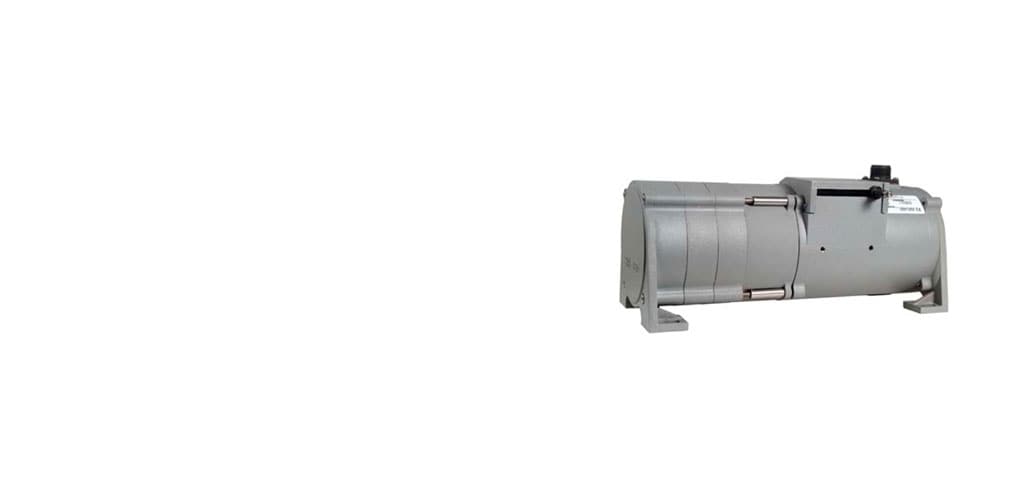

The PT9101 Series Extended Range Voltage Divider String Pot is a work-horse for demanding long-range applications requiring a linear position measurements in ranges up to 1700 inches.
More Less
Connect with Us

Product Features

  • Position Sensor Product Type : Industrial String Potentiometer | Velocity Limiting System

  • Full Stroke Range (mm): 15240 | 20320 | 25400 | 30480 | 38100 | 43180

  • Full Stroke Range (in): 600 | 800 | 1000 | 1200 | 1500 | 1700

  • Output Signal Type : Voltage Divider (Potentiometric)

  • Accuracy (% of Full Scale): ±.1

  • Repeatability (% of Full Scale): .02

Available from

LADD Inc
Overview
The PT9101 Series String Pot is a work-horse for demanding long-range applications requiring a linear position measurements in ranges up to 1700 inches.

Available with either a 500, 1K, 5K, or 10K ohm potentiometer, the PT9101 series voltage divider string pot operates with any basic panel meter or programmable controller. As a member of our family of NEMA 4 rated cable-extension transducers, the PT9101 string pot offers numerous benefits. It installs in minutes, works without perfect parallel alignment, and when its stainless-steel cable is retracted, it measures only 6”.

Benefits

  • Absolute Linear Position to 1700 inches (4300 cm)
  • Stroke Range Options: 0-600 to 0-1700 inches
  • VLS Option to Prevent Free-Release Damage
  • IP68 / NEMA 6 Protection
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  Industrial String Potentiometer | Velocity Limiting System

Body Features

  • Case Material  303 Stainless Steel | Aluminum | Stainless Steel

Dimensions

  • Full Stroke Range (mm) 15240 | 20320 | 25400 | 30480 | 38100 | 43180

  • Full Stroke Range (in) 600 | 800 | 1000 | 1200 | 1500 | 1700

Usage Conditions

  • Accuracy (% of Full Scale) ±.1

  • Operating Temperature Range (°C) -40 – 90

  • Operating Temperature Range (°F) -40 – 194 | -40 – 200

Operation/Application

  • Output Signal Type  Voltage Divider (Potentiometric)

Industry Standards

  • IP Rating  IP65 | IP67

Other

  • Encoder Drive  No

  • Repeatability (% of Full Scale) .02

  • Measuring Cable  .014 Inch Dia Nylon-Coated Stainless Steel | .019 Inch Dia Nylon-Coated Stainless Steel | .034 Inch Dia Nylon-Coated Stainless Steel | Bare Stainless Steel | Nylon-Coated Stainless Steel
