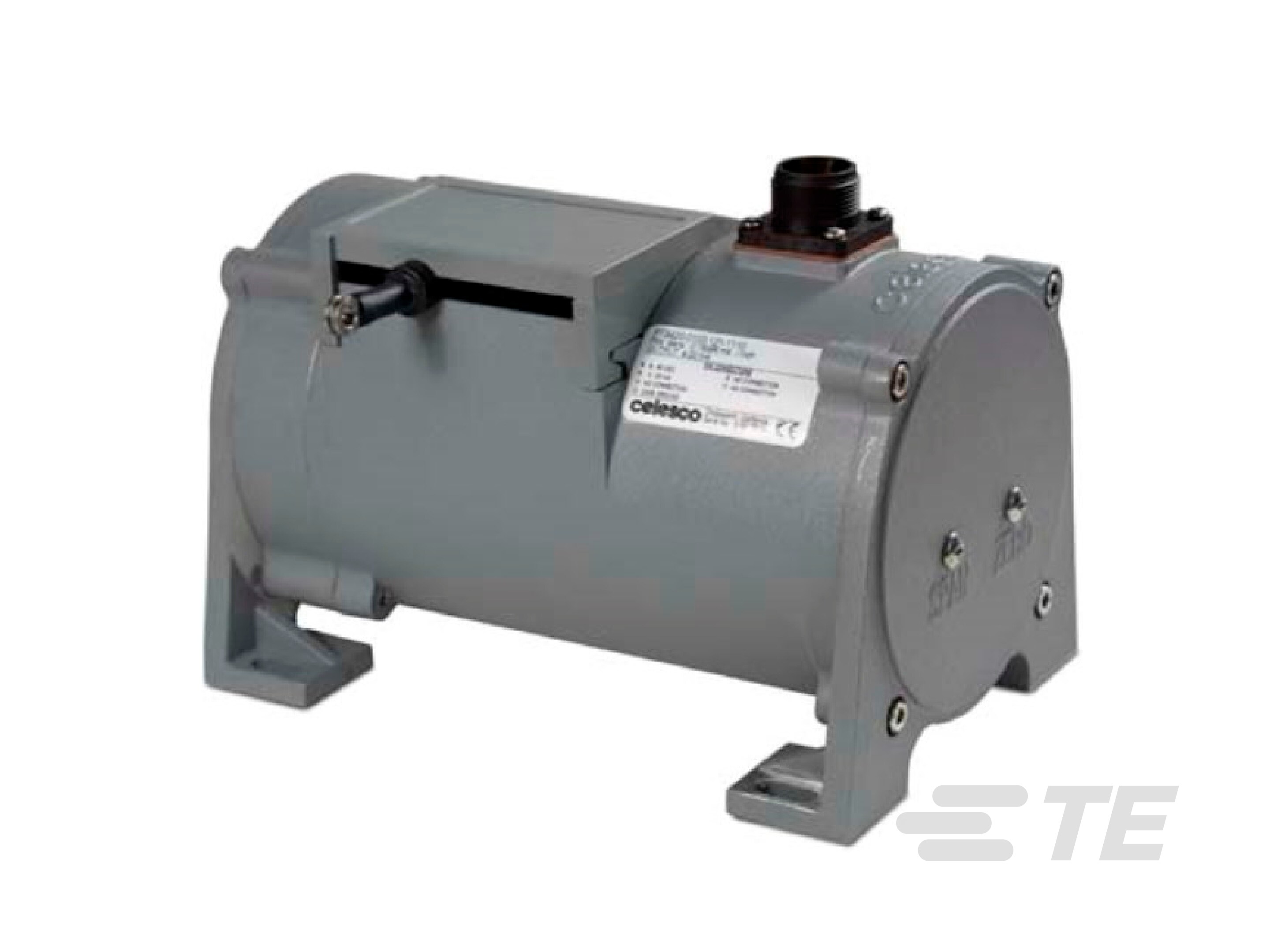

16 BIT RS232 STRING POT TRANSDUCER

16 BIT RS232 STRING POT TRANSDUCER-CAT-CAPS0042
  • MEAS
|
  • MEAS PT9
The PT9232 series string pot transducer delivers position feedback via RS232 serial communication to your data acquisition or controller system.
More Less
Connect with Us

Product Features

  • Position Sensor Product Type : Industrial String Potentiometer

  • Full Stroke Range (mm): 3810 | 5080 | 6350 | 7620 | 10160 | 11430 | 12700 | 13970

  • Full Stroke Range (in): 150 | 200 | 250 | 300 | 400 | 450 | 500 | 550

  • Output Signal Type : RS232

  • Accuracy (% of FS): ±.1

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview
The PT9232 string pot transducer delivers position feedback via RS232 serial communication to your data acquisition or controller system.

The PT9232 string pot transducer sends a raw 16-bit count from 0000H to FFFFH. Additionally this device can be set to continuously send data or send data only when polled. As the internal position sensing element is a precision potentiometer, this transducer maintains current accurate position even during power loss and does not need to be reset to a “home” position.

Benefits

  • Linear Position/Velocity to 550 inches (1400 cm)
  • Aluminum or Stainless Steel Enclosure Options
  • VLS Option to Prevent Free-Release Damage
  • IP68
  • NEMA 6 Protection
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  Industrial String Potentiometer

Body Features

  • Case Material  303 Stainless Steel | Aluminum | Stainless Steel

Dimensions

  • Full Stroke Range (mm) 3810 | 5080 | 6350 | 7620 | 10160 | 11430 | 12700 | 13970

  • Full Stroke Range (in) 150 | 200 | 250 | 300 | 400 | 450 | 500 | 550

Usage Conditions

  • Accuracy (% of FS) ±.1

  • Operating Temperature Range  -40 – 90 °C [ -40 – 194 °F ]

Operation/Application

  • Digital Resolution (bit) 16

  • Output Signal Type  RS232

Industry Standards

  • IP Rating  IP67

Other

  • Encoder Drive  No

  • Repeatability (% of FS) .02

  • Measuring Cable  .031 Inch Dia Bare Stainless Steel | .034 Inch Dia Nylon-Coated Stainless Steel | .047 Inch Dia Stainless Steel | .058 Inch Dia PVC Jacketed Vectra Fiber

Reference Number

  • TE Internal Number CAT-CAPS0042
