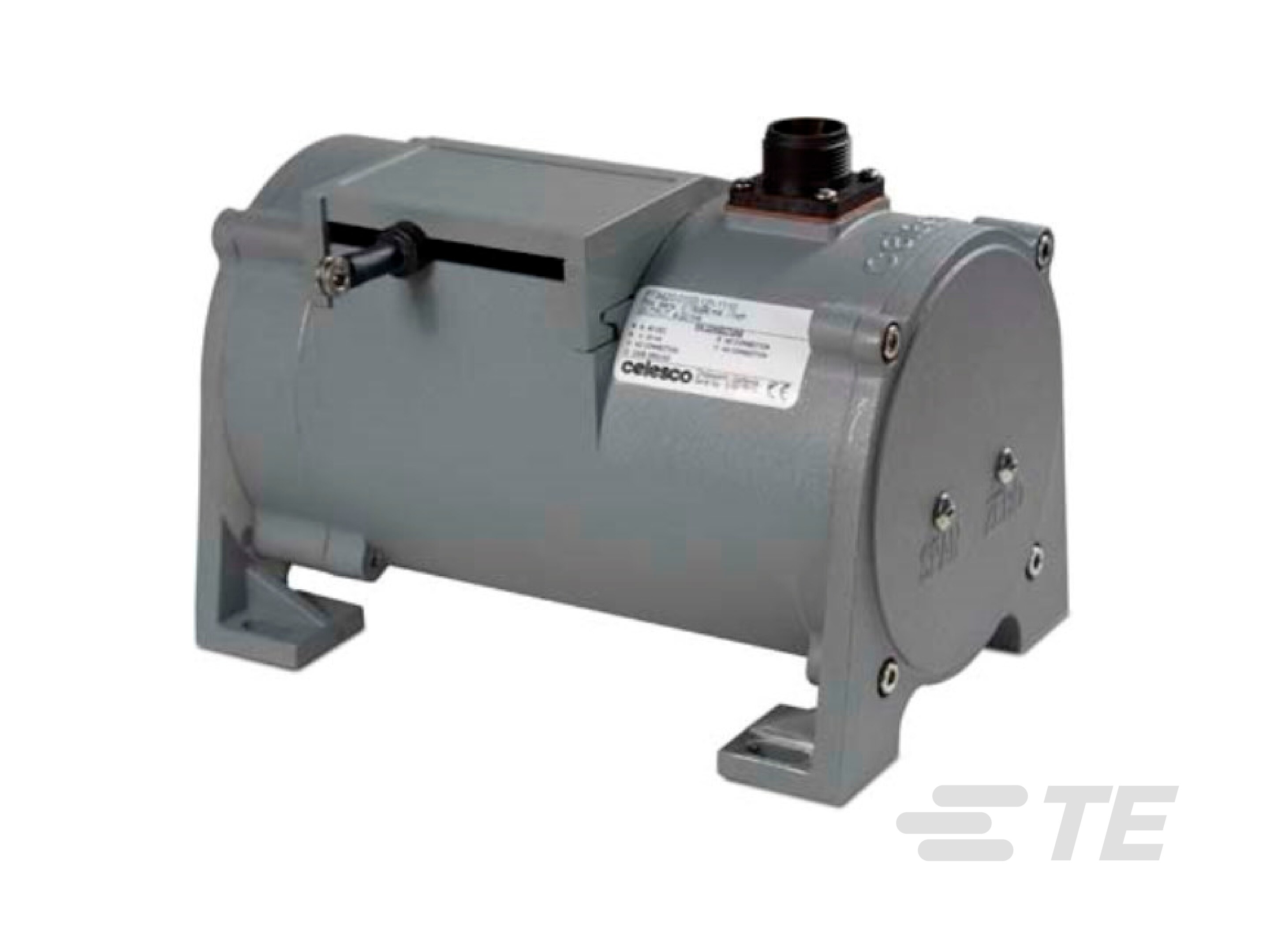

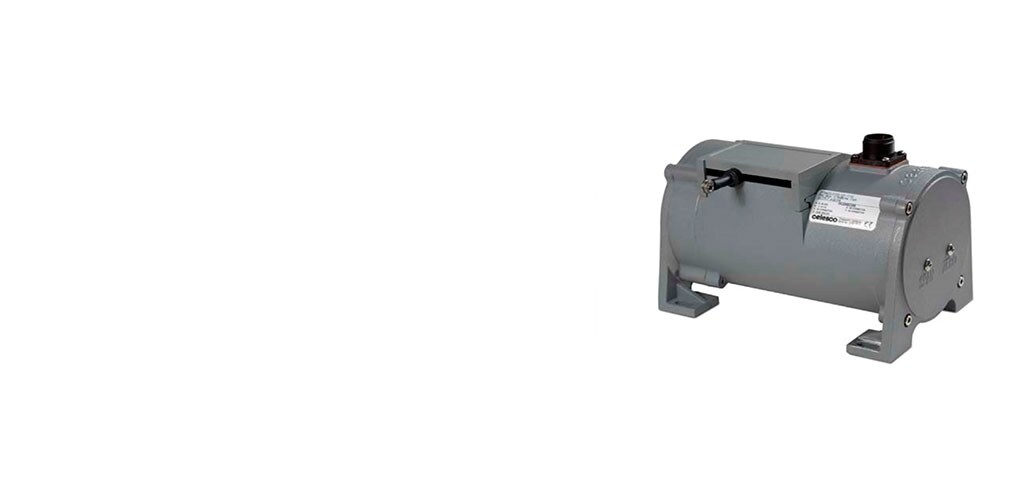

CAN OUTPUT NEMA 9 STRING POTENTIOMETER

CAN OUTPUT NEMA 9 STRING POTENTIOMETER-CAT-CAPS0039
  • MEAS
|
  • MEAS PT9
The PT9CN series NEMA 9 string potentiometer communicates linear position feedback via the CANbus SAE J1939 interface.
More Less
Connect with Us

Product Features

  • Position Sensor Product Type : Industrial String Potentiometer

  • Full Stroke Range (mm): 2540 | 3810 | 5080 | 8890 | 11430 | 13970 | 15240

  • Full Stroke Range (in): 100 | 150 | 200 | 350 | 450 | 550 | 600

  • Output Signal Type : CAN J1939

  • Accuracy (% of FS): ±.1

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview
The PT9CN NEMA 9 string potentiometer communicates linear position feedback via the CANbus SAE J1939 interface.

The PT9CN string potentiometer has been designed for factory and harsh environment applications requiring full stroke ranges up to 550”. As a member of our innovative family of NEMA 4 rated cable-extension transducers, the PT9CN installs in minutes by simply mounting its body to a fixed surface and attaching its cable to the movable object. Perfect parallel alignment not required.

Benefits

  • Linear Position/Velocity to 550 inches (1400 cm)
  • Aluminum or Stainless Steel Enclosure Options
  • IP67
  • NEMA 6 Protection
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  Industrial String Potentiometer

Body Features

  • Case Material  303 Stainless Steel | Aluminum | Stainless Steel

Dimensions

  • Full Stroke Range (mm) 2540 | 3810 | 5080 | 8890 | 11430 | 13970 | 15240

  • Full Stroke Range (in) 100 | 150 | 200 | 350 | 450 | 550 | 600

Usage Conditions

  • Accuracy (% of FS) ±.1

  • Operating Temperature Range  -40 – 90 °C [ -40 – 194 °F ]

Operation/Application

  • Output Signal Type  CAN J1939

Industry Standards

  • IP Rating  IP67

Other

  • Encoder Drive  No

  • Repeatability (% of FS) .02

  • Measuring Cable  .031 Inch Dia Bare Stainless Steel | .034 Inch Dia Nylon-Coated Stainless Steel | .047 Inch Dia Stainless Steel | .058 Inch Dia PVC Jacketed Vectra Fiber | Nylon-Coated Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0039
