Incremental Optical Encoder to 550 IN

Incremental Optical Encoder to 550 IN-CAT-CAPS0037
  • MEAS
|
  • MEAS PT9
The PT9150 series incremental optical encoder features an industrial design and provides the highest accuracy and longest life of any measurement device of its kind.
More Less
Connect with Us

Product Features

  • Position Sensor Product Type : Industrial String Potentiometer | PT9150 - Incremental Encoder | Velocity Limiting System

  • Full Stroke Range (mm): 1905 | 2500 | 2540 | 3750 | 3810 | 5000 | 5080 | 6250 | 6350 | 7500 | 7620 | 8750 | 8890 | 10000 | 10160 | 11250 | 11430 | 12500 | 12700 | 13750 | 13970

  • Full Stroke Range (in): 75 | 98.4 | 100 | 147.6 | 150 | 196.8 | 200 | 246.1 | 250 | 295.3 | 300 | 344.5 | 350 | 393.7 | 400 | 442.9 | 450 | 492.1 | 500 | 541.3 | 550

  • Output Signal Type : Incremental Encoder

  • Accuracy (% of FS): ±.04

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview
The PT9150 series incremental optical encoder features an industrial design and provides the highest accuracy and longest life of any measurement device of its kind.

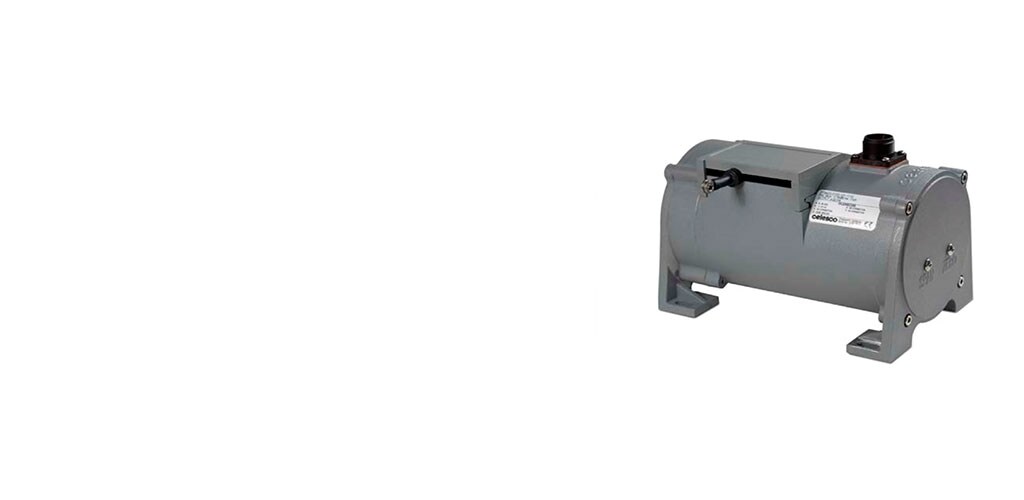

This heavy industrial cable actuated position sensor is available in a wide variety of resolutions and output stages to fit virtually any requirement. It can measure up to 550”, yet when its cable is retracted it is only 6” long. Its small size and low-cost-to-measurement ratio offers remarkable flexibility and value.

Benefits

  • Linear Position to 550 inches (1400 cm)
  • Aluminum or Stainless Steel Enclosure Options
  • VLS Option to Prevent Free-Release Damage
  • IP67 / NEMA 6 Protection
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  Industrial String Potentiometer | PT9150 - Incremental Encoder | Velocity Limiting System

Body Features

  • Case Material  303 Stainless Steel | Aluminum | Stainless Steel

Dimensions

  • Full Stroke Range (mm) 1905 | 2500 | 2540 | 3750 | 3810 | 5000 | 5080 | 6250 | 6350 | 7500 | 7620 | 8750 | 8890 | 10000 | 10160 | 11250 | 11430 | 12500 | 12700 | 13750 | 13970

  • Full Stroke Range (in) 75 | 98.4 | 100 | 147.6 | 150 | 196.8 | 200 | 246.1 | 250 | 295.3 | 300 | 344.5 | 350 | 393.7 | 400 | 442.9 | 450 | 492.1 | 500 | 541.3 | 550

Usage Conditions

  • Accuracy (% of FS) ±.04

  • Operating Temperature Range  -18 – 71 °C [ 0 – 160 °F ]

Operation/Application

  • Resolution (ppmm) 2540 | 6350

  • Output Signal Type  Incremental Encoder

Industry Standards

  • IP Rating  IP65 | IP67

Other

  • Encoder Drive  No

  • Repeatability (% of FS) .02

  • Measuring Cable  .031 Inch Dia Bare Stainless Steel | .034 Inch Dia Nylon-Coated Stainless Steel | .047 Inch Dia Stainless Steel | .058 Inch Dia PVC Jacketed Vectra Fiber | Bare Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0037
