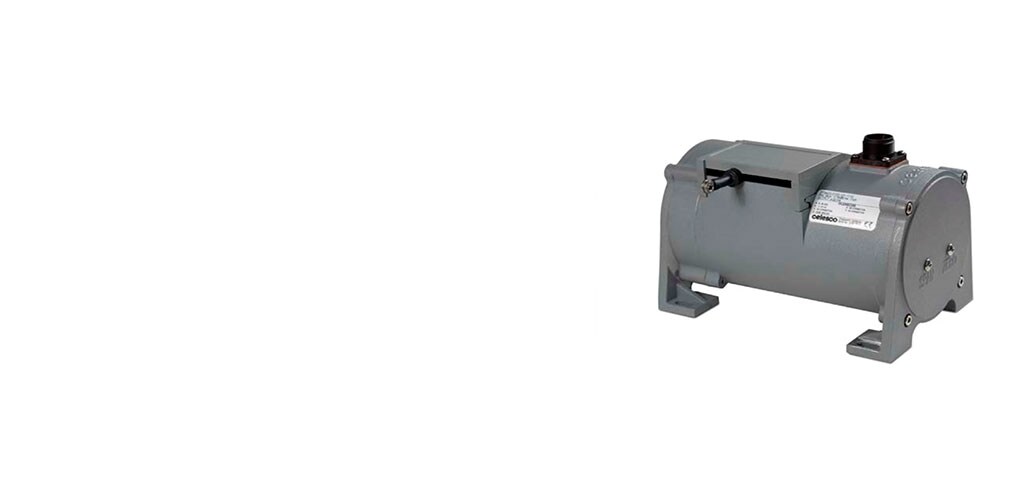

4 to 20mA NEMA 6 String Potentiometer

MEAS

MEAS PT9

The PT9420 series NEMA 6 string potentiometer is a great value for demanding long-range applications requiring a 4-20mA linear position feedback signal.

More Less

Datasheet |

Connect with Us

Product Features

Position Sensor Product Type : Industrial String Potentiometer | Velocity Limiting System
Full Stroke Range (mm): 1905 | 2540 | 3810 | 5080 | 6350 | 7620 | 8890 | 10160 | 11430 | 12700 | 13970 | 15240 | 20320 | 25400
Full Stroke Range (in): 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 800 | 1000
Output Signal Details : 0 – 20 mA | 20 – 0 mA | 20 – 4 mA | 4 – 20 mA
Accuracy (% des Endwerts): ±.12
Repeatability (% des Endwerts): .05
