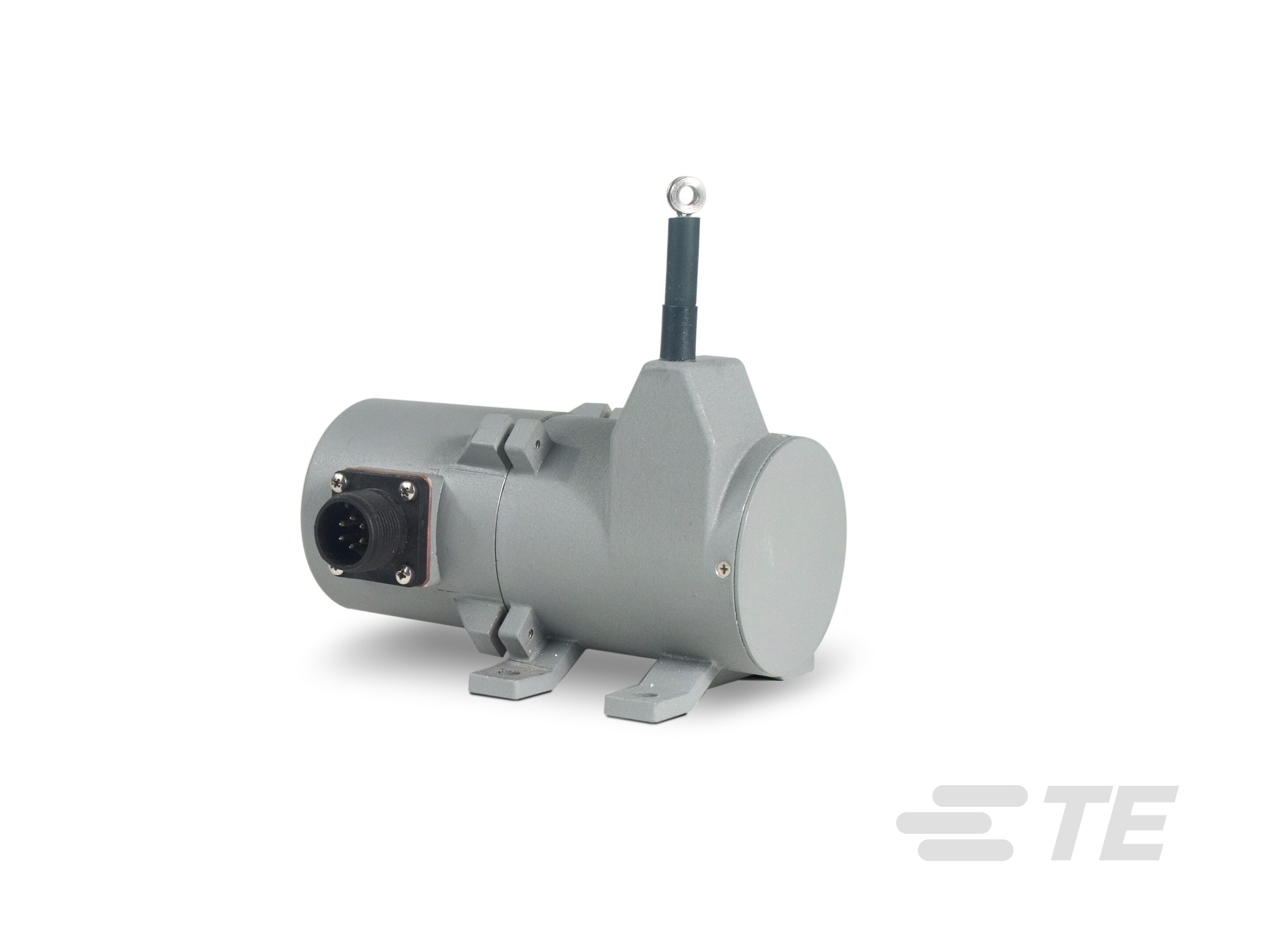

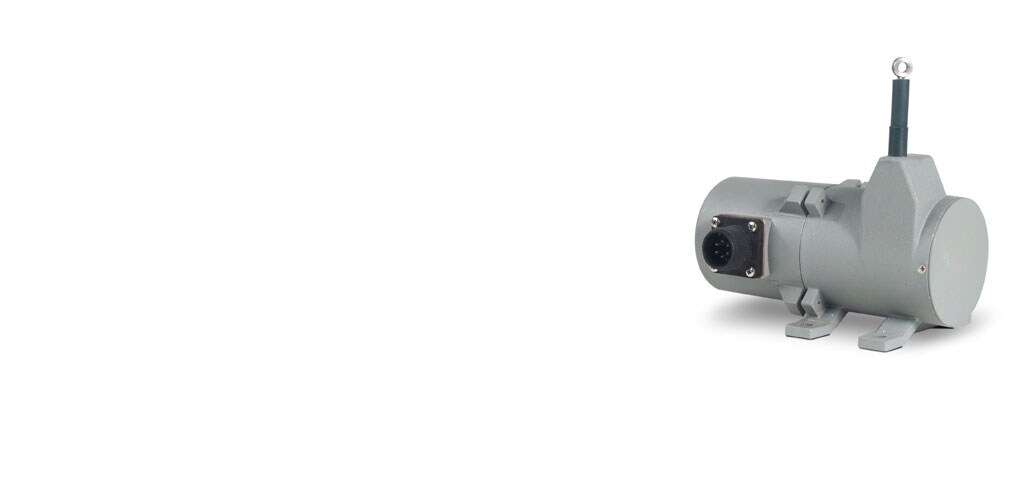

0 to 5V & 0 to 10V STRING POT to 60IN

MEAS

MEAS PT8510

The PT8510 series string pot can operate from an unregulated 14.5 to 40 VDC power supply while providing an output signal that is proportional to the linear movement of its measuring cable.

More Less

Datasheet |

Connect with Us

Product Features

Position Sensor Product Type : Industrial String Potentiometer
Full Stroke Range (mm): 50.8 | 127 | 254 | 381 | 508 | 635 | 762 | 1016 | 1270 | 1524
Full Stroke Range (in): 2 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60
Output Signal Details : ±10 VDC | ±5 VDC | 0 – 10 VDC | 0 – 5 VDC | 10 – 0 VDC | 5 – 0 VDC
Accuracy ('% del valor final): ±.15 | ±.18 | ±1
Repeatability ('% del valor final): .02 | .05

Available from

Product	TE Part #	Full Stroke Range	Output Signal Details	Accuracy	Repeatability	Case Material	IP Rating	Measuring Cable	EU RoHS Compliance	EU ELV Compliance
PT8510-0005-521-1531	04-0760-0872	127 mm	±10 VDC	±1 '% del valor final	.05 '% del valor final	Aluminum	IP65	.047 Inch Dia Stainless Steel	-	-
PT8510-0005-111-1110	04-0981-0012	127 mm	0 – 10 VDC	±1 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0010-111-1110	04-0981-0013	254 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0015-111-1110	04-0981-0014	381 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0020-111-1110	04-0981-0015	508 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0025-111-1110	04-0981-0016	635 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0030-111-1110	04-0981-0017	762 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0040-111-1110	04-0981-0018	1016 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0050-111-1110	04-0981-0019	1270 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0060-111-1110	04-0981-0020	1524 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0005-311-1110	04-0981-0034	127 mm	0 – 10 VDC	±1 '% del valor final	.05 '% del valor final	Stainless Steel	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0040-311-1110	04-0981-0035	1016 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Stainless Steel	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0015-111-1210	04-0981-0041	381 mm	10 – 0 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0040-211-1110	04-0981-0047	1016 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0060-211-1111	04-0981-0050	1524 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0040-111-1111	04-0981-0051	1016 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0030-121-1110	04-0981-0068	762 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0025-121-1111	04-0981-0073	635 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0020-321-1120	04-0981-0091	508 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Stainless Steel	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0040-211-1111	04-0981-0093	1016 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0030-421-1120	04-0981-0120	762 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Stainless Steel	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0015-121-1110	04-0981-0133	381 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0060-211-1110	04-0981-0145	1524 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0015-221-1130	04-0981-0151	381 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP65	.047 Inch Dia Stainless Steel	-	-
PT8510-0025-221-1130	04-0981-0152	635 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP65	.047 Inch Dia Stainless Steel	-	-
PT8510-0005-121-1120	04-0981-0165	127 mm	0 – 10 VDC	±1 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0050-111-1310	04-0981-0171	1270 mm	0 – 5 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0020-111-1120	04-0981-0172	508 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0010-111-1310	04-0981-0178	254 mm	0 – 5 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0030-221-1120	04-0981-0184	762 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0010-111-1112	04-0981-0194	254 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0005-321-1110	04-0981-0195	127 mm	0 – 10 VDC	±1 '% del valor final	.05 '% del valor final	Stainless Steel	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0020-121-1120	04-0981-0196	508 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0025-121-1120	04-0981-0197	635 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0030-121-1120	04-0981-0198	762 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0025-121-1110	04-0981-0200	635 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0010-111-1210	04-0981-0206	254 mm	10 – 0 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0005-121-1110	04-0981-0207	127 mm	0 – 10 VDC	±1 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0030-111-1113	04-0981-0208	762 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0050-211-1110	04-0981-0215	1270 mm	0 – 10 VDC	±.15 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0005-221-1210	04-0981-0218	127 mm	10 – 0 VDC	±1 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0015-111-1120	04-0981-0234	381 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0020-221-1110	04-0981-0242	508 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0030-121-1210	04-0981-0250	762 mm	10 – 0 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0015-311-1120	04-0981-0255	381 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Stainless Steel	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0010-311-1120	04-0981-0259	254 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Stainless Steel	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0030-221-1110	04-0981-0274	762 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0020-321-1110	04-0981-0279	508 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Stainless Steel	IP67	.047 Inch Dia Stainless Steel	-	-
PT8510-0025-211-1111	04-0981-0297	635 mm	0 – 10 VDC	±.18 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-
PT8510-0005-211-1110	04-0981-0305	127 mm	0 – 10 VDC	±1 '% del valor final	.05 '% del valor final	Aluminum	IP67	.034 Inch Dia Nylon-Coated Stainless Steel	-	-

Overview

The PT8510 series string pot can operate from an unregulated 14.5 to 40 VDC power supply while providing an output signal that is proportional to the linear movement of its measuring cable.

The PT8510 string pot has a maximum measurement range up to 60” and has 4 output signal options to choose from: 0...10, 0...5, -10...+10 and -5...+5 VDC. As a member of our innovative family of NEMA-4 rated cable-extension transducers, the PT8510 offers numerous benefits. It installs in minutes, fits into areas unsuited for rod-type measurement devices, and works without perfectly parallel alignment.

Benefits

Absolute Linear Position to 60 inches (1524 mm)
Aluminum or Stainless Steel Enclosure Options
VLS Option to Prevent Free-Release Damage
IP68
NEMA 6 Protection

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Position Sensor Product Type Industrial String Potentiometer

Body Features

Case Material 303 Stainless Steel | 316 Stainless Steel | Aluminum | Stainless Steel

Dimensions

Full Stroke Range (mm) 50.8 | 127 | 254 | 381 | 508 | 635 | 762 | 1016 | 1270 | 1524
Full Stroke Range (in) 2 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60

Usage Conditions

Accuracy ('% del valor final) ±.15 | ±.18 | ±1
Operating Temperature Range -40 – 90 °C [ -40 – 194 °F ]

Operation/Application

Output Signal Details ±10 VDC | ±5 VDC | 0 – 10 VDC | 0 – 5 VDC | 10 – 0 VDC | 5 – 0 VDC

Industry Standards

IP Rating IP65 | IP67 | IP68

Other

Encoder Drive No
Repeatability ('% del valor final) .02 | .05
Measuring Cable .031 Inch Dia Bare Stainless Steel | .034 Inch Dia Nylon-Coated Stainless Steel | .047 Inch Dia Stainless Steel | .058 Inch Dia PVC Jacketed Vectra Fiber

Related Materials

Datasheets & Catalog Pages

PT8510 pdf English

0 to 5V & 0 to 10V STRING POT to 60IN

Product Features

Position Sensor Product Type : Industrial String Potentiometer

Full Stroke Range (mm): 50.8 | 127 | 254 | 381 | 508 | 635 | 762 | 1016 | 1270 | 1524

Full Stroke Range (in): 2 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60

Output Signal Details : ±10 VDC | ±5 VDC | 0 – 10 VDC | 0 – 5 VDC | 10 – 0 VDC | 5 – 0 VDC

Accuracy ('% del valor final): ±.15 | ±.18 | ±1

Repeatability ('% del valor final): .02 | .05

Benefits

Product Type Features

Position Sensor Product Type Industrial String Potentiometer

Body Features

Case Material 303 Stainless Steel | 316 Stainless Steel | Aluminum | Stainless Steel

Dimensions

Full Stroke Range (mm) 50.8 | 127 | 254 | 381 | 508 | 635 | 762 | 1016 | 1270 | 1524

Full Stroke Range (in) 2 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60

Usage Conditions

Accuracy ('% del valor final) ±.15 | ±.18 | ±1

Operating Temperature Range -40 – 90 °C [ -40 – 194 °F ]

Operation/Application

Output Signal Details ±10 VDC | ±5 VDC | 0 – 10 VDC | 0 – 5 VDC | 10 – 0 VDC | 5 – 0 VDC

Industry Standards

IP Rating IP65 | IP67 | IP68

Other

Encoder Drive No

Repeatability ('% del valor final) .02 | .05

Measuring Cable .031 Inch Dia Bare Stainless Steel | .034 Inch Dia Nylon-Coated Stainless Steel | .047 Inch Dia Stainless Steel | .058 Inch Dia PVC Jacketed Vectra Fiber

Datasheets & Catalog Pages
