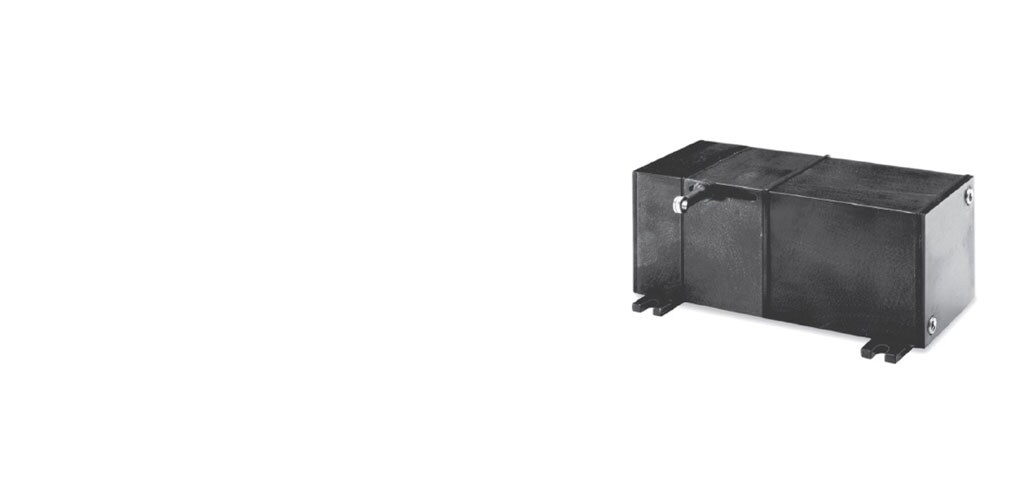

VOLTAGE OUT INDUSTRIAL STRING POT

MEAS

MEAS PT5

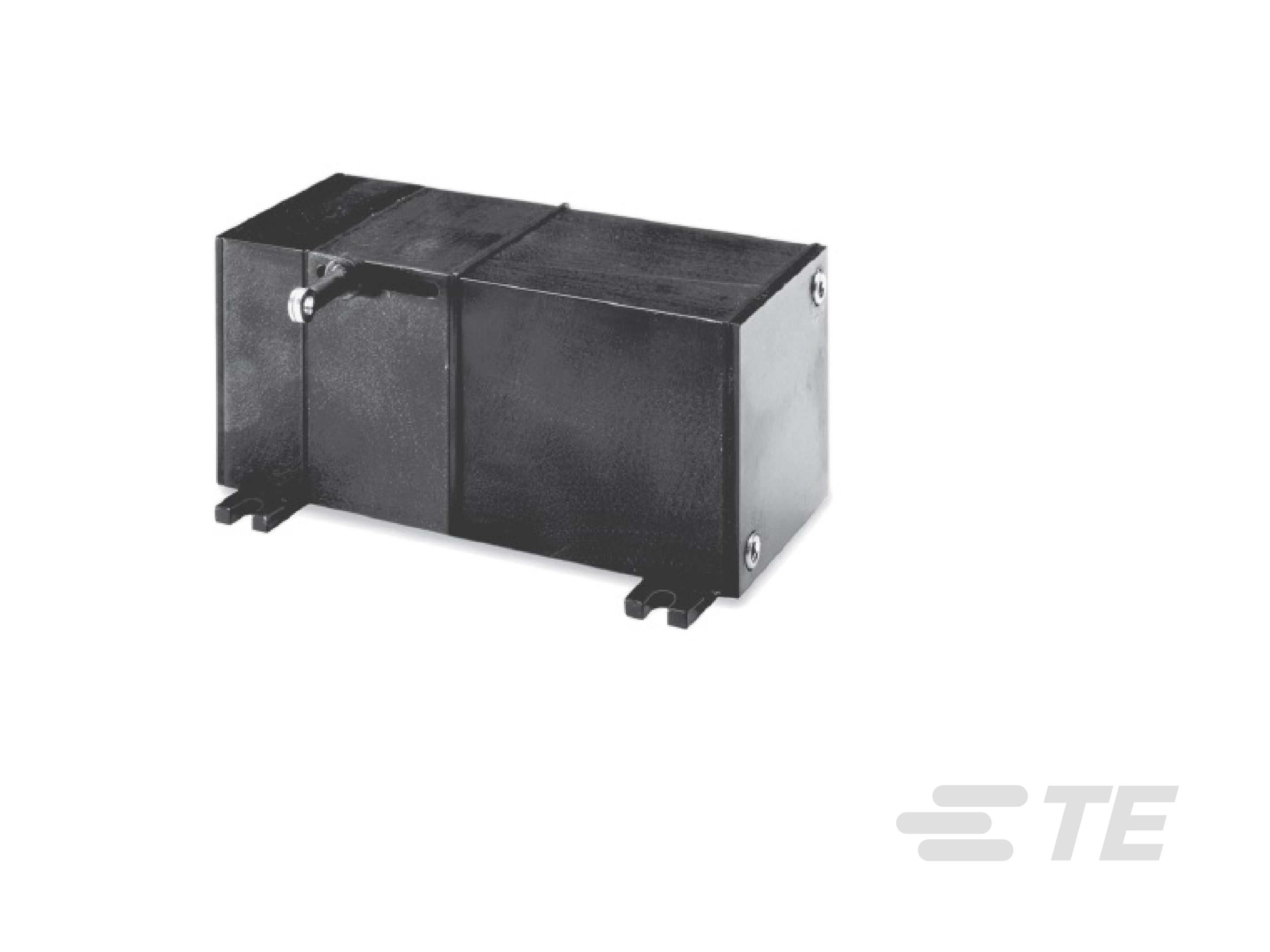

The PT5DC series 0-5V / 0-10V industrial string pot offers a unique V62 thermoplastic cable that has virtually an infinite fatigue life for high cycle and rugged applications with full stroke range options up to 250 inches.

More Less

Datasheet |

Connect with Us

Product Features

Position Sensor Product Type : Industrial String Potentiometer
Full Stroke Range (mm): 254 | 381 | 508 | 635 | 762 | 1016 | 1270 | 1524 | 2032 | 2540 | 3175 | 3810 | 5080 | 6350
Full Stroke Range (in): 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 125 | 150 | 200 | 250
Output Signal Details : ±10 VDC | ±5 VDC | 0 – 10 VDC | 0 – 5 VDC | 10 – 0 VDC | 5 – 0 VDC
Accuracy ('% des Endwerts): ±.18 | ±.25 | ±.3 | ±.5 | ±.6 | ±.75
Repeatability ('% des Endwerts): .02 | .05 | .1

Available from

Product	TE Part #	Full Stroke Range	Output Signal Details	Accuracy	Repeatability	IP Rating	Measuring Cable	EU RoHS Compliance
PT5DC-60-V62-UP-Z10-M6	04-1006-0011	1524 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-40-V62-UP-Z10-M6	04-1006-0014	1016 mm	0 – 10 VDC	±.3 '% des Endwerts	.05 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-125-V62-FR-Z10-M6	04-1006-0026	3175 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-40-S47-FR-Z10-M6	04-1006-0059	1016 mm	0 – 10 VDC	±.3 '% des Endwerts	.05 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-100-S47-FR-Z10-M6	04-1006-0075	2540 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-125-V62-DN-Z10-M6	04-1006-0079	3175 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-60-V62-BK-Z10-M6	04-1006-0080	1524 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-125-V62-UP-Z10-M6M	04-1006-0085	3175 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-100-V62-UP-Z5-M6M	04-1006-0086	2540 mm	0 – 5 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-10-S47-FR-Z10-M6	04-1006-0087	254 mm	0 – 10 VDC	±.75 '% des Endwerts	.1 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-50-V62-FR-Z5-M6	04-1006-0095	1270 mm	0 – 5 VDC	±.3 '% des Endwerts	.05 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-80-V62-BK-Z10-M6	04-1006-0099	2032 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-30-V62-UP-Z10-M6M	04-1006-0103	762 mm	0 – 10 VDC	±.5 '% des Endwerts	.05 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-60-V62-BK-Z10-M6M	04-1006-0111	1524 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-30-S47-UP-Z10-M6	04-1006-0112	762 mm	0 – 10 VDC	±.5 '% des Endwerts	.05 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-100-V62-UP-Z5-M6	04-1006-0113	2540 mm	0 – 5 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-125-V62-UP-Z10-M6	04-1006-0116	3175 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-125-S47-UP-Z10-M6	04-1006-0119	3175 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-40-V62-UP-Z10-M6M	04-1006-0121	1016 mm	0 – 10 VDC	±.3 '% des Endwerts	.05 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-60-S47-FR-Z10-M6	04-1006-0128	1524 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-100-S47-FR-Z10-M6M	04-1006-0132	2540 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP65	.047 Inch Dia Stainless Steel	-
PT5DC-30-S47-FR-Z10-M6M	04-1006-0133	762 mm	0 – 10 VDC	±.5 '% des Endwerts	.05 '% des Endwerts	IP65	.047 Inch Dia Stainless Steel	-
PT5DC-30-V62-FR-Z10-M6	04-1006-0144	762 mm	0 – 10 VDC	±.5 '% des Endwerts	.05 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-30-V62-FR-Z10-M6M	04-1006-0155	762 mm	0 – 10 VDC	±.5 '% des Endwerts	.05 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-50-S47-UP-Z10-M6	04-1006-0161	1270 mm	0 – 10 VDC	±.3 '% des Endwerts	.05 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-60-S47-UP-Z10-M6	04-1006-0162	1524 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-80-S47-UP-Z10-M6	04-1006-0163	2032 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-100-S47-UP-Z10-M6	04-1006-0164	2540 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-40-S47-UP-Z10-M6	04-1006-0165	1016 mm	0 – 10 VDC	±.3 '% des Endwerts	.05 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-80-V62-UP-Z10-M6	04-1006-0171	2032 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-40-V62-FR-Z10-M6	04-1006-0194	1016 mm	0 – 10 VDC	±.3 '% des Endwerts	.05 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-25-V62-FR-10Z-M6	04-1006-0198	635 mm	10 – 0 VDC	±.5 '% des Endwerts	.05 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-100-V62-UP-Z10-M6M	04-1006-0201	2540 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-30-S47-UP-Z5-M6	04-1006-0204	762 mm	0 – 5 VDC	±.5 '% des Endwerts	.05 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-150-V62-UP-Z10-M6M	04-1006-0226	3810 mm	0 – 10 VDC	±.18 '% des Endwerts	.02 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-100-V62-DN-Z10-M6	04-1006-0236	2540 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-150-S47-UP-Z10-M6	04-1006-0247	3810 mm	0 – 10 VDC	±.18 '% des Endwerts	.02 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-25-S47-FR-10Z-C25	04-1006-0261	635 mm	10 – 0 VDC	±.5 '% des Endwerts	.05 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-30-V62-FR-10Z-M6	04-1006-0263	762 mm	10 – 0 VDC	±.5 '% des Endwerts	.05 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-150-S47-FR-Z10-M6M	04-1006-0281	3810 mm	0 – 10 VDC	±.18 '% des Endwerts	.02 '% des Endwerts	IP65	.047 Inch Dia Stainless Steel	-
PT5DC-60-S47-FR-Z10-M6M	04-1006-0282	1524 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP65	.047 Inch Dia Stainless Steel	-
PT5DC-40-V62-FR-10Z-M6	04-1006-0283	1016 mm	10 – 0 VDC	±.3 '% des Endwerts	.05 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-125-V62-FR-Z10-M6M	04-1006-0286	3175 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-50-V62-UP-Z10-C25	04-1006-0292	1270 mm	0 – 10 VDC	±.3 '% des Endwerts	.05 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-100-S47-FR-10Z-M6	04-1006-0294	2540 mm	10 – 0 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.047 Inch Dia Stainless Steel	-
PT5DC-125-V62-DN-10Z-M6	04-1006-0302	3175 mm	10 – 0 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-60-V62-DN-Z10-M6M	04-1006-0306	1524 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-
PT5DC-15-S47-DN-Z10-M6M	04-1006-0309	381 mm	0 – 10 VDC	±.6 '% des Endwerts	.1 '% des Endwerts	IP65	.047 Inch Dia Stainless Steel	-
PT5DC-80-V62-UP-10Z-C25	04-1006-0311	2032 mm	10 – 0 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP67	.062 Inch Dia Thermoplastic	-
PT5DC-60-V62-UP-Z10-M6M	04-1006-0312	1524 mm	0 – 10 VDC	±.25 '% des Endwerts	.02 '% des Endwerts	IP65	.062 Inch Dia Thermoplastic	-

Overview

The PT5DC series 0-5V / 0-10V industrial string pot installs in minutes and offers a unique V62 thermoplastic cable that has virtually an infinite fatigue life for measurements up to 250 inches.

The PT5DC series 0-5V / 0-10V industrial string pot is a cable-extension transducer that installs in minutes, functions properly without perfectly parallel alignment, and fits easily into small areas. The PT5DC offers additional installation flexibility since its cable exit can be rotated relative to the mounting surface, providing four different cable exit orientations.

Benefits

Absolute Linear Position to 250 inches (6350 mm)
Hard Anodized Aluminum Enclosure
High Cycle Applications
IP67
NEMA 6 Protection

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Position Sensor Product Type Industrial String Potentiometer

Body Features

Case Material Aluminum

Dimensions

Full Stroke Range (mm) 254 | 381 | 508 | 635 | 762 | 1016 | 1270 | 1524 | 2032 | 2540 | 3175 | 3810 | 5080 | 6350
Full Stroke Range (in) 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 125 | 150 | 200 | 250

Usage Conditions

Accuracy ('% des Endwerts) ±.18 | ±.25 | ±.3 | ±.5 | ±.6 | ±.75
Operating Temperature Range -40 – 90 °C [ -40 – 194 °F ]

Operation/Application

Output Signal Details ±10 VDC | ±5 VDC | 0 – 10 VDC | 0 – 5 VDC | 10 – 0 VDC | 5 – 0 VDC

Industry Standards

IP Rating IP65 | IP67

Other

Encoder Drive No
Repeatability ('% des Endwerts) .02 | .05 | .1
Measuring Cable .034 Inch Dia Nylon-Coated Stainless Steel | .047 Inch Dia Stainless Steel | .062 Inch Dia Thermoplastic
