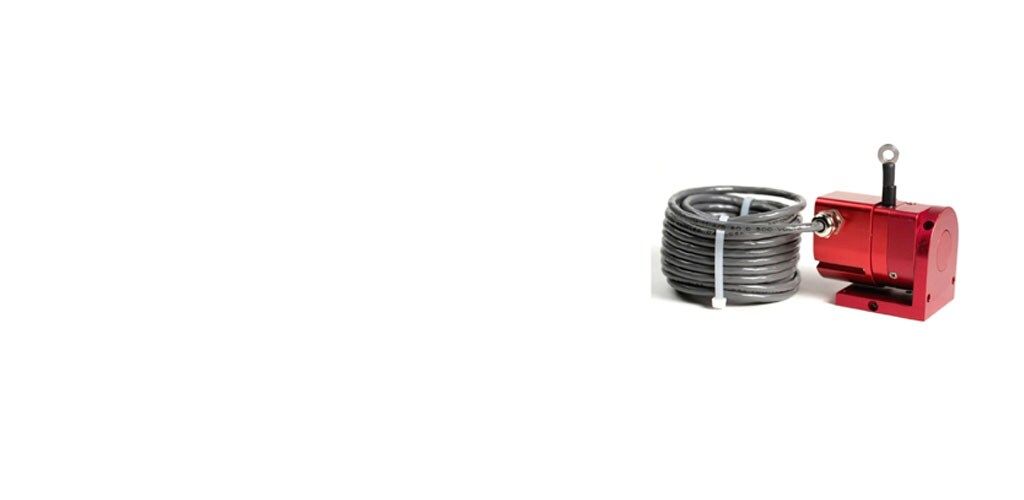

MT3A Mini IP67 String Potentiometer

MT3A Mini IP67 String Potentiometer-CAT-CAPS0006
  • MEAS
|
  • MEAS MT Mini-Test
The MT3A Mini IP-67 Series String Potentiometer is the solution for high-acceleration test applications in potentially wet environments.
More Less
Connect with Us

Product Features

  • Position Sensor Product Type : Miniature String Potentiometer

  • Full Stroke Range (mm): 76.2 | 228.6 | 381 | 762 | 1270

  • Full Stroke Range (in): 3 | 9 | 15 | 30 | 50

  • Output Signal Type : Voltage Divider (Potentiometric)

  • Accuracy (% of FS): ±.15 | ±.2 | ±.25 | ±1.1

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview
The MT3A Mini IP-67 Series String Potentiometer is the solution for high-acceleration test applications in potentially wet environments.

Just like the MT2A, the MT3A string pot comes in 5 different full-stroke ranges, has a high-tension heavy-duty measuring cable designed for the demands of flight and automotive crash tests and comes with an easy to use 2-axis 360° rotation mounting bracket for installation in hard to fit areas For extreme high impact applications, the MT3A string pot is now available with a rugged all aluminum sensor cover.

Benefits

  • Compact String Pot
  • Flight/Crash Test Applications
  • Dual Axis 360° Mounting Bracket
  • 3, 9, 15, 30 and 50-inch Stroke Range Options
  • Wet Environments
  • Aluminum Enclosure
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  Miniature String Potentiometer

Body Features

  • Case Material  Aluminum

Dimensions

  • Full Stroke Range (mm) 76.2 | 228.6 | 381 | 762 | 1270

  • Full Stroke Range (in) 3 | 9 | 15 | 30 | 50

Usage Conditions

  • Accuracy (% of FS) ±.15 | ±.2 | ±.25 | ±1.1

  • Operating Temperature Range  -40 – 120 °C [ -40 – 248 °F ]

Operation/Application

  • Output Signal Type  Voltage Divider (Potentiometric)

Industry Standards

  • IP Rating  IP67

Other

  • Encoder Drive  No

  • Repeatability (% of FS) .02

  • Measuring Cable  .019 Inch Dia Nylon-Coated Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0006
