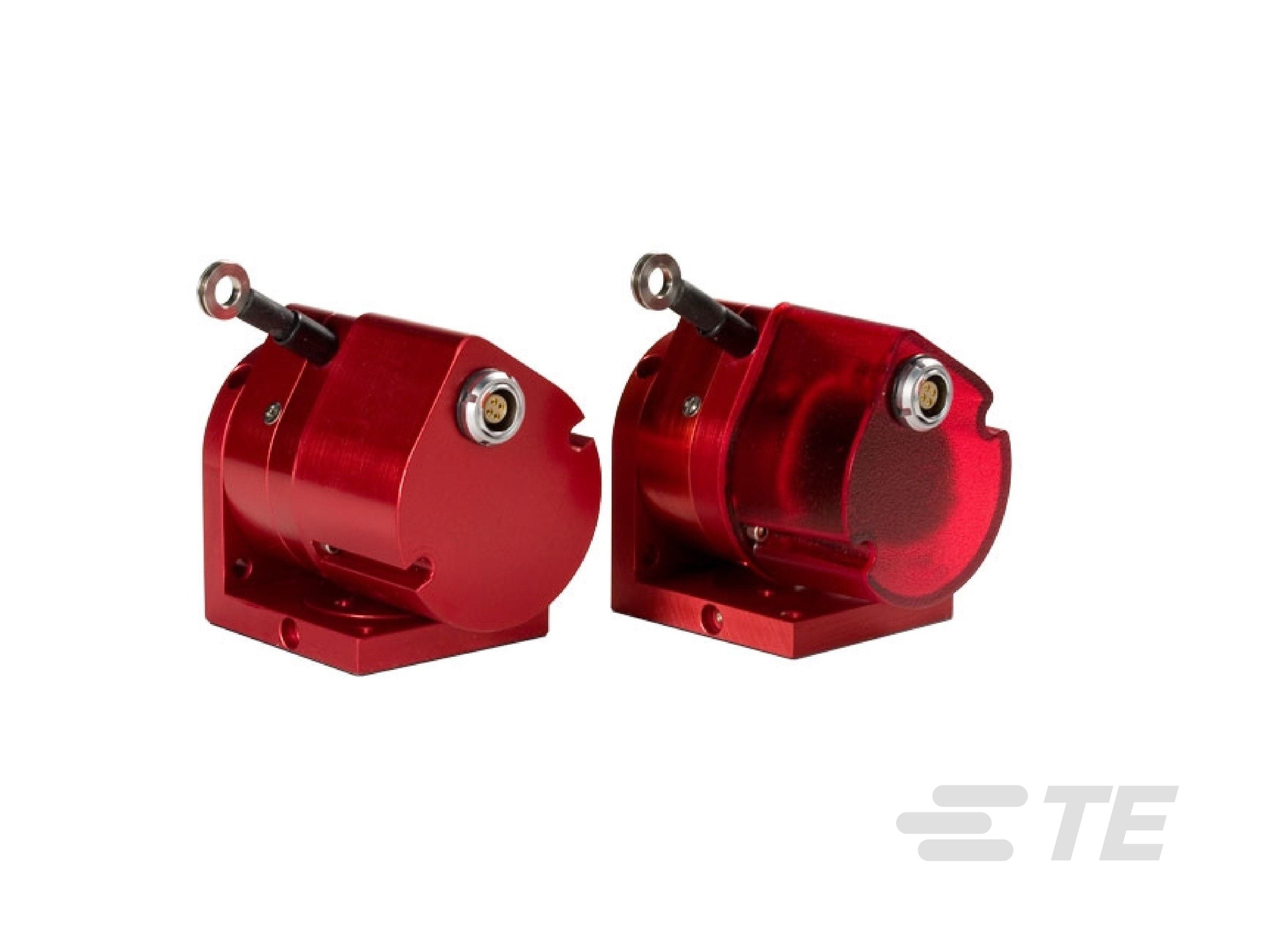

MINI INCREMENTAL ENCODER STRING POT

MINI INCREMENTAL ENCODER STRING POT-CAT-CAPS0005
  • MEAS
|
  • MEAS MT Mini-Test
The MT2E1 series mini incremental encoder string pot is a member of our family of rugged, accurate miniature cable-actuated position transducers and features 0-30 & 0-50 inch stroke range options.
More Less
Connect with Us

Product Features

  • Position Sensor Product Type : Miniature String Potentiometer

  • Full Stroke Range (mm): 762 | 1270

  • Full Stroke Range (in): 30 | 50

  • Output Signal Type : Incremental Encoder

  • Accuracy (% of FS): ±.04

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview
The MT2E1 mini incremental encoder string pot features 0-30 & 0-50 inch stroke range options, heavy-duty measuring cable, and a 2-axis 360° rotation in its mounting bracket for optimal position measurement.

The MT2E1 series mini incremental encoder string pot features a highly-tensioned heavy-duty measuring cable that was designed for the high acceleration demands encountered in drop testing and automotive crash tests. The MT2E1 string pot was designed with 2-axis 360° rotation in its mounting bracket which allows for fast and simple installation in any direction.

Benefits

  • Encoder Compact String Pot
  • 0-30 & 0-50 inch Stroke Range Options
  • Dual Axis 360° Mounting Bracket
  • Drop and Crash Test Applications
  • Aluminum & Polycarbonate Enclosure
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  Miniature String Potentiometer

Body Features

  • Case Material  Aluminum

Dimensions

  • Full Stroke Range (mm) 762 | 1270

  • Full Stroke Range (in) 30 | 50

Usage Conditions

  • Accuracy (% of FS) ±.04

  • Operating Temperature Range  0 – 70 °C [ 32 – 158 °F ]

Operation/Application

  • Resolution (ppmm) 4775 | 8026

  • Output Signal Type  Incremental Encoder

Industry Standards

  • IP Rating  IP50

Other

  • Encoder Drive  No

  • Repeatability (% of FS) .02

  • Measuring Cable  .019 Inch Dia Nylon-Coated Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0005
