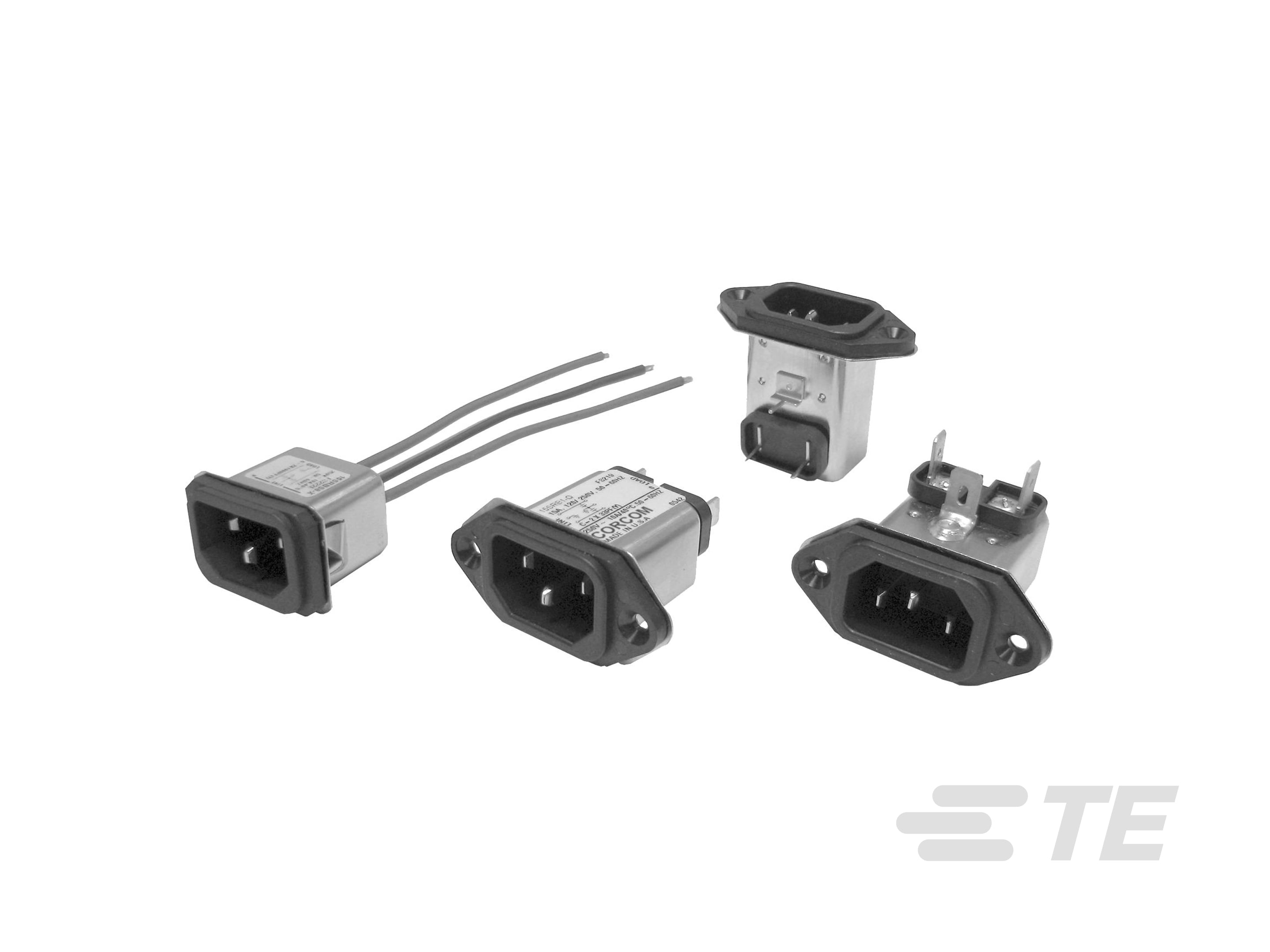

IEC Filtered Inlets, Corcom SRB Series

IEC Filtered Inlets, Corcom SRB Series-CAT-C8114-SR15
  • Corcom
|
  • Corcom SRB
Minimum depth, cost-effective shielded power Inlet filter. Smallest depth Corcom RFI filter available.
More Less
Connect with Us

Product Features

  • Filter Type : Power Line

  • Product Orientation : Vertical | Right Angle

  • Leakage Current (Max) (120VAC, 60Hz) (µA): 2 | 2.1 | 9.6 | 19.2 | 24 | 40 | 70 | 160 | 240

  • Leakage Current (Max) (250VAC, 50Hz) (µA): 3.65 | 5 | 16.6 | 33.2 | 41.5 | 70 | 130 | 280 | 420

  • Current Rating (A): 15 | 20

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Ground Choke Option  No

  • Filter Type  Power Line

  • Output Termination Type  .250" FASTON | PCB Pins | Wire Lead

  • Filtering Requirements  Filtered | Unfiltered

  • Filter Connector Type  IEC 320/C-14 | IEC 60320-1 C-14 | IEC 60320-1 C-20

Electrical Characteristics

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 2 | 2.1 | 9.6 | 19.2 | 24 | 40 | 70 | 160 | 240

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 3.65 | 5 | 16.6 | 33.2 | 41.5 | 70 | 130 | 280 | 420

  • Current Rating (A) 15 | 20

  • Operating Voltage (VAC) 250

Body Features

  • Product Orientation  Vertical | Right Angle

Mechanical Attachment

  • Panel Mount Feature Type  Flange | Slide-In (Long Edge Retention) | Slide-In (Short Edge Retention) | Snap-In

Dimensions

  • Panel Thickness (Recommended) (mm) .13 – 1 | .78 – 1.19

  • Panel Thickness (Recommended) (in) .005 – .039 | .031 – .047

Usage Conditions

  • Operating Temperature Range  -10 – 40 °C [ 14 – 104 °F ]

Reference Number

  • TE Internal Number CAT-C8114-SR15
