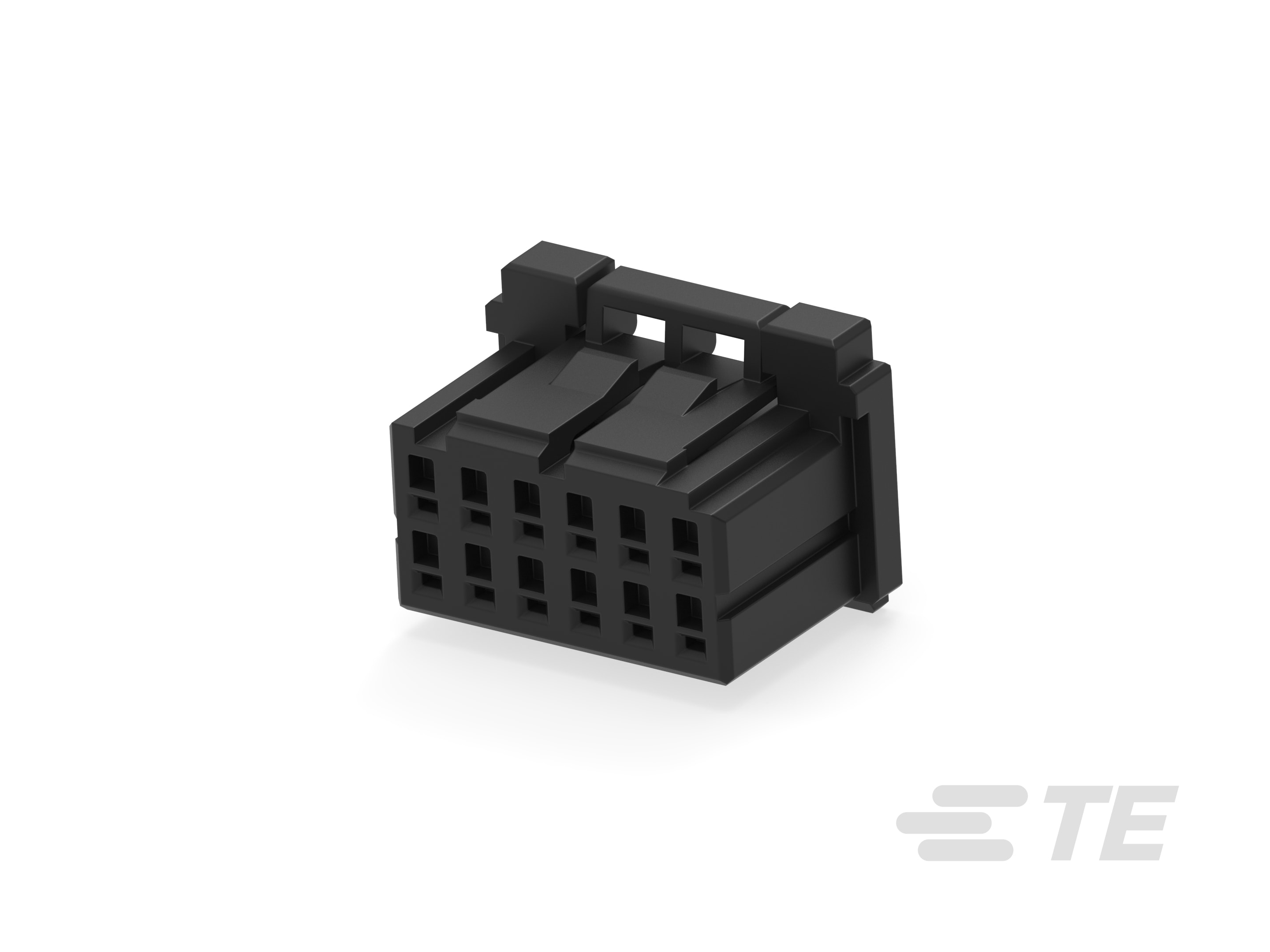

Housing, Receptacle, Crimp, Wire-to-Board, UL 94V-0, 12 Position, 2.5 mm [.098 in] Centerline, 2 Row, Rectangular Wire & Cable Connectors & Housings
9-1827864-6
Housing, Receptacle, Crimp, Wire-to-Board, UL 94V-0, 12 Position, 2.5 mm [.098 in] Centerline, 2 Row, Rectangular Wire & Cable Connectors & Housings
-
- Dynamic Series
- TE Internal #: 9-1827864-6
- TE Internal Description: DYNAMIC 1200D REC HSG 12P X BLACK
- All Receptacle and Tab Housing: 2.5 mm Pitch, 250V (59)
-
Connector Product Type : Housing
-
Connector & Housing Type : Receptacle
-
Mating Retention : With
-
Mating Retention Type : Latch
-
Termination Method to Wire & Cable : Crimp
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_9-1827864-6_P.pdf 3D
- Customer View Model ENG_CVM_CVM_9-1827864-6_P.2d_dxf.zip English
- ENG_CVM_CVM_9-1827864-6_P.3d_igs.zip English
- ENG_CVM_CVM_9-1827864-6_P.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-5377_L.pdf English
- Product Specification ENG_SS_108-78268_L.pdf English
- ENG_SS_108-78298_F.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E28476_19930105_C1_3.pdf English
