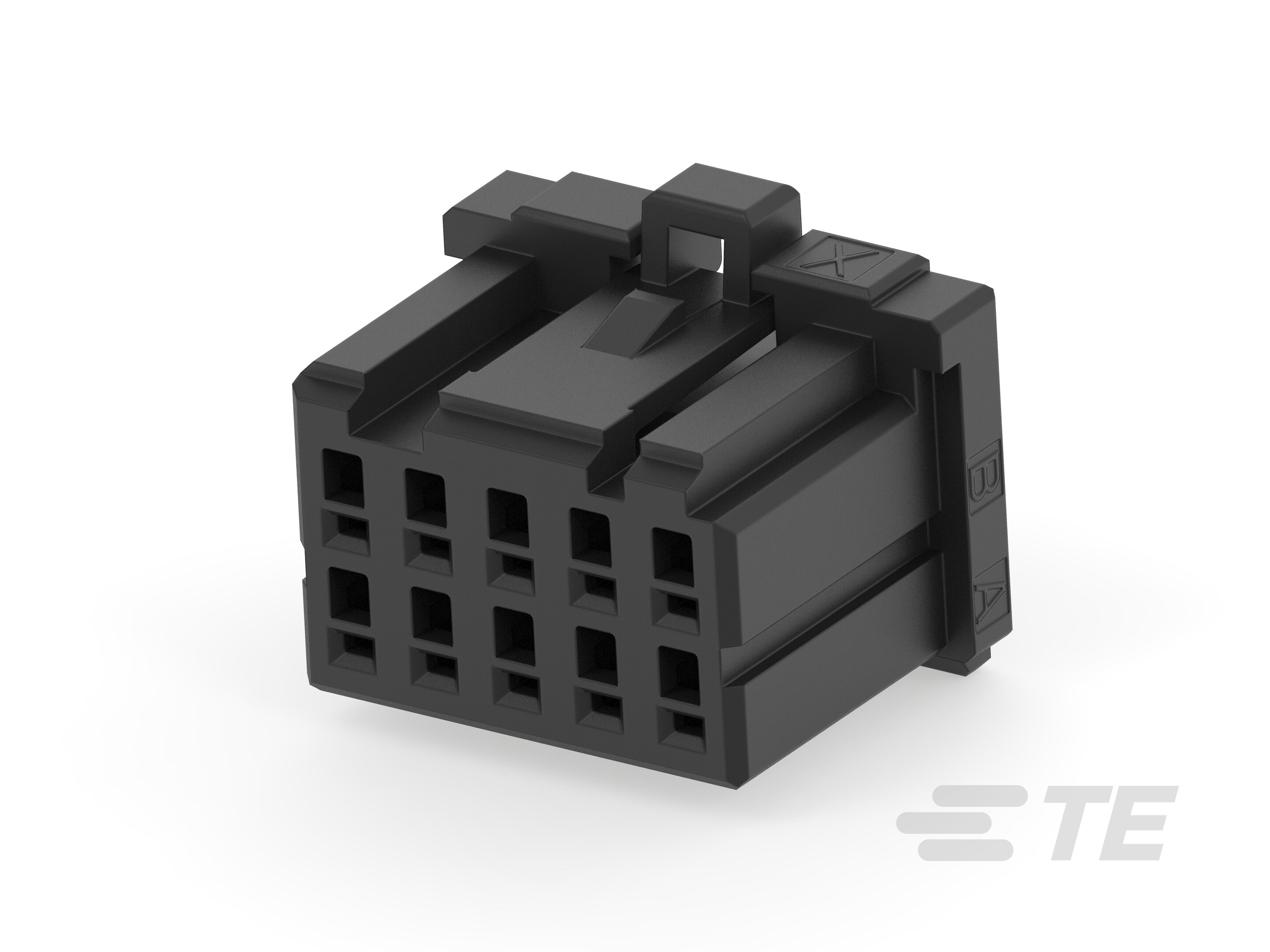

Receptacle and Tab Housing: 2.5 mm Pitch, 250V

The Dynamic 1200 receptacle and tab housing is designed with a 2.5 mm pitch with multiple positions. UL 94 V-0 Flammability Rating.

More Less

Product Features

Number of Positions : 2, 4, 6, 8, 10, 12, 16, 20
Connector Product Type : Housing
Connector & Housing Type : Housing for Male Terminals, Receptacle
Mating Retention Type : Latch
Connector & Housing Type : Housing for Male Terminals, Receptacle

Available from

Product	TE Part #	Documents	Connector & Housing Type	Mating Retention	Mating Retention Type	Termination Method to Wire & Cable	Connector System	UL Flammability Rating	Number of Positions	Centerline (Pitch)	Number of Rows	Operating Voltage	Contact Current Rating (Max)	Circuit Application	Connector Mounting Type
DYNAMIC 1200D REC HSG 20P X BLACK Buy on te.com	1-1827864-0	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	20	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 4P X BLACK	1-1827864-2	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	4	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 6P X BLACK	1-1827864-3	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 8P X BLACK	1-1827864-4	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	8	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 10P X BLACK Buy on te.com	1-1827864-5	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	10	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 12P X BLACK	1-1827864-6	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	12	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 16PX BLACK Buy on te.com	1-1827864-8	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	16	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 20P Y BLACK Buy on te.com	2-1827864-0	3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	20	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 4P Y BLACK Buy on te.com	2-1827864-2	3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	4	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 6P Y BLACK Buy on te.com	2-1827864-3	3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 8P Y BLACK Buy on te.com	2-1827864-4	3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	8	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 10P Y BLACK	2-1827864-5	3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	10	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 12P Y BLACK	2-1827864-6	3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	12	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 16PY BLACK	2-1827864-8	3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	16	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 6P X BLACK Buy on te.com	9-1827864-3	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	6	10.16 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 12P X BLACK	9-1827864-6	3D PDF	Receptacle	With	Latch	Crimp	Wire-to-Board	UL 94V-0	12	2.5 mm	2	250 VAC	5 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200S REC HSG 2P X BLA Buy on te.com	1-1871465-2	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	2	2.5 mm	1	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200S REC HSG 2P X NAT Buy on te.com	8-1871465-2	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	2	2.5 mm	1	-	1 A	Power & Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200S TAB HSG 2P F/H	1-1903129-2	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	2	2.5 mm	1	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200S TAB HSG 2P F/H	8-1903129-2	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Wire	UL 94V-0	2	2.5 mm	1	-	1 A	Power & Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 20P F/H	1-1903130-0	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	20	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 4P F/H	1-1903130-2	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	4	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 6P F/H	1-1903130-3	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 8P F/H	1-1903130-4	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	8	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 12P F/H Buy on te.com	1-1903130-6	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	12	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 20P F/H BLACK Y	2-1903130-0	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	20	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 6P F/H BLACK Y	2-1903130-3	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 8P F/H BLACK Y	2-1903130-4	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	8	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 12P F/H BLACK Y	2-1903130-6	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	12	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 20P P/M Buy on te.com	1-1903131-0	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	20	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 4P P/M	1-1903131-2	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	4	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 6P P/M Buy on te.com	1-1903131-3	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 8P P/M	1-1903131-4	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	8	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 12P P/M	1-1903131-6	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	12	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 20P P/M BLACK Y	2-1903131-0	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	20	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 6P P/M BLACK Y	2-1903131-3	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 8P P/M BLACK Y	2-1903131-4	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	8	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 12P P/M BLACK Y	2-1903131-6	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	12	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D REC HSG 4P X NATURAL	1-1939028-2	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	4	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 6P X NATURAL	1-1939028-3	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 10P X NATURAL	1-1939028-5	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	10	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 4P Y NATURAL	2-1939028-2	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	4	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 6P Y NATURAL	2-1939028-3	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 4P Y YELLOW	4-1939028-2	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	4	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D REC HSG 6P Y YELLOW	4-1939028-3	Product Drawing 3D PDF	Receptacle	With	-	Crimp	Wire-to-Board	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 6P F/H NATURAL	1-1939796-3	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 6P F/H NATURAL Y	2-1939796-3	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Cable Mount (Free-Hanging)
DYNAMIC 1200D TAB HSG 6P P/M NATURAL X	1-2069829-3	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 8P P/M NATURAL X	1-2069829-4	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	8	2.5 mm	2	-	1 A	Signal	Panel Mount
DYNAMIC 1200D TAB HSG 6P P/M NATURAL Y	2-2069829-3	Product Drawing 3D PDF	Housing for Male Terminals	With	-	Crimp	Wire-to-Wire	UL 94V-0	6	2.5 mm	2	-	1 A	Signal	Panel Mount

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector Product Type Housing
Connector & Housing Type Housing for Male Terminals, Receptacle
Connector & Housing Type Housing for Male Terminals, Receptacle
Connector System Wire-to-Board, Wire-to-Wire
Sealable No
Connector & Contact Terminates To Wire & Cable

Configuration Features

Number of Positions 2, 4, 6, 8, 10, 12, 16, 20
Number of Rows 1, 2

Electrical Characteristics

Operating Voltage (VDC) 250
Operating Voltage (VAC) 250

Body Features

Primary Product Color Black, Natural, Yellow
Primary Product Color Black, Natural, Yellow

Contact Features

Contact Type Receptacle, Socket, Tab
Contact Base Material Copper Alloy
Contact Current Rating (Max) (A) 1, 5

Termination Features

Termination Method to Wire & Cable Crimp
Termination Method to Wire & Cable Crimp

Mechanical Attachment

Panel Mount Feature Without
Strain Relief Without
Mating Retention Type Latch
Mating Retention With
Mating Retention With
Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount

Housing Features

Housing Material Polyester GF
Centerline (Pitch) (mm) 2.5, 10.16
Centerline (Pitch) (in) .098, .399

Dimensions

Connector Length (mm) 7.6, 10.1, 12.6, 15.1, 17.1, 17.6, 19.6, 27.6, 37.1
Connector Length (in) .29, .39, .49, .59, .67, .69, .692, .77, 1.08, 1.46
Connector Width (mm) 11.3, 21
Connector Width (in) .44, .82
Connector Height (mm) 8, 9.15, 11.3, 12.45, 13.9
Connector Height (in) .31, .36, .444, .49, .54, 44
Row-to-Row Spacing 3.3 mm [ .129 in ]
Row-to-Row Spacing 3.3 mm [ .129 in ]

Usage Conditions

Operating Temperature Range -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

Circuit Application Power & Signal, Signal

Industry Standards

Glow Wire Rating Standard Part - Not Glow Wire
Compatible With Approved Standards Products CSA LR7189, UL E28476
UL Flammability Rating UL 94V-0

Packaging Features

Packaging Method Bag
Packaging Quantity 100, 200, 300, 400, 450, 500, 600, 800, 900, 1000, 1600

Reference Number

TE Internal Number CAT-D9934-A15B

Related Materials

No documentation available.
