Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Installation Technology : Compression

• Stud Size : M16

• Number of Holes : 1

• Voltage Class (kV): ≤ 36

• Compression Barrel Type : Standard

• Conductor Type : Stranded

• Compatible Conductor Material : Copper

• Primary Product Material : Copper

• Palm Terminal Material : Copper

• Crimp Type : Hexagonal Crimping

• Barrel Inside Diameter : 13.5 mm [ .531 in ]

• Lug Width : 35 mm [ 1.377 in ]

• Barrel Length : 33 mm [ 1.299 in ]

• Barrel Outside Diameter : 21 mm [ .826 in ]

• Lug Length : 83 mm [ 3.267 in ]

• Palm Hole Diameter : 16.5

• Compatible Conductor Range (AWG/kcmil): 2 – 2

• Compatible Conductor Cross-Section Range (mm²): 35

• Power Component Application Type : Indoor, Outdoor

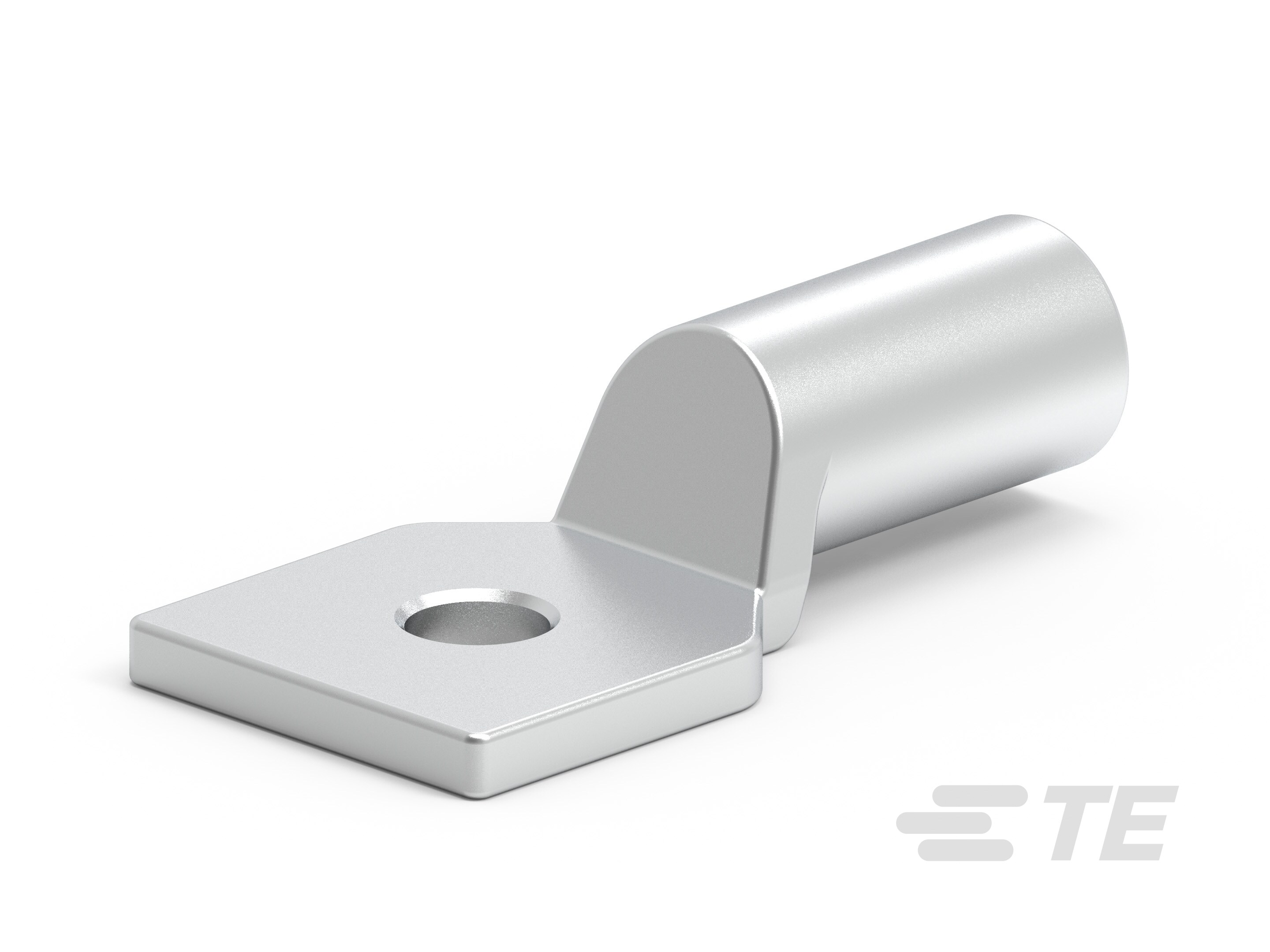

• Compression Connector Product Type : Terminal Lug
