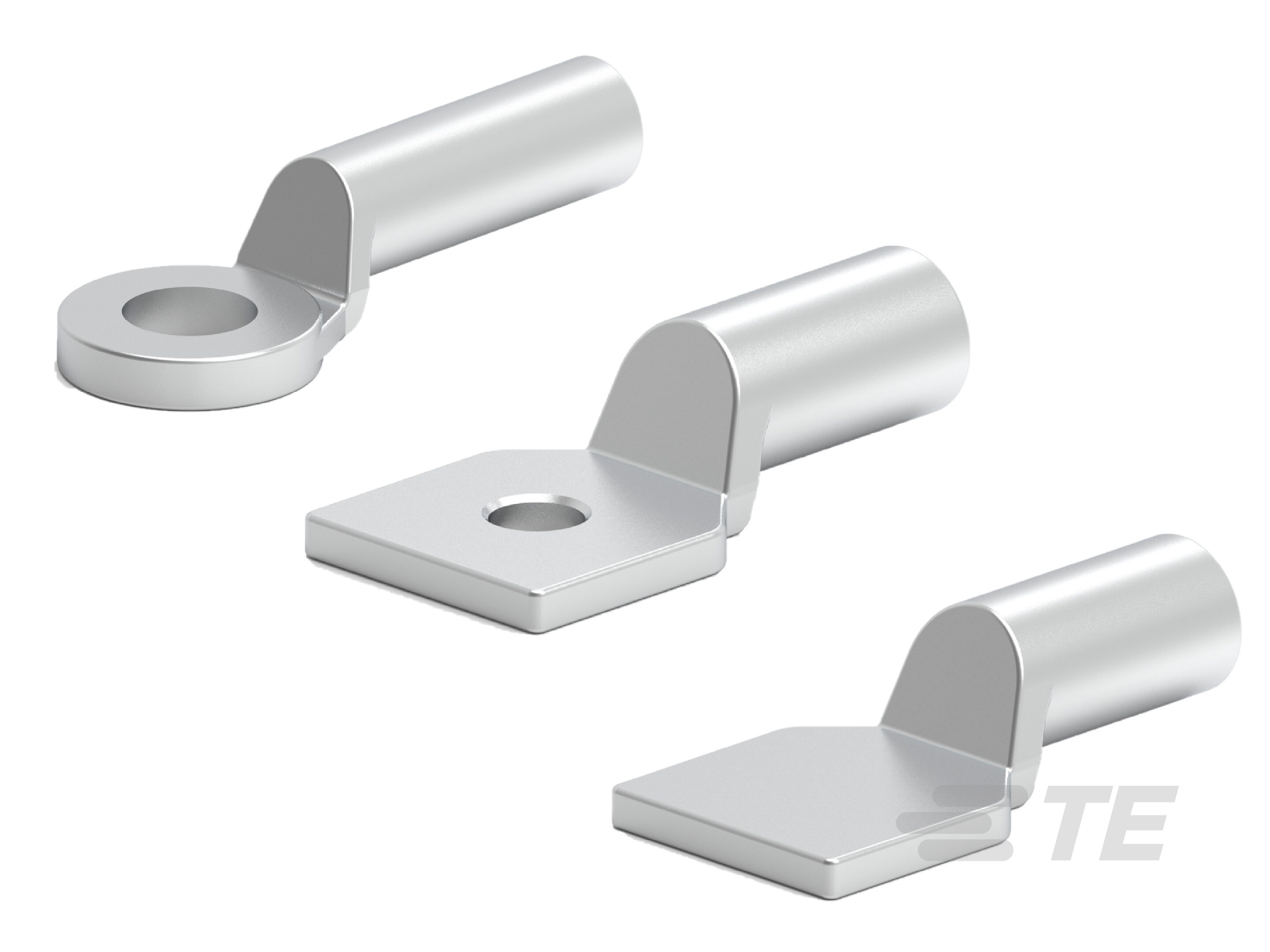

DPD7

Please review product documents or contact us for the latest agency approval information.

• Installation Technology  Compression

• Stud Size  M10 | M12 | M14 | M16 | M20

• Number of Holes  1

• Voltage Class (kV) ≤ 36

• Compression Barrel Type  Standard

• Conductor Type  Stranded

• Compatible Conductor Material  Copper

• Primary Product Material  Copper

• Palm Terminal Material  Copper

• Crimp Type  Hexagonal Crimping

• Barrel Length (mm) 29 | 33 | 35 | 45

• Barrel Length (in) 1.141 | 1.299 | 1.377 | 1.771

• Lug Length (mm) 67 | 79 | 83 | 104 | 127

• Lug Length (in) 2.637 | 3.11 | 3.267 | 4.094 | 5

• Lug Width (mm) 25 | 30 | 35 | 50 | 60

• Lug Width (in) .984 | 1.181 | 1.377 | 1.968 | 2.362

• Barrel Inside Diameter (mm) 5.5 | 7 | 7.8 | 8.5 | 9.5 | 12.5 | 13.5 | 15 | 19 | 21 | 23 | 26

• Barrel Inside Diameter (in) .216 | .275 | .307 | .334 | .374 | .492 | .531 | .59 | .748 | .826 | .905 | 1.02

• Barrel Outside Diameter (mm) 12.2 | 21 | 26 | 32

• Barrel Outside Diameter (in) .48 | .826 | 1.02 | 1.25

• Palm Hole Diameter  10.5 | 12.8 | 14 | 14.5 | 16 | 16.5

• Compatible Conductor Range (AWG/kcmil) 1/0 – 1/0 | 2/0 – 2/0 | 2 – 2 | 250 – 250 | 3/0 – 3/0 | 350 – 350 | 4 – 4 | 500 – 500 | 600 – 600 | 6 – 6 | 800 – 800

• Compatible Conductor Cross-Section Range (mm²) 16 | 25 | 29 | 35 | 50 | 70 | 95 | 120 | 185 | 240 | 300 | 400

• Power Component Application Type  Indoor | Outdoor

• Compression Connector Product Type  Terminal Lug
