Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Installation Technology : Compression

• Stud Size : M12

• Number of Holes : 1

• Voltage Class (kV): ≤ 1

• Compression Barrel Type : Standard

• Conductor Type : Stranded

• Compatible Conductor Material : Aluminum

• Primary Product Material : Aluminum

• Palm Terminal Material : Aluminium

• Crimp Type : Hexagonal or Indent Crimping

• Lug Width : 33 mm [ 1.299 in ]

• Barrel Length : 52 mm [ 2.047 in ]

• Barrel Outside Diameter : 24.6 mm [ .968 in ]

• Lug Length : 101.6 mm [ 4 in ]

• Palm Hole Diameter : 13

• Compatible Conductor Range (AWG/kcmil): 250 – 250

• Compatible Conductor Cross-Section Range (mm²): 120

• Power Component Application Type : Indoor, Outdoor

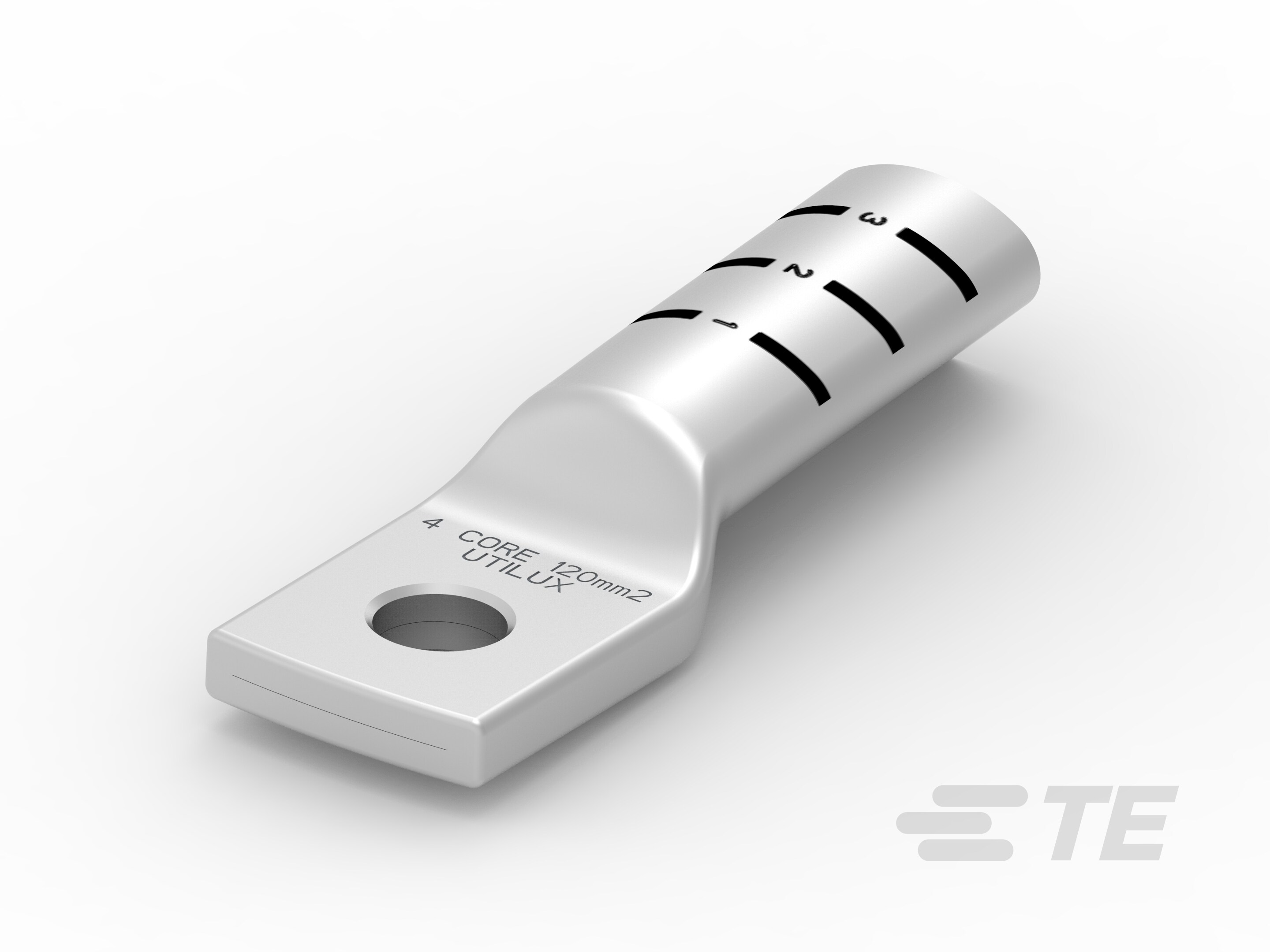

• Compression Connector Product Type : Terminal Lug
