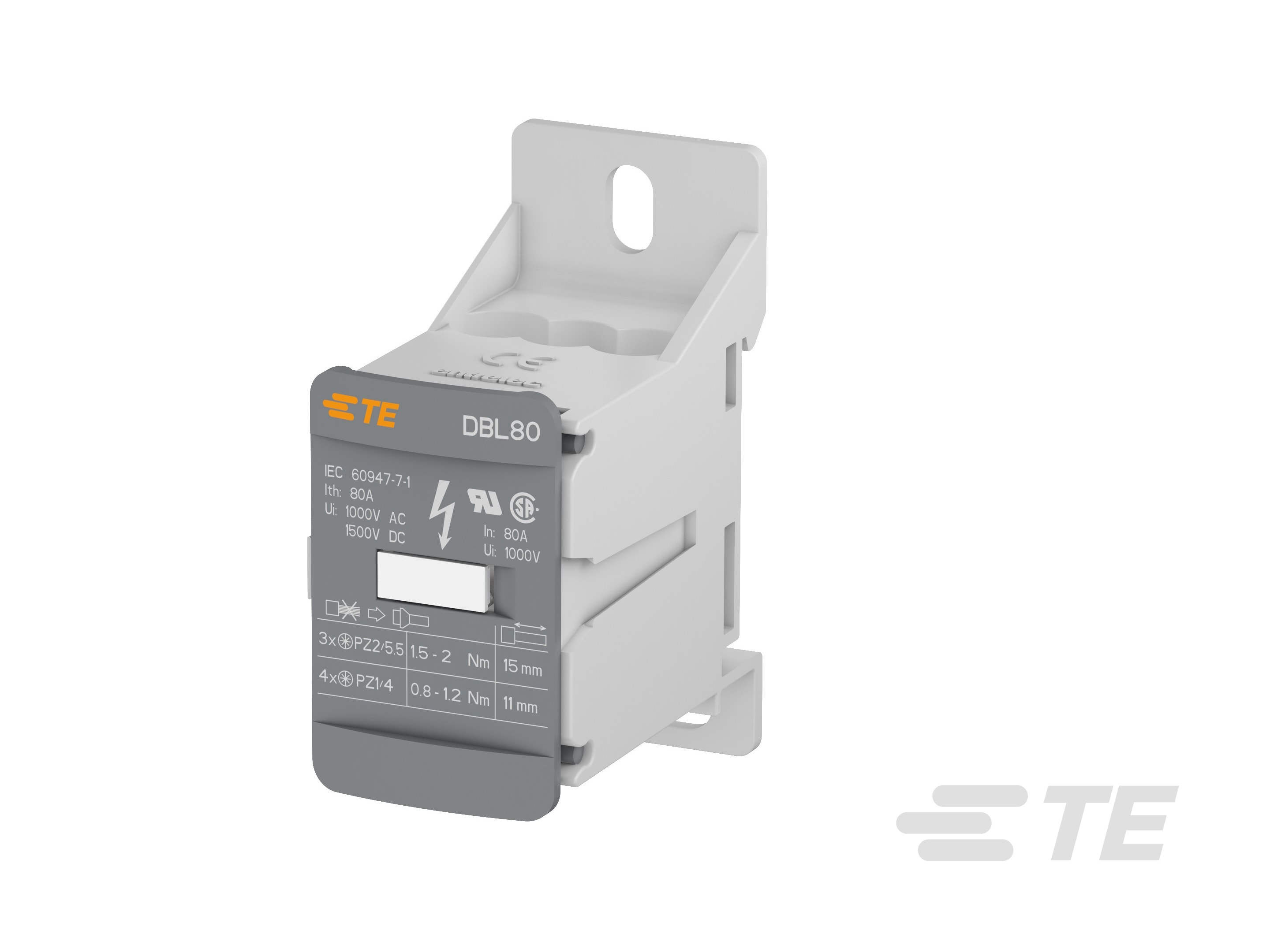

1SNL308010R0000

1 Pole, 80 A Current Rating (UL), 7 Position, DIN Rail, -55 – 110 °C [-67 – 230 °F], Power Distribution Blocks

1SNL308010R0000

1 Pole, 80 A Current Rating (UL), 7 Position, DIN Rail, -55 – 110 °C [-67 – 230 °F], Power Distribution Blocks

Number of Poles : 1

Current Rating (IEC) (A): 80

Current Rating (UL) (A): 80

Number of Positions : 7

Contact Current Rating (Max) (A): 80

Documents

CAD Files

Datasheets & Catalog Pages

Agency Approvals

Product Change Notification

Features

Configuration Features

Block Function : Feed-Through

Number of Circuits : 1

Number of Poles - Main Circuit : 3

Number of Poles - Output 1 : 4

Number of Levels : 1

Number of Poles : 1

Number of Positions : 7

Electrical Characteristics

Short Circuit Current Rating (kA): 100

Short-Time Withstanding Current Rating @ 1s (A): 1920

Voltage Rating (IEC) (VAC): 1000

Voltage Rating (IEC) (VDC): 1500

Voltage Rating (CSA) (V): 1000

Dielectric Withstanding Voltage (Max) (V): 2200

Input Current (Max) (A): 80

Impulse Withstanding Voltage Rating (IEC) (V): 8000

Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 1000

Peak Withstanding Current Rating (kA): 27

Power Loss (W): 2.56

Current Rating (IEC) (A): 80

Current Rating (UL) (A): 80

Body Features

Primary Product Color : Gray

Product Weight : 70 g [ 2.469 oz ]

Contact Features

Contact Current Rating (Max) (A): 80

Termination Features

Termination Method to Wire & Cable : Screw

Mechanical Attachment

Tightening Torque - Output 1 (in-lbs): 7.2 – 10.8

Tightening Torque - Output 1 (Nm): .8 – 1.2

Tightening Torque - Main Circuit (in-lbs): 13.5 – 18

Tightening Torque - Main Circuit (Nm): 1.5 – 2

DIN Rail Mounting Type : TH35-15, TH35-7.5

Connector Mounting Type : DIN Rail

Housing Features

Housing Material : Polyamide

Dimensions

Wire Size (AWG): 4

Wire Size (mm²): 16

Tool Size - Main Circuit : 5.5 mm [ .216 in ]

Product Height : 66 mm [ 2.328 in ]

Product Width : 28.4 mm [ 1.002 in ]

Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²): 2.5 – 16

Wire Stripping Length - Output 1 : 11 mm [ .43 in ]

Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG): 14 – 6

Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG): 14 – 4

Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): 2.5 – 16

Hole Diameter - Main Circuit : 6.6 mm [ .256 in ]

Hole Diameter - Output 1 : 4.5 mm [ .177 in ]

Product Spacing : 28.4 mm [ 1.11 in ]

Product Depth : 50.2 mm [ 1.771 in ]

Output 1 Capacity - 1 Insulated Ferrule (AWG): 14 – 10

Output 1 Capacity - 1 Insulated Ferrule (mm²): 2.5 – 6

Wire Stripping Length - Main Circuit : 15 mm [ .591 in ]

Tool Size - Output 1 : 4 mm [ .157 in ]

Output 1 Capacity - 1 Rigid Stranded Conductor (AWG): 14 – 10

Output 1 Capacity - 1 Rigid Stranded Conductor (mm²): 2.5 – 6

Usage Conditions

Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]

Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

Industry Standards

UL Flammability Rating : UL 94V-0

Tool - Output 1 : Flat Screwdriver
