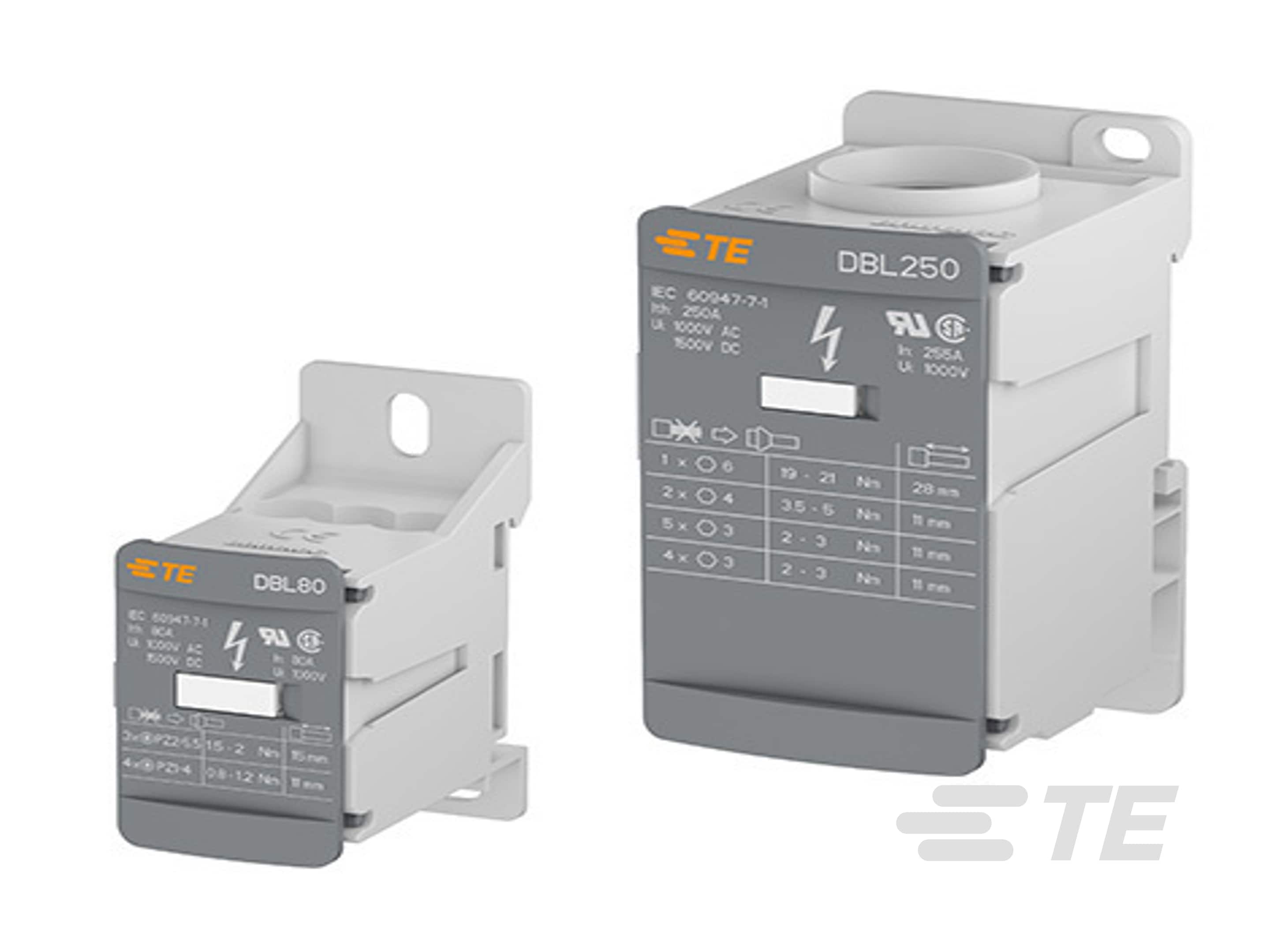

DBL Power Distribution Block: Screw clamp technology, 1 to 3 poles

Please review product documents or contact us for the latest agency approval information.

• Block Function  Feed-Through

• Number of Poles - Output 2  5 | 6

• Number of Poles - Output 1  1 | 2 | 4 | 6 | 10 | 12

• Number of Circuits  1

• Number of Poles - Output 3  4

• Number of Poles - Main Circuit  1 | 2 | 3

• Number of Levels  1

• Number of Poles  1 | 3

• Number of Positions  4 | 7 | 8 | 12 | 14

• Short-Time Withstanding Current Rating @ 1s (A) 1920 | 4200 | 6000 | 11400 | 18000 | 22800 | 28800

• Voltage Rating (IEC) (VAC) 1000

• Impulse Withstanding Voltage Rating (IEC) (V) 8000

• Dielectric Withstanding Voltage (Max) (V) 2200

• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V) 1000

• Voltage Rating (CSA) (V) 1000

• Short Circuit Current Rating (kA) 100

• Peak Withstanding Current Rating (kA) 23 | 27 | 30 | 44 | 48 | 51

• Voltage Rating (IEC) (VDC) 1500

• Power Loss (W) 2.56 | 4 | 5.12 | 5.6 | 8 | 12 | 12.8 | 16 | 16.8 | 17.6

• Input Current (Max) (A) 80 | 125 | 160 | 175 | 250 | 400 | 500 | 550

• Current Rating (IEC) (A) 80 | 125 | 160 | 175 | 250 | 400 | 500 | 550

• Current Rating (UL) (A) 80 | 115 | 160 | 175 | 250 | 255 | 335 | 400 | 420 | 510

• Primary Product Color  Gray

• Product Weight (g) 70 | 120 | 122 | 200 | 360 | 367 | 410 | 425 | 514.2

• Product Weight (oz) 2.469 | 4.233 | 4.304 | 7.055 | 12.698 | 12.945 | 14.462 | 14.991 | 18.138

• Product Weight (g) 70 | 120 | 122 | 200 | 360 | 367 | 410 | 425 | 514.2

• Contact Current Rating (Max) (A) 80 | 125 | 160 | 175 | 250 | 400 | 500 | 550

• Termination Method to Wire & Cable  Screw

• Tightening Torque - Output 3 (in-lbs) 18 – 26.5

• Tightening Torque - Output 2 (Nm) 2 – 3

• Tightening Torque - Output 2 (in-lbs) 18 – 26.5

• Tightening Torque - Main Circuit (in-lbs) 13.5 – 18 | 31 – 44 | 53 – 88 | 119.5 | 120 | 168 – 185 | 221

• Tightening Torque - Main Circuit (Nm) 1.5 – 2 | 3.5 – 5 | 6 – 10 | 13.5 | 19 – 21 | 25

• Tightening Torque - Output 1 (in-lbs) 7.2 – 10.8 | 18 – 26.5 | 31 – 44 | 168 – 185

• Tightening Torque - Output 3 (Nm) 2 – 3

• Tightening Torque - Output 1 (Nm) .8 – 1.2 | 2 – 3 | 3.5 – 5 | 19 – 21

• DIN Rail Mounting Type  TH35-15 | TH35-7.5

• Connector Mounting Type  DIN Rail | Panel Mount

• Housing Material  Polyamide

• Tool Size - Output 3 (mm) 3 | 4

• Tool Size - Output 3 (in) .157 | .19

• Hole Diameter - Output 2 (mm) 6.5 | 6.59

• Hole Diameter - Output 2 (in) .256 | .26

• Output 1 Capacity - 1 Insulated Ferrule (mm²) 2.5 – 25 | 2.5 – 6 | 2.5 – 16 | 25 – 95

• Output 3 Capacity - 1 Insulated Ferrule (AWG) 14 – 8

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG) 6 – 00 | 8 – 2 | 14 – 4

• Hole Diameter - Output 1 (mm) 4.5 | 6.4 | 6.7 | 6.8 | 8.69 | 8.7 | 15.5

• Hole Diameter - Output 1 (in) .177 | .252 | .26 | .267 | .34 | .342 | .59

• Hole Diameter - Main Circuit (mm) 6.6 | 9.8 | 11.8 | 15.3 | 15.5 | 19.8

• Hole Diameter - Main Circuit (in) .256 | .386 | .465 | .59 | .602 | .78

• Product Height (mm) 46 | 66 | 72.5 | 75 | 96 | 103

• Product Height (in) 1.81 | 2.328 | 2.557 | 2.645 | 2.95 | 3.386 | 4.06

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (kcmil) 4 – 0 | 14 – 6 | 66 – 250 | 168 – 400

• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG) 2 – 000 | 6 – 0 | 8 – 0 | 8 – 2 | 14 – 6 | 25 – 95

• Wire Size (AWG) 1/0 | 2 | 3 | 3/0 | 4 | 6

• Output 3 Capacity - 1 Rigid Stranded Conductor (AWG) 14 – 8

• Wire Size (mm²) 6 | 16 | 35 | 50 | 95 | 150

• Product Length (mm) 250

• Tool Size - Main Circuit (mm) 4 | 5 | 5.5 | 6 | 8

• Tool Size - Main Circuit (in) .157 | .197 | .2 | .216 | .236 | .24 | .315

• Tool Size - Output 1 (mm) 3 | 4 | 5.5 | 28

• Tool Size - Output 1 (in) .118 | .157 | .16 | .217 | .22 | 1.1

• Input Dimensions - Main Circuit (mm) 15.5 x 7.2 | 26 x 10.8

• Input Dimensions - Main Circuit (in) 0.59 x 0.28 | 1.02 x 0.43 | 4 – 000

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²) 2.5 – 16 | 10 – 35 | 10 – 70 | 16 – 70 | 25 – 95 | 35 – 120 | 95 – 185

• Product Spacing (mm) .24 | 28.2 | 28.4 | 29 | 46 | 46.2 | 84.6

• Product Spacing (in) 1.11 | 1.14 | 1.81 | 3.33 | 95

• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²) 2.5 – 16 | 4 – 250 | 10 – 35 | 10 – 50 | 16 – 50 | 35 – 95 | 95 – 150

• Product Width (mm) .19 | .24 | 28.2 | 28.4 | 29 | 46 | 46.2 | 84.6

• Product Width (in) .995 | 1.002 | 1.14 | 1.623 | 1.63 | 1.81 | 2.984 | 6

• Wire Stripping Length - Main Circuit (mm) 15 | 18 | 28 | 35

• Wire Stripping Length - Main Circuit (in) .59 | .591 | .709 | 1.1 | 1.102 | 1.38

• Product Depth (mm) 46 | 50.2 | 50.7 | 52.3 | 60

• Product Depth (in) 1.771 | 1.788 | 1.81 | 1.845 | 2 | 2.116 | 2.36

• Wire Stripping Length - Output 2  11 mm [ .43 in ]

• Product Length (mm) 250

• Output 2 Capacity - 1 Insulated Ferrule (mm²) 2.5 – 16

• Output 1 Capacity - 1 Insulated Ferrule (AWG) 4 – 0 | 14 – 4 | 14 – 10 | 14 – 6

• Wire Stripping Length - Output 3  11 mm [ .43 in ]

• Output 2 Capacity - 1 Rigid Stranded Conductor (AWG) 14 – 6

• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (kcmil) 168 – 300

• Wire Size (kcmil) 250 | 300

• Output 3 Capacity - 1 Rigid Stranded Conductor (mm²) 2.5 – 10

• Output 1 Capacity - 1 Rigid Stranded Conductor (AWG) 4 – 250 | 10 – 6 | 14 – 6 | 14 – 2 | 14 – 10

• Tool Size - Output 2 (mm) 3 | 4 | 5.5 | 11 | 28

• Tool Size - Output 2 (in) .157 | .19 | .217 | .43 | 1.1

• Wire Stripping Length - Output 1 (mm) 11 | 28

• Wire Stripping Length - Output 1 (in) .43 | 1.1

• Output 3 Capacity - 1 Insulated Ferrule (mm²) 2.5 – 10

• Output 2 Capacity - 1 Rigid Stranded Conductor (mm²) 2.5 – 16

• Hole Diameter - Output 3 (mm) 5.7

• Hole Diameter - Output 3 (in) .22 | .224

• Output 1 Capacity - 1 Rigid Stranded Conductor (mm²) 2.5 – 35 | 2.5 – 6 | 2.5 – 16 | 6 – 16 | 25 – 120

• Output 2 Capacity - 1 Insulated Ferrule (AWG) 14 – 6

• Main Circuit Capacity - Flexible Bar (mm) 2.5 – 16 | 3 x 9 x 0.8 | 6 x 15.5 x 0.8 | 10 x 24 x 1 | 25 – 120

• Main Circuit Capacity - Flexible Bar (in) 4 – 250 | 14 – 6

• Main Circuit Capacity - Solid Bar (mm) 2x 20 x 5 | 12 x 4

• Installation Temperature Range  -5 – 40 °C [ 23 – 104 °F ]

• Operating Temperature Range  -55 – 110 °C [ -67 – 230 °F ]

• UL Flammability Rating  UL 94V-0

• IP Rating  IP10 | IP20

• Tool - Output 2  Allen Key | Flat Screwdriver | Positive Drive Flat Screwdriver

• Tool - Output 1  Allen Key | Flat Screwdriver

• Tool - Main Circuit  Allen Key | Flat Screwdriver

• Tool - Output 3  Allen Key | Flat Screwdriver
