185904-1

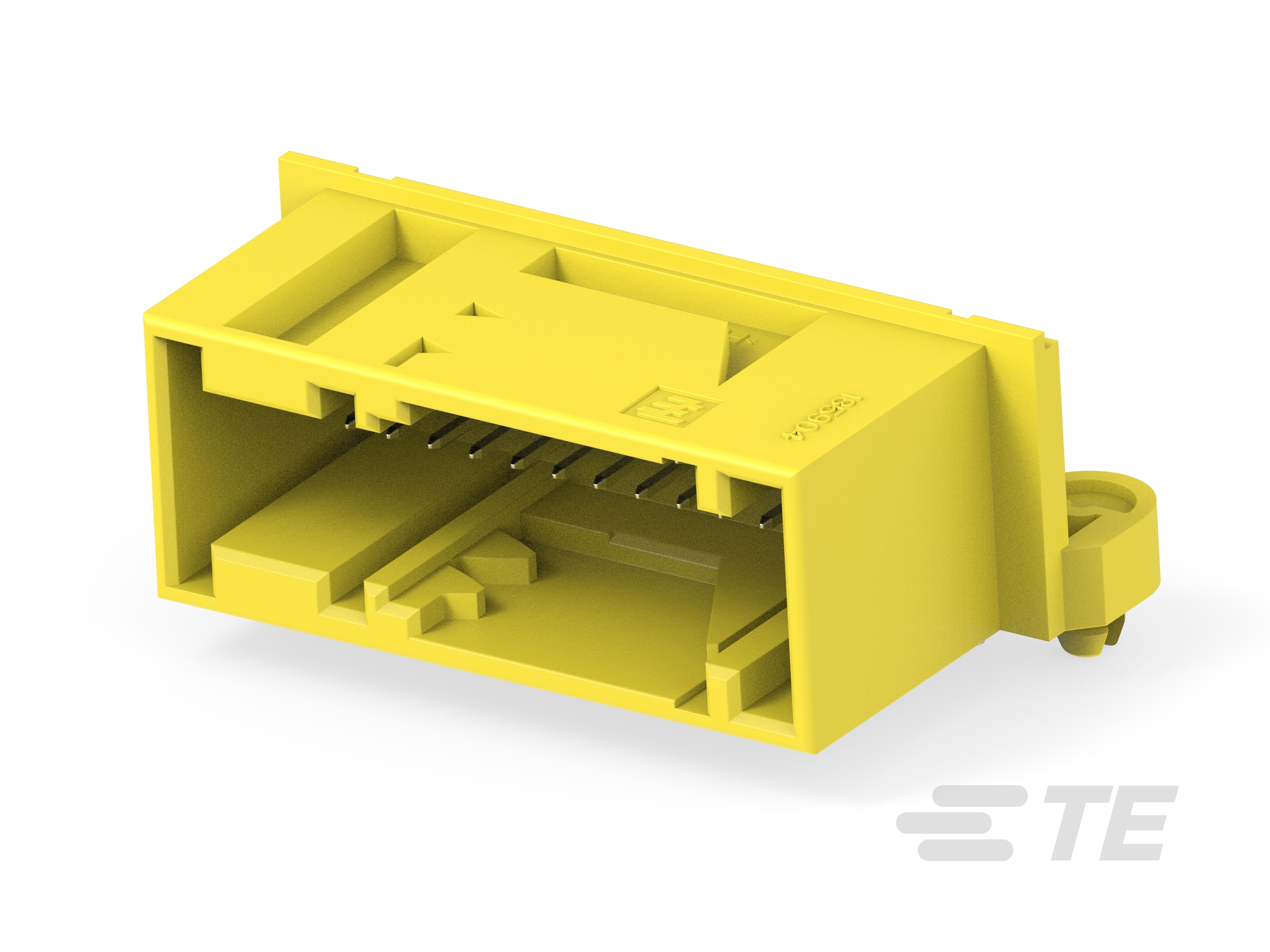

Horizontal, Wire-to-Board, 26 Position, 2 Rows, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, 7.5A Contact Current Rating (Max), Signal
185904-1
Horizontal, Wire-to-Board, 26 Position, 2 Rows, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, 7.5A Contact Current Rating (Max), Signal
-
- MQS
- TE Internal #: 185904-1
- TE Internal Description: 26pos MQS .63 header 90deg
- All Signal Header (240)
-
PCB Mount Orientation : Horizontal
-
Termination Method to PCB : Through Hole - Solder
-
Sealable : No
-
Connector & Contact Terminates To : Printed Circuit Board
-
Contact Current Rating (Max) (A): 7.5
Documents
Product Drawings
- 26W MQS RIGHT ANGLE HEADER WITH BOARD-LOCKS (REVERSED INTERFACE VERSION) EMBASE COUDEE 26V MQS AVEC BOARD-LOCKS ENG_CD_185904_F.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_185904-1_O.pdf 3D
- Customer View Model ENG_CVM_CVM_185904-1_O.2d_dxf.zip English
- ENG_CVM_CVM_185904-1_O.3d_igs.zip English
- ENG_CVM_CVM_185904-1_O.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-15140_E.pdf English
