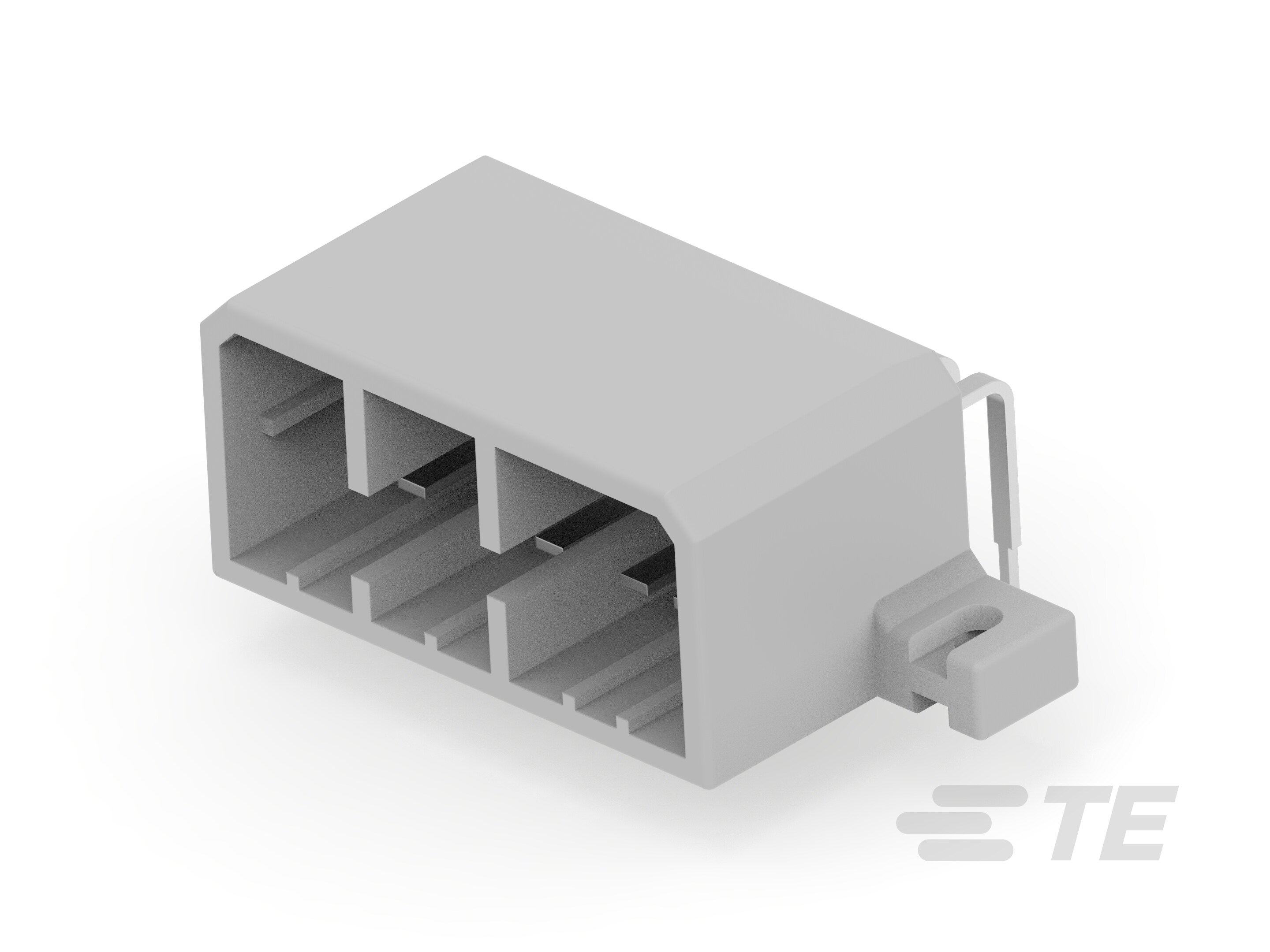

Name: 070 MLC CAP ASS'Y12P
Brand: AMP

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector Shape : Rectangular
Header Type : Fully Shrouded
Mixed & Hybrid Header : No
Connector Product Type : Connector Assembly
Connector System : Wire-to-Board
Sealable : No
Connector & Contact Terminates To : Printed Circuit Board

Configuration Features

Number of Sections : 1
Number of Signal Positions : 12
PCB Mount Orientation : Horizontal
Number of Positions : 12
Number of Rows : 2

Electrical Characteristics

Nominal Voltage Architecture (V): 12
Voltage Rating (Max) (VDC): 12
Operating Voltage (VDC): 12

Body Features

Primary Product Color : Gray

Contact Features

Contact Type : Tab
Mating Tab Thickness : .64 mm [ .025 in ]
Mating Tab Width : 1.8 mm [ .071 in ]
Contact Mating Area Plating Material : Tin (Sn)

Termination Features

Termination Method to PCB : Through Hole - Solder

Mechanical Attachment

PCB Mount Alignment : Without
Mating Alignment : With
Mounting Holes : With
PCB Mount Retention : Without
Mating Retention Type : Locking Interface
Panel Mount Feature : Without

Housing Features

Centerline (Pitch) : 3.5 mm [ .138 in ]

Dimensions

Profile Height from PCB : 15.8 mm [ .622 in ]
Connector Length : 24.92 mm [ .981 in ]
PCB Thickness (Recommended) : 1.6 mm [ .063 in ]
Connector Width : 46.3 mm [ 1.823 in ]

Usage Conditions

Operating Temperature (Max) (°C): 65 | 70 | 75 | 80 | 85 | 90 | 100 | 105
Operating Temperature (Max) (°F): 212
Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

Shielded : No
Circuit Application : Signal

Packaging Features

Packaging Method : Tube
Packaging Quantity : 60

Other

Interface Number : 173851

173858-6

Horizontal, Wire-to-Board, 12 Position, 2 Rows, 3.5mm [.138in] Centerline, Tin (Sn), Printed Circuit Board, Signal, Gray, Multilock Connector System

173858-6

Horizontal, Wire-to-Board, 12 Position, 2 Rows, 3.5mm [.138in] Centerline, Tin (Sn), Printed Circuit Board, Signal, Gray, Multilock Connector System

PCB Mount Orientation : Horizontal

Connector System : Wire-to-Board

Number of Positions : 12

Number of Rows : 2

Centerline (Pitch) : 3.5 mm [ .138 in ]
