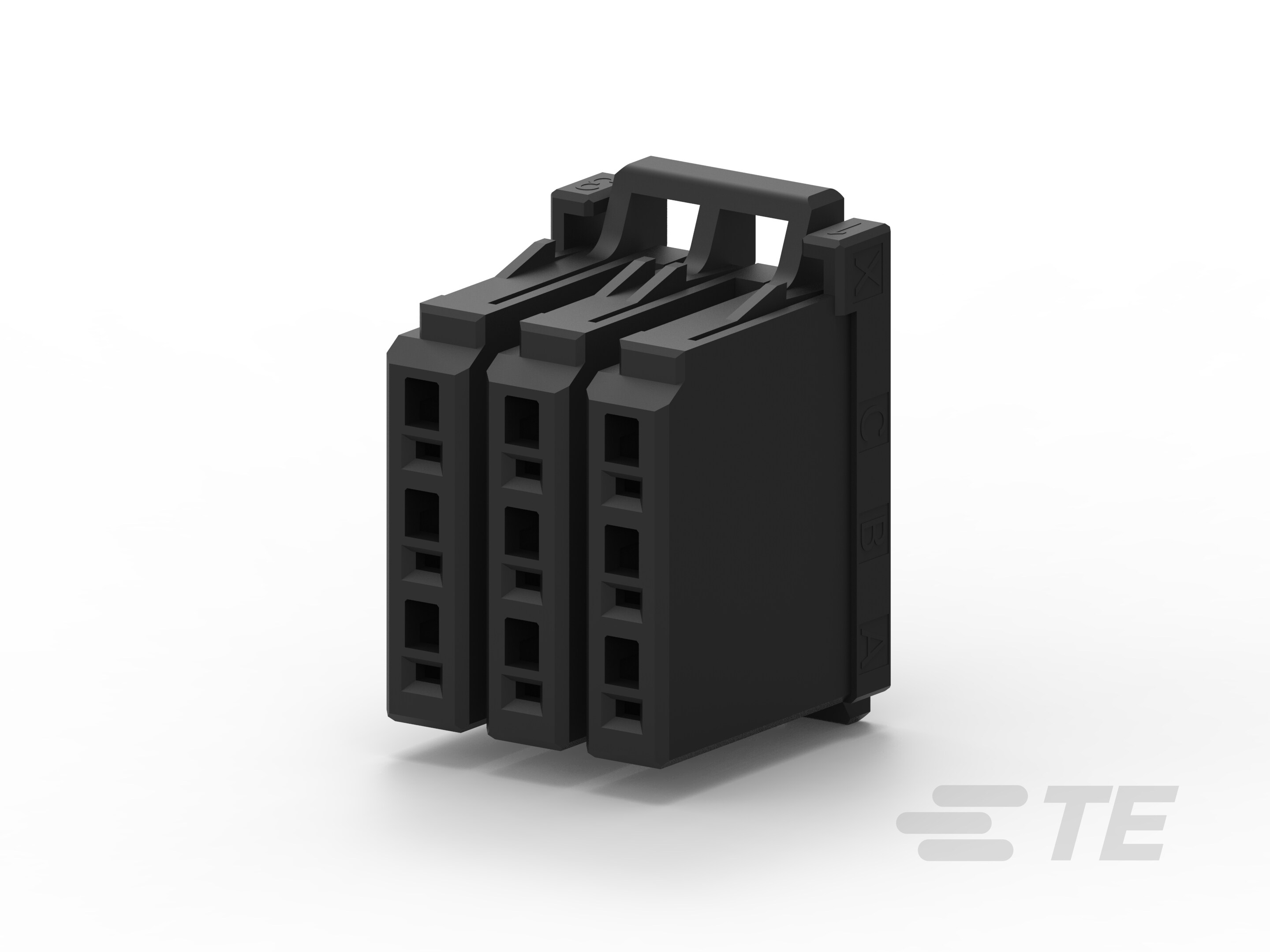

1-2069029-3
Housing, Receptacle, Crimp, Wire-to-Board, 9 Position, Dynamic 1000 Series, Rectangular Wire & Cable Connectors & Housings
1-2069029-3
Housing, Receptacle, Crimp, Wire-to-Board, 9 Position, Dynamic 1000 Series, Rectangular Wire & Cable Connectors & Housings
-
- Dynamic Series
- Dynamic 1000 Series
- TE Internal #: 1-2069029-3
- TE Internal Description: DYNAMIC 1500T REC HSG 9P X BLACK
- All DYNAMIC 1500T REC AND TAB HSG (8)
-
Connector Product Type : Housing
-
Connector & Housing Type : Receptacle
-
Mating Retention : With
-
Termination Method to Wire & Cable : Crimp
-
Connector System : Wire-to-Board
Documents
Product Drawings
- DYNAMIC D1500T 3.5mmPITCH REC HSG 6-12POS Japanese
- DYNAMIC D1500T 3.5mmPITCH REC HSG 6-12POS JPN_CD_2069029_A.pdf Japanese
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2069029-3_J_c-1-2069029-3-j-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2069029-3_J_c-1-2069029-3-j.2d_dxf.zip English
- ENG_CVM_CVM_1-2069029-3_J_c-1-2069029-3-j.3d_igs.zip English
- ENG_CVM_CVM_1-2069029-3_J_c-1-2069029-3-j.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-5377_L.pdf English
- Product Specification ENG_SS_108-78268_L.pdf English
- ENG_SS_108-78298_F.pdf English
Instruction Sheets
- Instruction Sheet (non U.S.) ENG_SS_411-78241_D2.pdf English
